9. OPERATION
Up-Down airflow direction and swing (on some models)

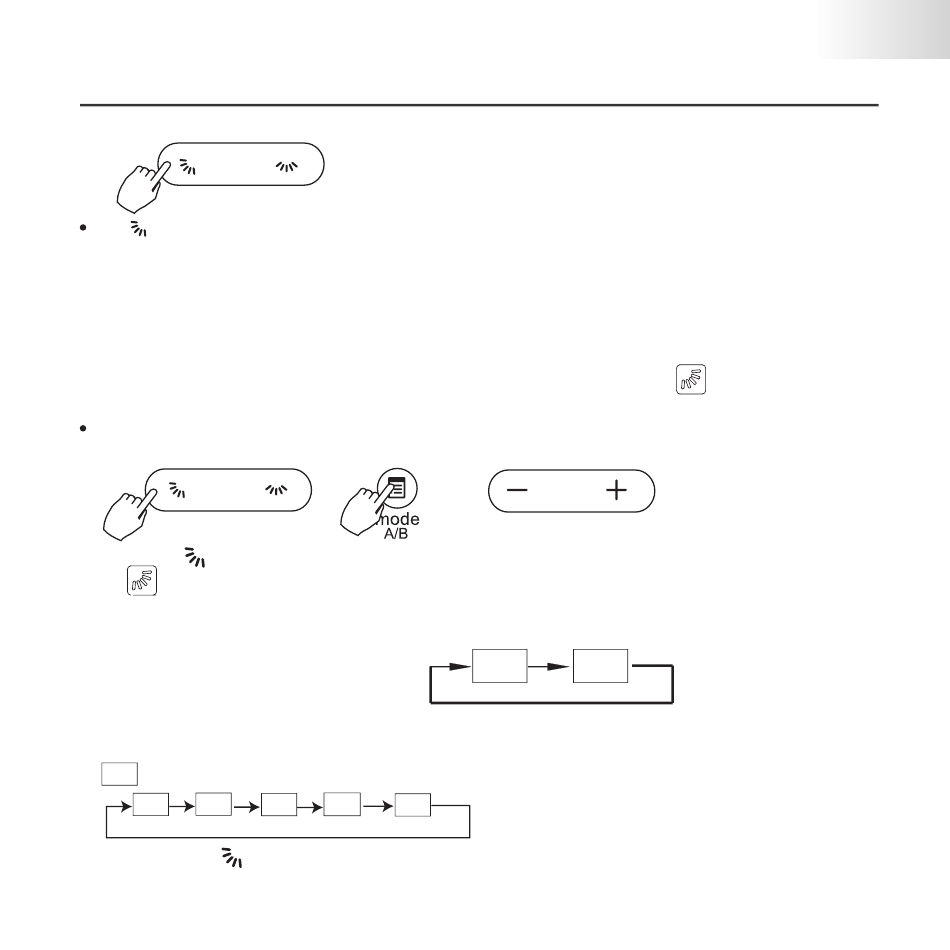

Use button to adjust the Up-down airflow direction.
1.When press the button once and quickly ,the Up-down airflow direction setting
feature of the louver is activated.The moving angle of the louver is 6° for each
press.Keep pressing the button to move the louver to the desired position.
2.If press the button long,the auto Up-down swing feature of the louver is activated.
The louver would swing automatically.Press it again to stop.
When the auto Up-down swing feature of the louver is activated,the
(Not applicable to all the models)
The operation can refer to the following instructions for the unit with four Up-down
louvers can be operated individually.
1.Press the button to activate the Up-down adjusting louver function.
The mark will flash.(Not applicable to all the models)
2. Push the Mode(A/B) button to select Unit A or Unit B, the wire controller select in a
sequence that goes from(this step do not need to perform if the wire controller is
connected with one unit only):
3.Pressing the button "+" and "-" can select the movement of four louvers.Each time
you push the button,the wire controller select in a sequence that goes from:(the icon
means the four louvers move at the same time.)
-0
-0 -1
4. And then use button to adjust the Up-down airflow direction of the selected louver.
-2 -3 -4
A B
