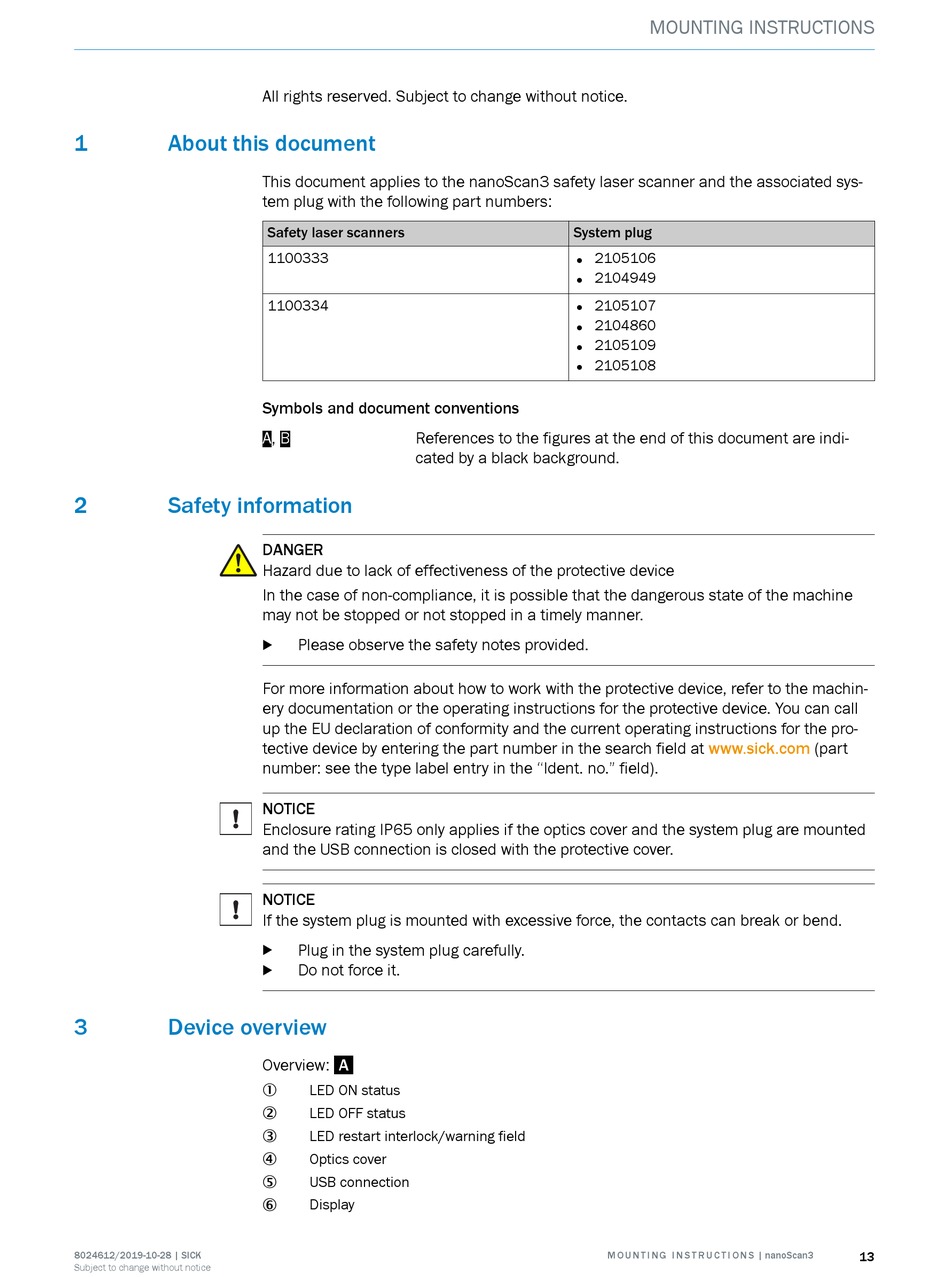

About This Document; Safety Information; Device Overview - SICK nanoScan3 Montageanleitung

1

About this document

2

Safety information

3

Device overview

8024612/2019-10-28 | SICK
Subject to change without notice
All rights reserved. Subject to change without notice.
This document applies to the nanoScan3 safety laser scanner and the associated sys‐
tem plug with the following part numbers:
Safety laser scanners
1100333
1100334
Symbols and document conventions
A, B References to the figures at the end of this document are indi‐
cated by a black background.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Please observe the safety notes provided.
b
For more information about how to work with the protective device, refer to the machin‐
ery documentation or the operating instructions for the protective device. You can call
up the EU declaration of conformity and the current operating instructions for the pro‐
tective device by entering the part number in the search field at
number: see the type label entry in the "Ident. no." field).
NOTICE
Enclosure rating IP65 only applies if the optics cover and the system plug are mounted
and the USB connection is closed with the protective cover.
NOTICE
If the system plug is mounted with excessive force, the contacts can break or bend.
Plug in the system plug carefully.
b
Do not force it.
b
Overview: A
LED ON status
1
LED OFF status
2
LED restart interlock/warning field
3
Optics cover
4
USB connection
5
Display
6
MOUNTING INSTRUCTIONS
System plug
• 2105106
• 2104949
• 2105107
• 2104860
•
2105109
•
2105108
www.sick.com
M O U N T I N G I N S T R U C T I O N S | nanoScan3
(part
13
