Function
1 Modes
2 "AUTO" icon
3 "MANUAL" icon
4 "CLEAN" icon
A
5 "OFF" icon
6 Program Indicator
7 Numeric display
B
8 Error icon
Vacuum percentage
9
icon
10 Seconds icon
11 Minutes icon
12 Status
Extra vacuum
13
indicator
14 Vacuum icon
15 Gas icon
16 Sealing icon
17 Air icon
C
18 Repeat icon
Centre button
19
indicator
20 Lid closing icon
21 Lid opening icon
Air entry mode
22
indicator
23 "Ready" indicator
Labels for 3 operational modes: Automatic, Manual and Self-Cleaning.
Automatic operating mode indicator.
Manual operating mode indicator.
Self-cleaning operating mode indicator.
Vacuum packer shut-down indicator.
Indicates that the program is in Manual operating mode. The numerical display shows the
program number selected.
Displays whole numbers from 0 to 199 or numbers with a decimal point from 0.0 to 99.9.
This display shows all the necessary numerical parameters during the vacuum cycle or the
vacuum packer configuration; from the vacuum level as a percentage and sealing and self-
cleaning times, etc., to the error numbers and manual mode program selection.
Indicates that the central numeric display is showing an error value.
Icon that indicates that the centre numeric display is showing a vacuum percentage.
Icon that indicates that the centre numeric display is showing a value in seconds.
Icon that indicates that the centre numeric display is showing a value in minutes.
Labels for the 5 operating cycle states of the vacuum packer: Vacuum, Gas, Sealing, Air and
Repeat.
Indicates the Extra Vacuum status, whereby the vacuum packer maintains the 100%
vacuum for a certain amount of time.
Vacuum status indicator. Indicates that the vacuum is being created in the chamber.
(Motor in operation)
Gas status indicator. Indicates that gas is being injected into the chamber.
Sealing status indicator. Indicates that the vacuum bag is being sealed.
Air status indicator. Indicates that atmospheric pressure is being restored in the chamber.
Repeat status indicator. Indicates the repetition number of the vacuum and recovery cycle
in manual mode. If a multi-cycle mode is configured, the numeric display located below the
icon indicates the number of the current cycle and it counts backwards.
Indicates that pressing the centre button will cause a change, skip or cancellation to the
current process in operation.
Indicates that the lid can be closed to initiate operation
Indicates that the lid can be opened.
Indicates the air entry mode selected: Soft (gradual entry of air), Fast (normal entry of air)
and Stop (locking of the vacuum percentage in the chamber for doing marinades, etc.)
Indicates whether or not the equipment is ready to start a new vacuum packing cycle. If
this icon is flashing, the appliance will be ready once the vacuum packer lid is opened.

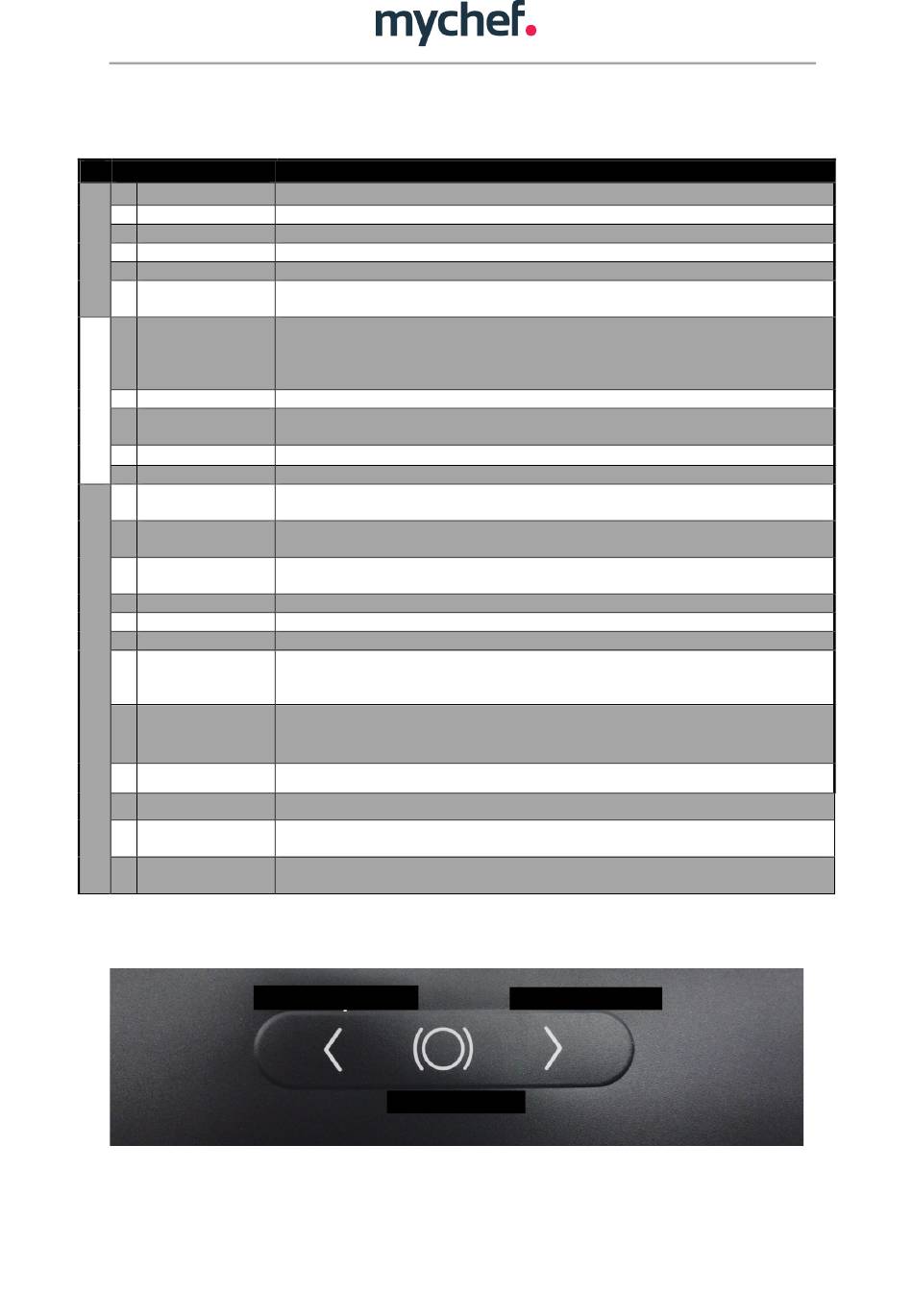

Table 1. Indicators, displays and control panel buttons
Left Button
Centre Button
Figure 2. Buttons for navigating the screen
Description
Right Button
8
