Fixscreen
4
Now snap the removable
profile onto the intermediate
profile of the coupling side
guiding channel.

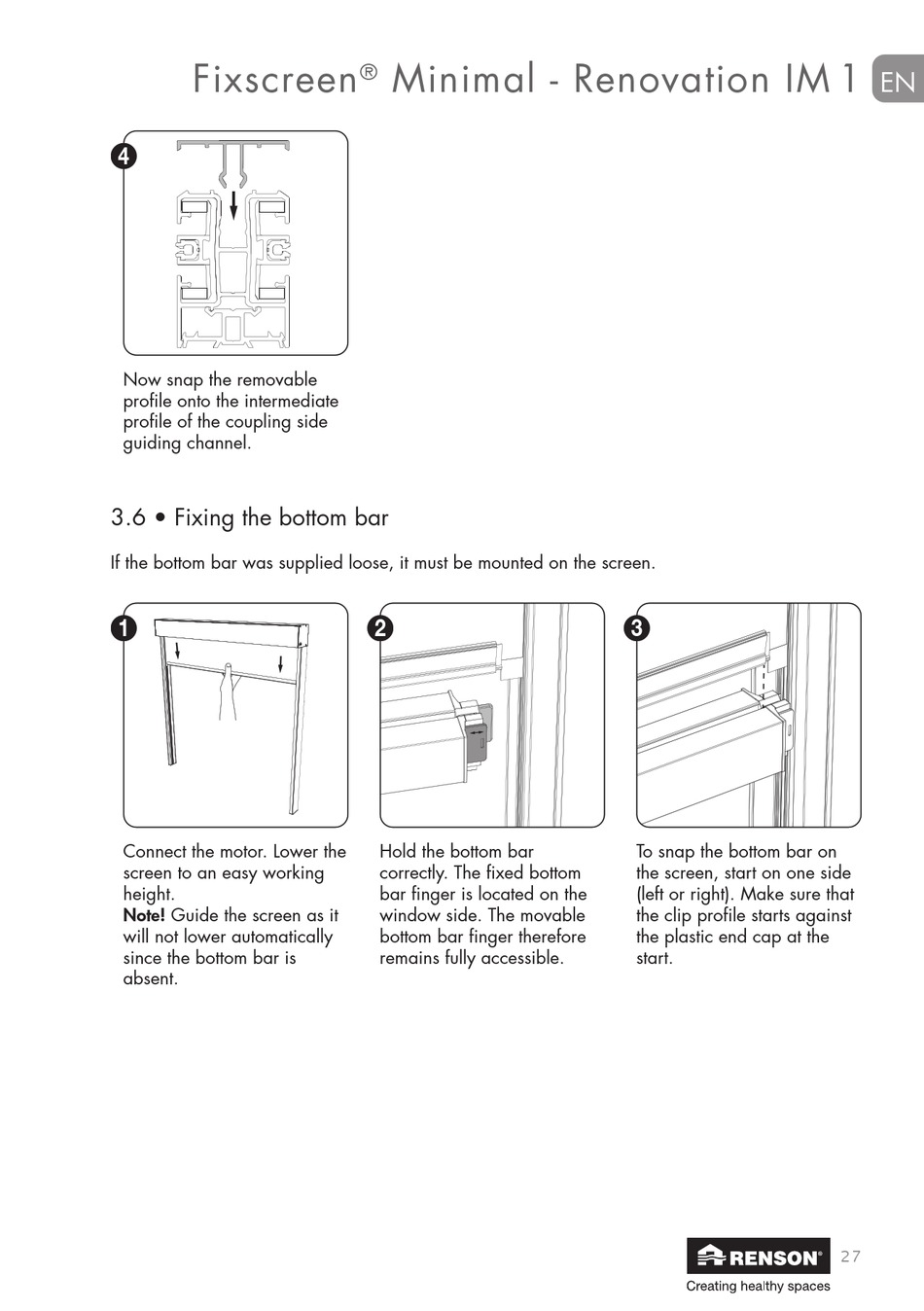

3.6 • Fixing the bottom bar
If the bottom bar was supplied loose, it must be mounted on the screen.
1
Connect the motor. Lower the
screen to an easy working
height.
Note! Guide the screen as it
will not lower automatically
since the bottom bar is
absent.
Minimal - Renovation IM 1
®
2
Hold the bottom bar
correctly. The fixed bottom
bar finger is located on the
window side. The movable
bottom bar finger therefore
remains fully accessible.
3
To snap the bottom bar on
the screen, start on one side
(left or right). Make sure that
the clip profile starts against
the plastic end cap at the
start.
en
27
