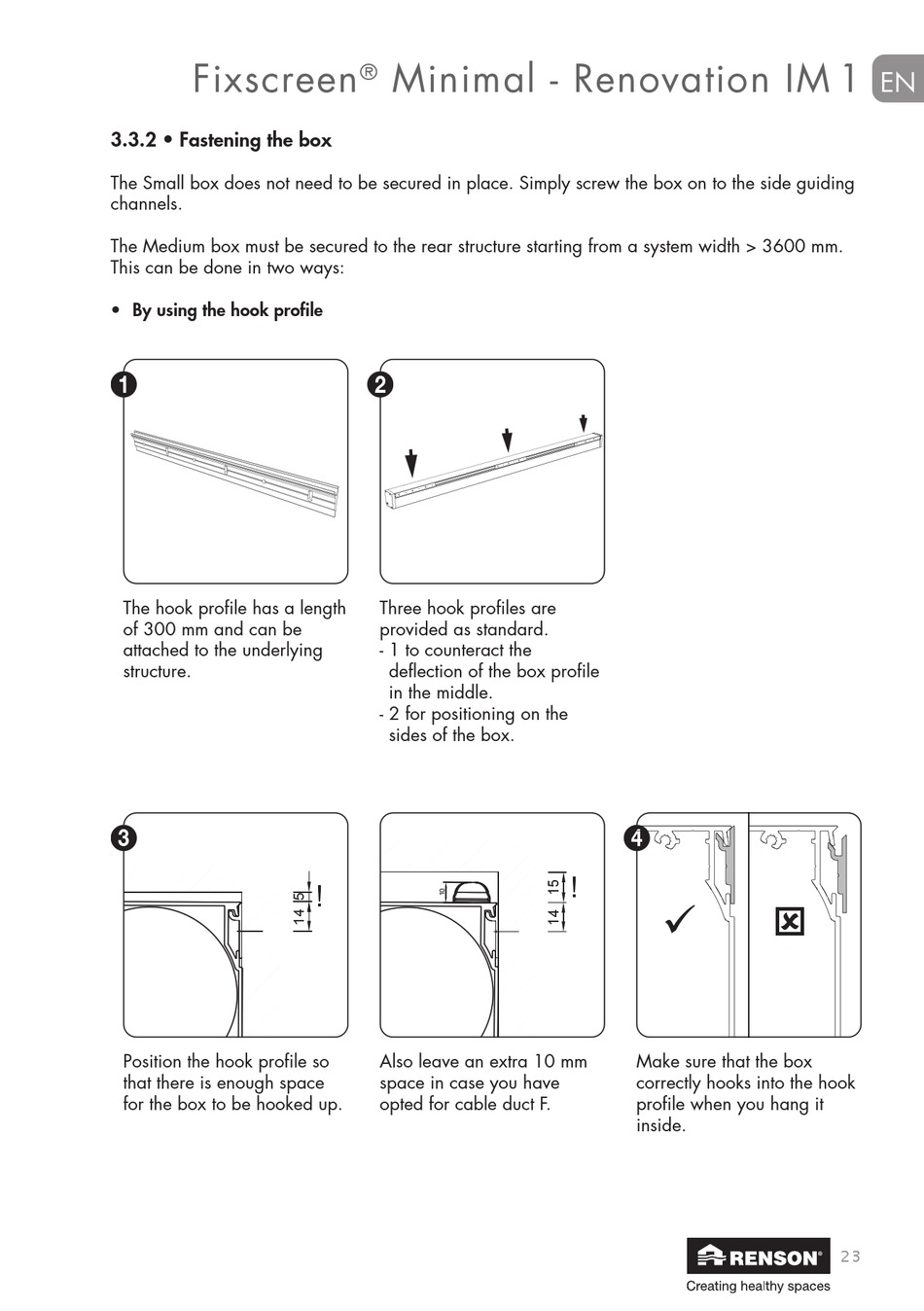

3.3.2 • Fastening the box
The Small box does not need to be secured in place. Simply screw the box on to the side guiding
channels.
The Medium box must be secured to the rear structure starting from a system width > 3600 mm.
This can be done in two ways:
• By using the hook profile
1
The hook profile has a length
of 300 mm and can be
attached to the underlying
structure.
3
Position the hook profile so
that there is enough space
for the box to be hooked up.
Minimal - Renovation IM 1
®
2
Three hook profiles are
provided as standard.
- 1 to counteract the
deflection of the box profile
in the middle.
- 2 for positioning on the
sides of the box.
!
Also leave an extra 10 mm
space in case you have
opted for cable duct F.
F
10
10
20 40
41
4
!

10
10
Make sure that the box
correctly hooks into the hook
profile when you hang it
inside.
