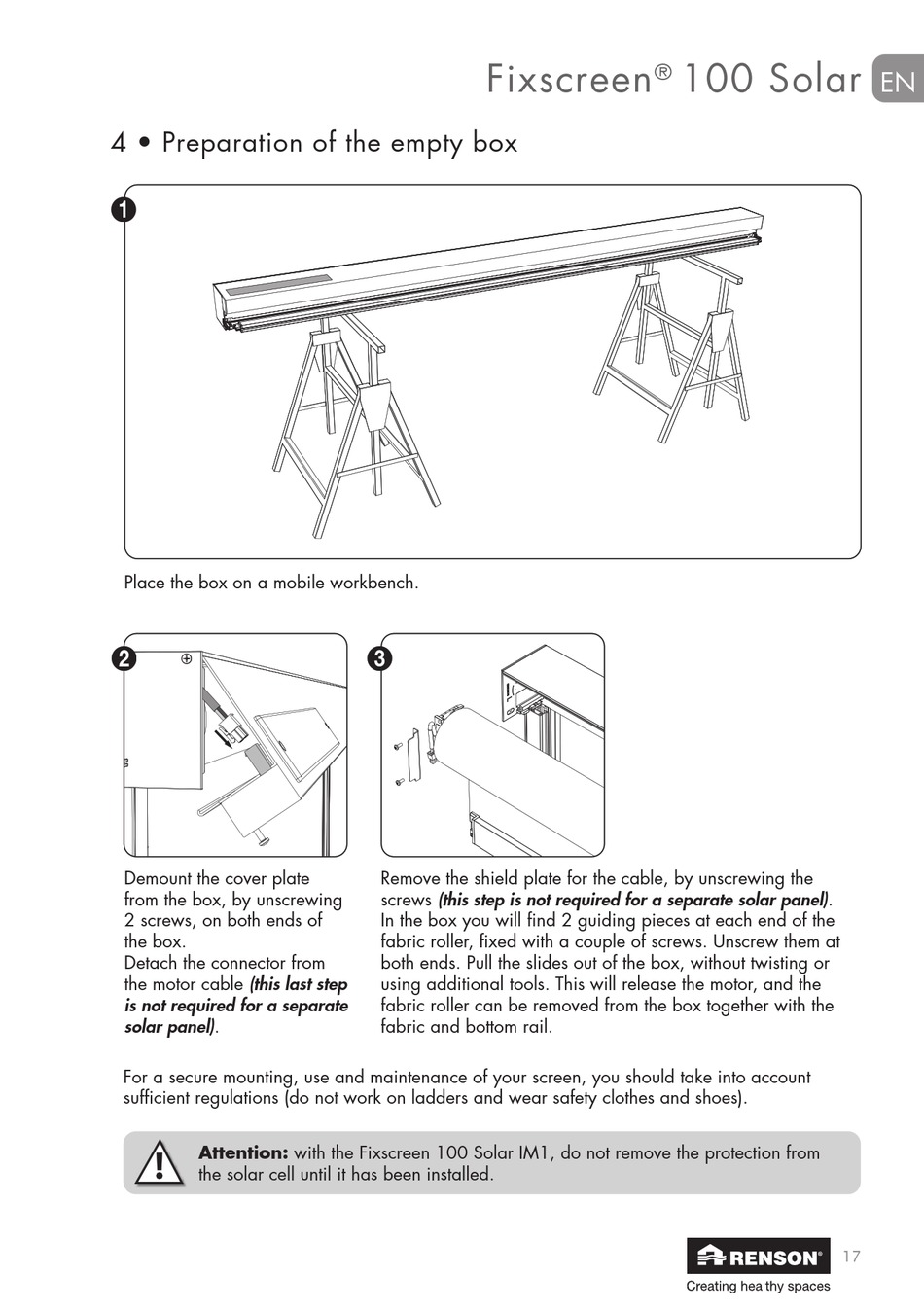

4 • Preparation of the empty box
1
Place the box on a mobile workbench.
2
Demount the cover plate
from the box, by unscrewing
2 screws, on both ends of
the box.
Detach the connector from
the motor cable (this last step
is not required for a separate
solar panel).
For a secure mounting, use and maintenance of your screen, you should take into account
sufficient regulations (do not work on ladders and wear safety clothes and shoes).
Attention: with the Fixscreen 100 Solar IM1, do not remove the protection from
the solar cell until it has been installed.
Fixscreen
3
Remove the shield plate for the cable, by unscrewing the
screws (this step is not required for a separate solar panel).
In the box you will find 2 guiding pieces at each end of the
fabric roller, fixed with a couple of screws. Unscrew them at
both ends. Pull the slides out of the box, without twisting or
using additional tools. This will release the motor, and the
fabric roller can be removed from the box together with the
fabric and bottom rail.
100 Solar
®
