Fixscreen
1 • General
SAFETY
Ensure adequate compliance with safety regulations during work on site:
– use hydraulic platforms or aerial work platforms instead of ladders
– clearly mark off the area under/around the installation site
– wear suitable safety clothing and safety shoes
– accurate work is smoother, safer and ultimately faster
The Fixscreen Minimal consists of:
– Box S or M, including high quality screen, screen roller and motor
– One pair of side guiding channels for each single system
– One pair of side guiding channels and one coupling side guiding channel for each coupled
system
– An optional (or pre-assembled) weighted bottom bar that ensures the smooth guidance of the
screen
90

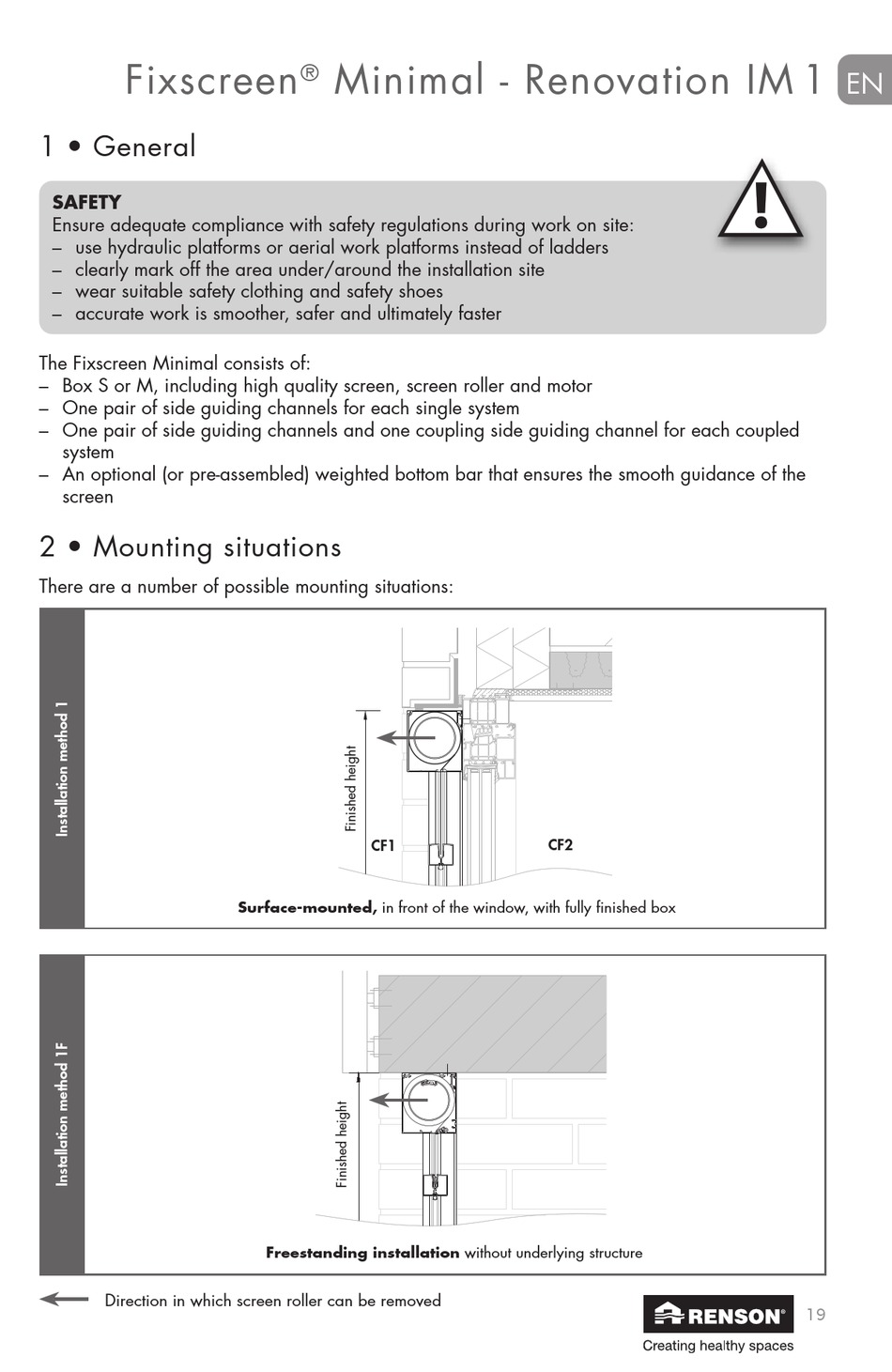

2 • Mounting situations
There are a number of possible mounting situations:
F
10
F
10
90
Direction in which screen roller can be removed
41
Minimal - Renovation IM 1
®
F
B
10
10
10 H
! B
10
10 H
Surface-mounted, in front of the window, with fully finished box
B
10
10
H
F
B
10
10
10 H
Freestanding installation without underlying structure
CF2
CF1
CF1
CF2
en
