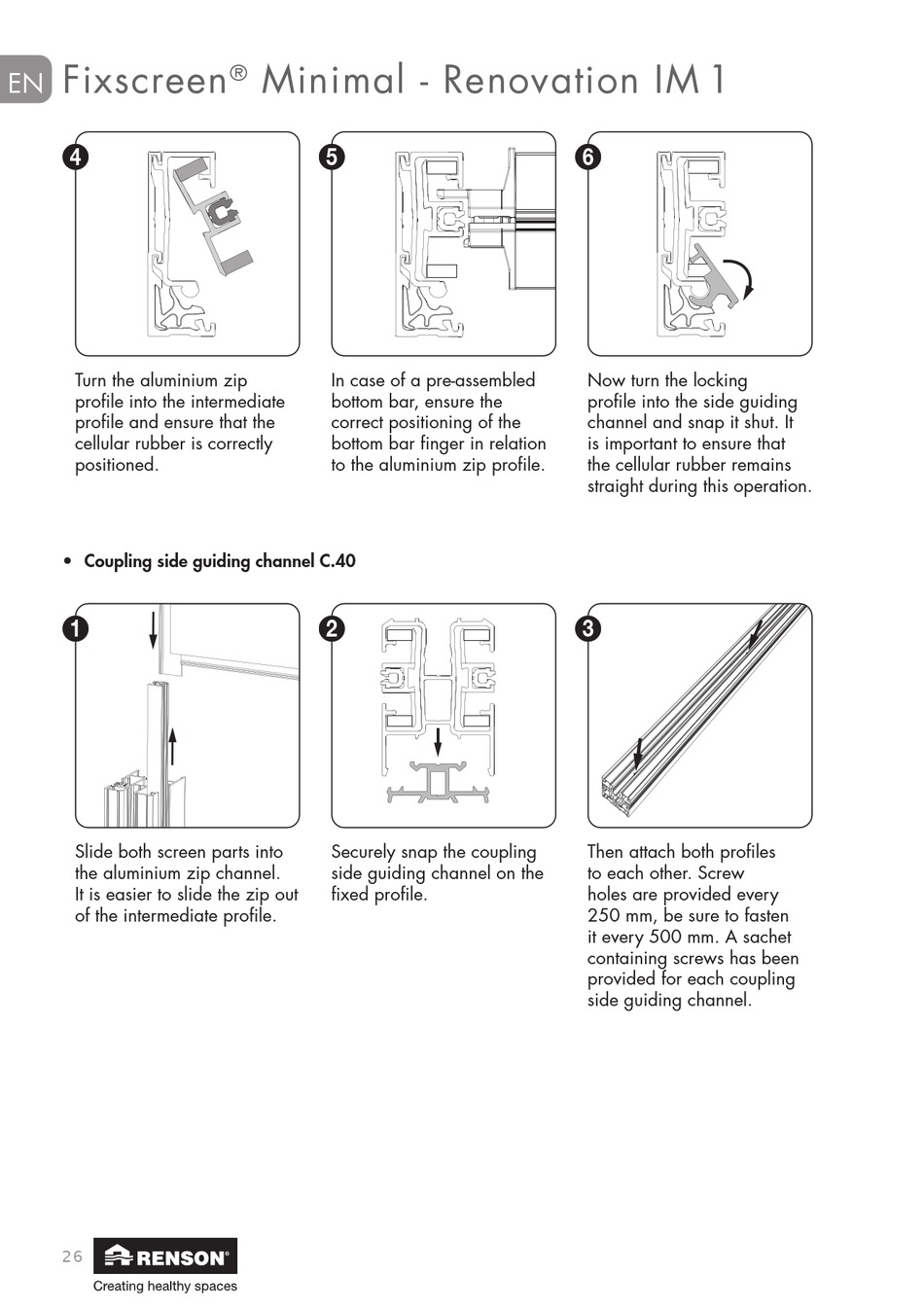

Renson Fixscreen Minimal Montageanleitung Seite 26

Fixscreen
en
4
Turn the aluminium zip
profile into the intermediate
profile and ensure that the
cellular rubber is correctly
positioned.
• Coupling side guiding channel C.40
1
Slide both screen parts into
the aluminium zip channel.
It is easier to slide the zip out
of the intermediate profile.
26
Minimal - Renovation IM 1
®
5
In case of a pre-assembled
bottom bar, ensure the
correct positioning of the
bottom bar finger in relation
to the aluminium zip profile.
2
Securely snap the coupling
side guiding channel on the
fixed profile.
6
Now turn the locking
profile into the side guiding
channel and snap it shut. It
is important to ensure that
the cellular rubber remains
straight during this operation.
3
Then attach both profiles
to each other. Screw
holes are provided every
250 mm, be sure to fasten
it every 500 mm. A sachet
containing screws has been
provided for each coupling
side guiding channel.
