Fixscreen

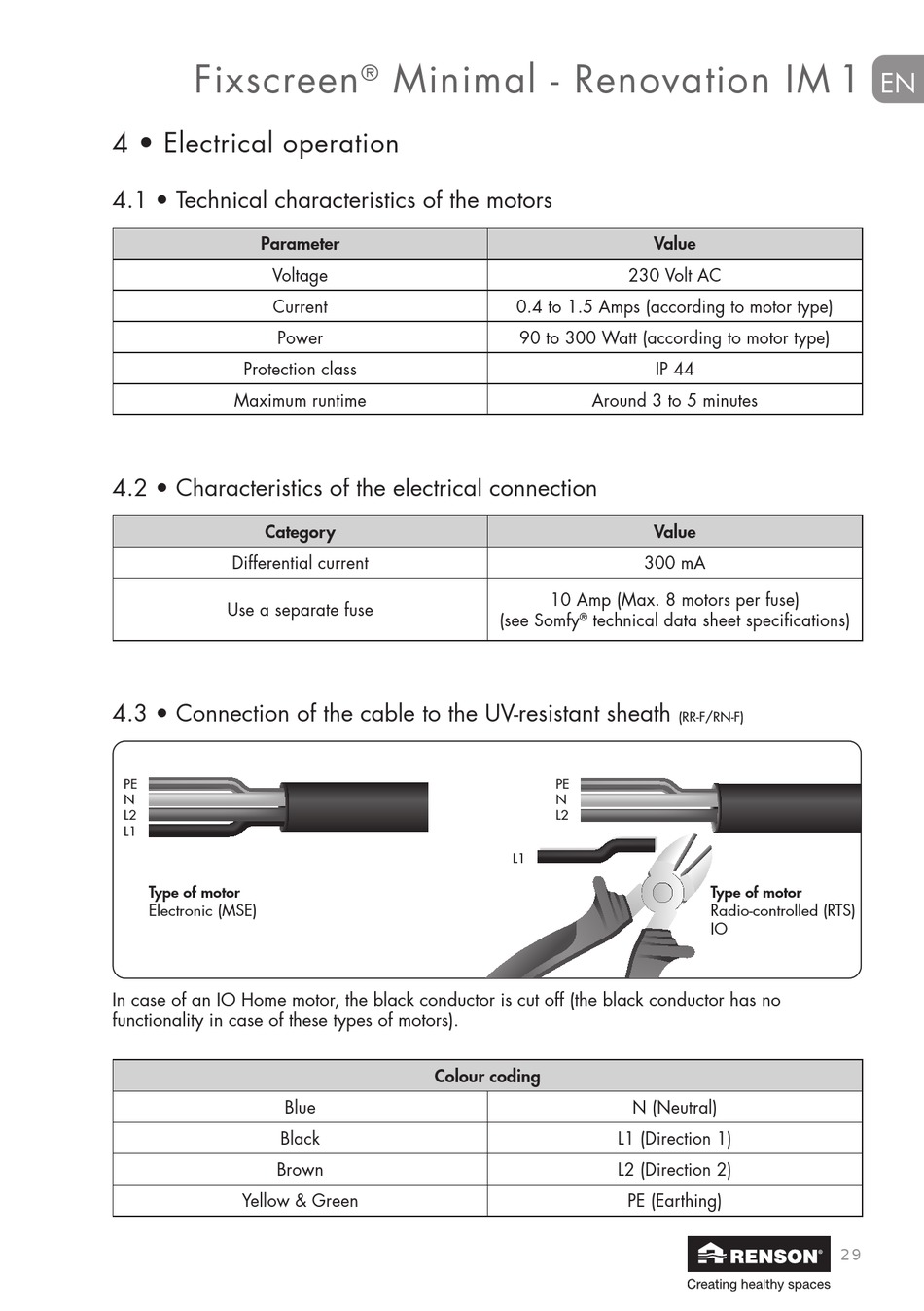

4 • Electrical operation
4.1 • Technical characteristics of the motors
Parameter
Voltage
Current
Power
Protection class
Maximum runtime
4.2 • Characteristics of the electrical connection
Category
Differential current
Use a separate fuse
4.3 • Connection of the cable to the UV-resistant sheath
PE
N
L2
L1
Type of motor
Electronic (MSE)
In case of an IO Home motor, the black conductor is cut off (the black conductor has no
functionality in case of these types of motors).
Blue
Black
Brown
Yellow & Green
Minimal - Renovation IM 1
®
0.4 to 1.5 Amps (according to motor type)
90 to 300 Watt (according to motor type)
(see Somfy
L1
Colour coding
Value
230 Volt AC
IP 44
Around 3 to 5 minutes
Value
300 mA
10 Amp (Max. 8 motors per fuse)
technical data sheet specifications)
®

(RR-F/RN-F)

PE
N
L2
Type of motor
Radio-controlled (RTS)
IO
N (Neutral)
L1 (Direction 1)
L2 (Direction 2)
PE (Earthing)
