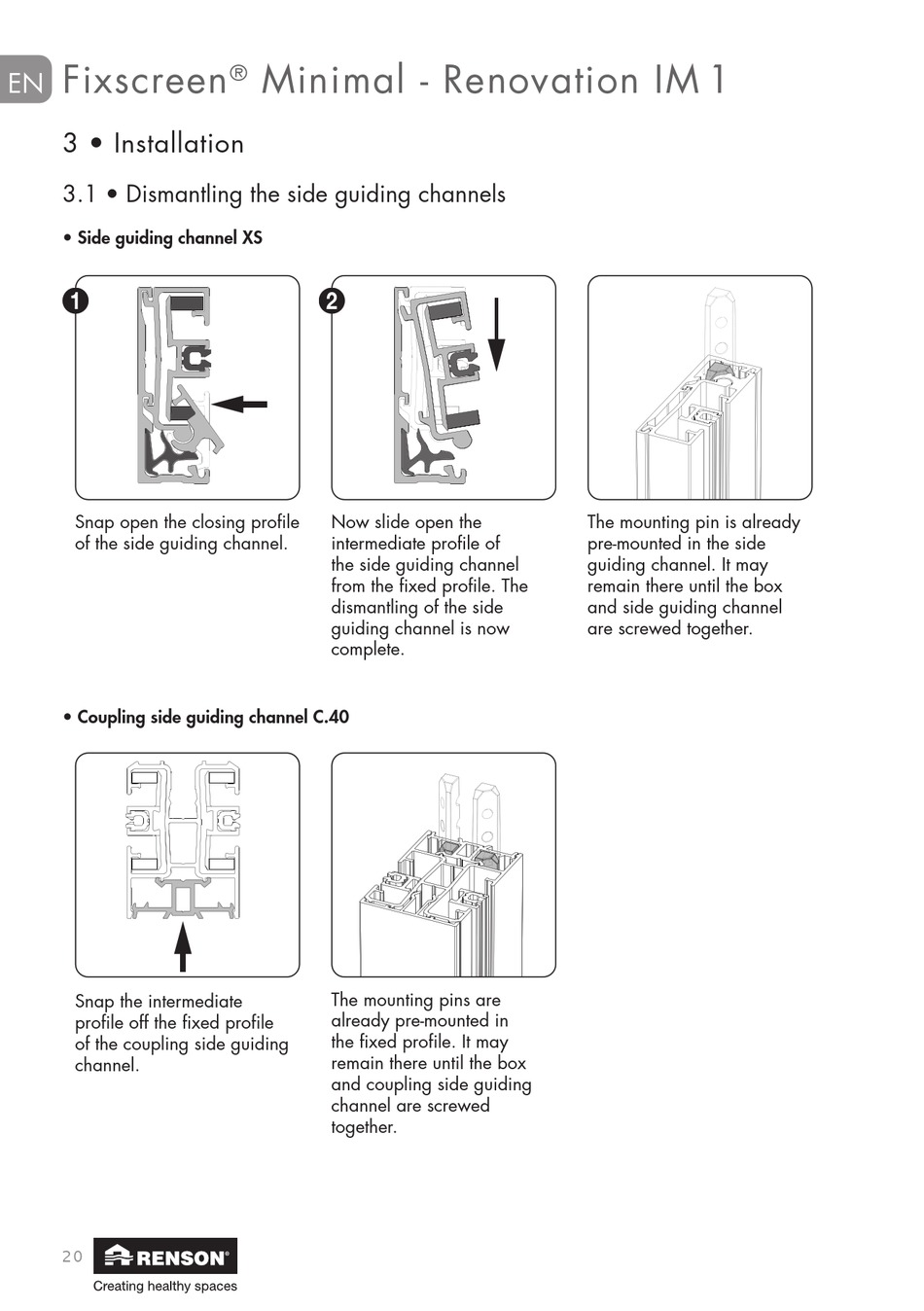

3 • Installation
3.1 • Dismantling the side guiding channels
• Side guiding channel XS
1
Snap open the closing profile
of the side guiding channel.
• Coupling side guiding channel C.40
Snap the intermediate
profile off the fixed profile
of the coupling side guiding
channel.
20
Minimal - Renovation IM 1
®
2
Now slide open the
intermediate profile of
the side guiding channel
from the fixed profile. The
dismantling of the side
guiding channel is now
complete.
The mounting pins are
already pre-mounted in
the fixed profile. It may
remain there until the box
and coupling side guiding
channel are screwed
together.
The mounting pin is already
pre-mounted in the side
guiding channel. It may
remain there until the box
and side guiding channel
are screwed together.
