Renson Fixscreen Minimal Montageanleitung Seite 28

Fixscreen
en
4

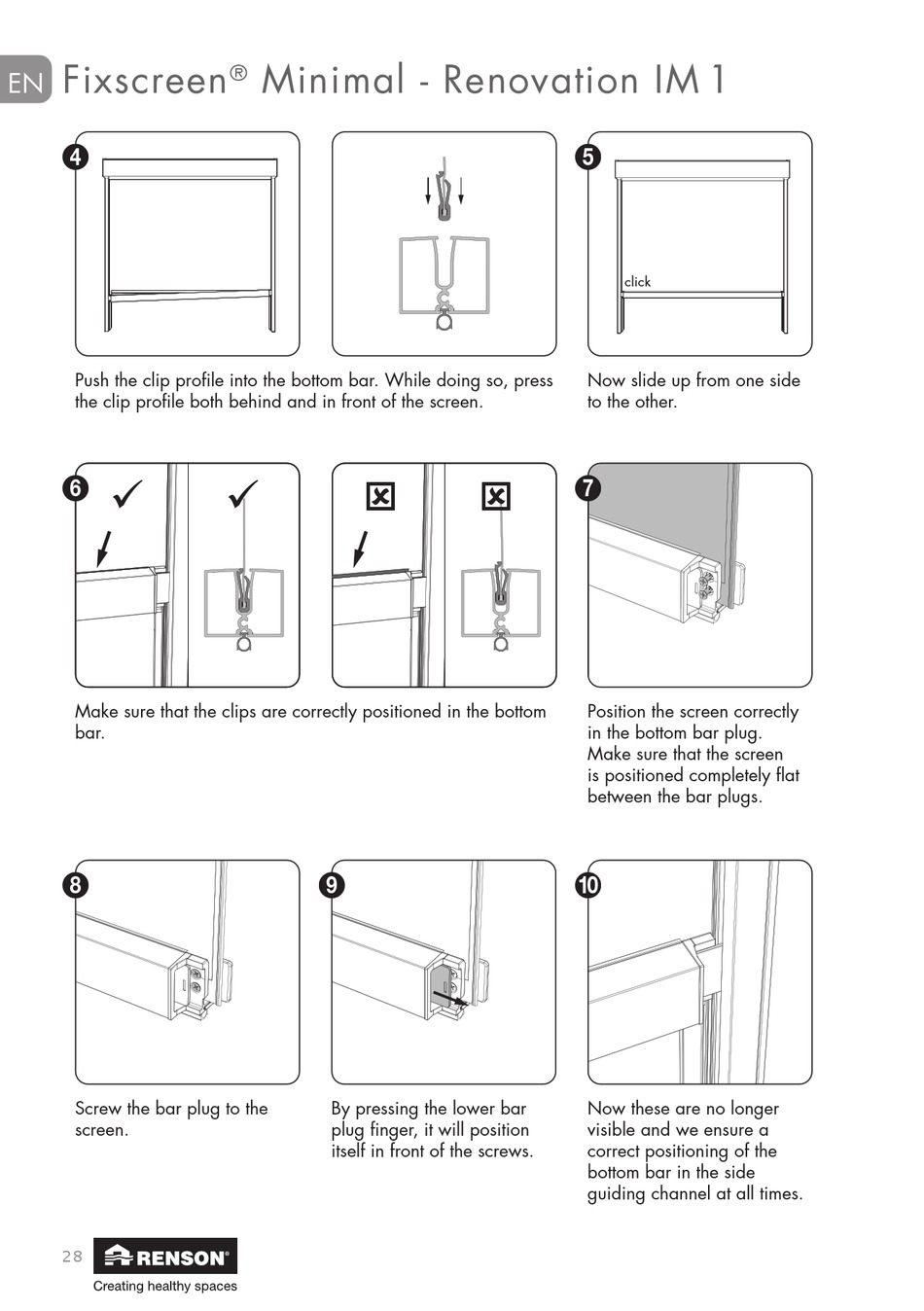

Push the clip profile into the bottom bar. While doing so, press
the clip profile both behind and in front of the screen.
6

Make sure that the clips are correctly positioned in the bottom
bar.
8
Screw the bar plug to the
screen.
28
Minimal - Renovation IM 1
®


9
By pressing the lower bar
plug finger, it will position
itself in front of the screws.
5
click
Now slide up from one side
to the other.
7

Position the screen correctly
in the bottom bar plug.
Make sure that the screen
is positioned completely flat
between the bar plugs.
10
Now these are no longer
visible and we ensure a
correct positioning of the
bottom bar in the side
guiding channel at all times.
