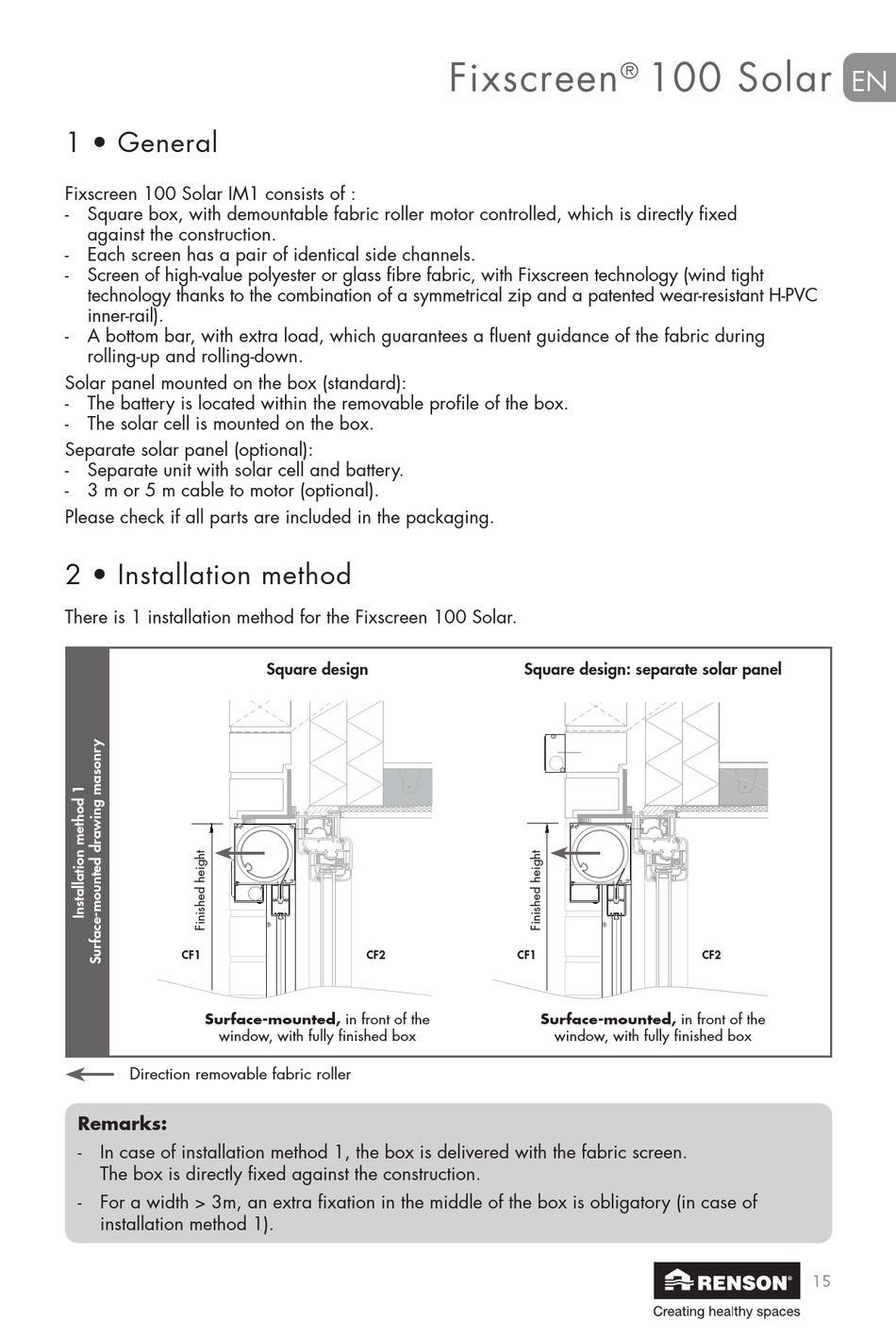

1 • General
Fixscreen 100 Solar IM1 consists of :
- Square box, with demountable fabric roller motor controlled, which is directly fixed
against the construction.
- Each screen has a pair of identical side channels.
- Screen of high-value polyester or glass fibre fabric, with Fixscreen technology (wind tight
technology thanks to the combination of a symmetrical zip and a patented wear-resistant H-PVC
inner-rail).
- A bottom bar, with extra load, which guarantees a fluent guidance of the fabric during
rolling-up and rolling-down.
Solar panel mounted on the box (standard):
- The battery is located within the removable profile of the box.
- The solar cell is mounted on the box.
Separate solar panel (optional):
- Separate unit with solar cell and battery.
- 3 m or 5 m cable to motor (optional).
Please check if all parts are included in the packaging.
2 • Installation method
There is 1 installation method for the Fixscreen 100 Solar.
470
35
CF1
CF1
30
Direction removable fabric roller
Remarks:
- In case of installation method 1, the box is delivered with the fabric screen.
The box is directly fixed against the construction.
- For a width > 3m, an extra fixation in the middle of the box is obligatory (in case of

installation method 1).

Square design
CF2
CF2
Surface-mounted, in front of the
window, with fully finished box
48
Fixscreen
®
Square design: separate solar panel
CF1
Surface-mounted, in front of the
window, with fully finished box
100 Solar
CF2
15
