1 Installation

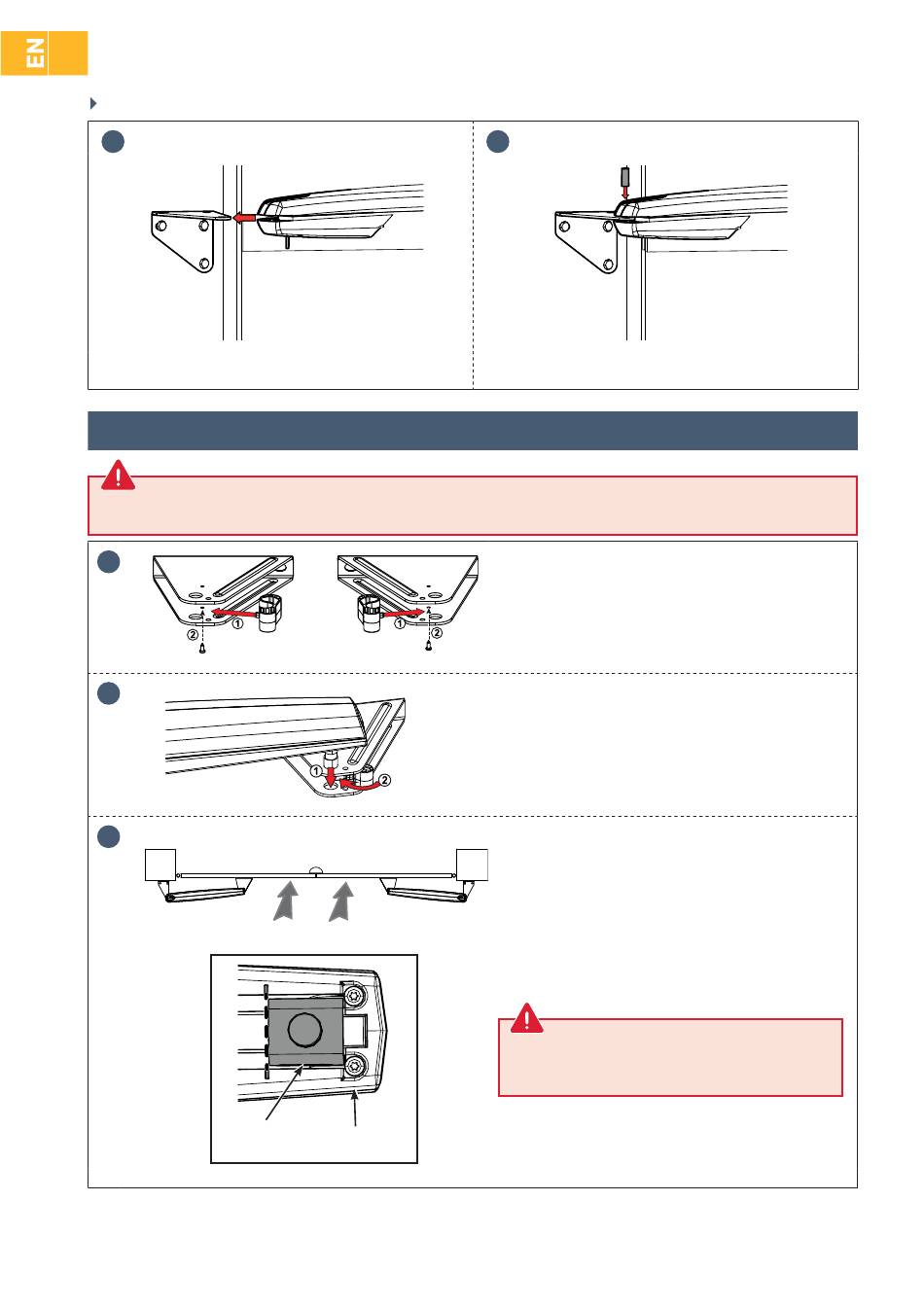

Fitting the cylinder onto the mounting bracket

1
Fit the cylinder onto the mounting bracket.

1.4 Fastening the gate leaf brackets

Never operate the cylinder before having finished mounting it on the gate leaf. If this happens, the internal cylinder could be incorrect
and malfunctions could occur.
1
2
3
15
EN - EXAVIA installation and operating guide - SOMFY
Cylinder
Cylinder knob
internal stop
2
Block it with the pin (j).
Fix the unlocking mechanism (h) onto the gate leaf mounting
bracket (e) using screw (i).
Fit the cylinder onto the leaf mounting bracket.
Clip the unlocking mechanism onto the cylinder catch to
secure it.
Close the gate.
In the closed position, the gate leaves must be pushed
firmly against the ground stop and the cylinder knob must
be positioned as shown in the figure opposite.
