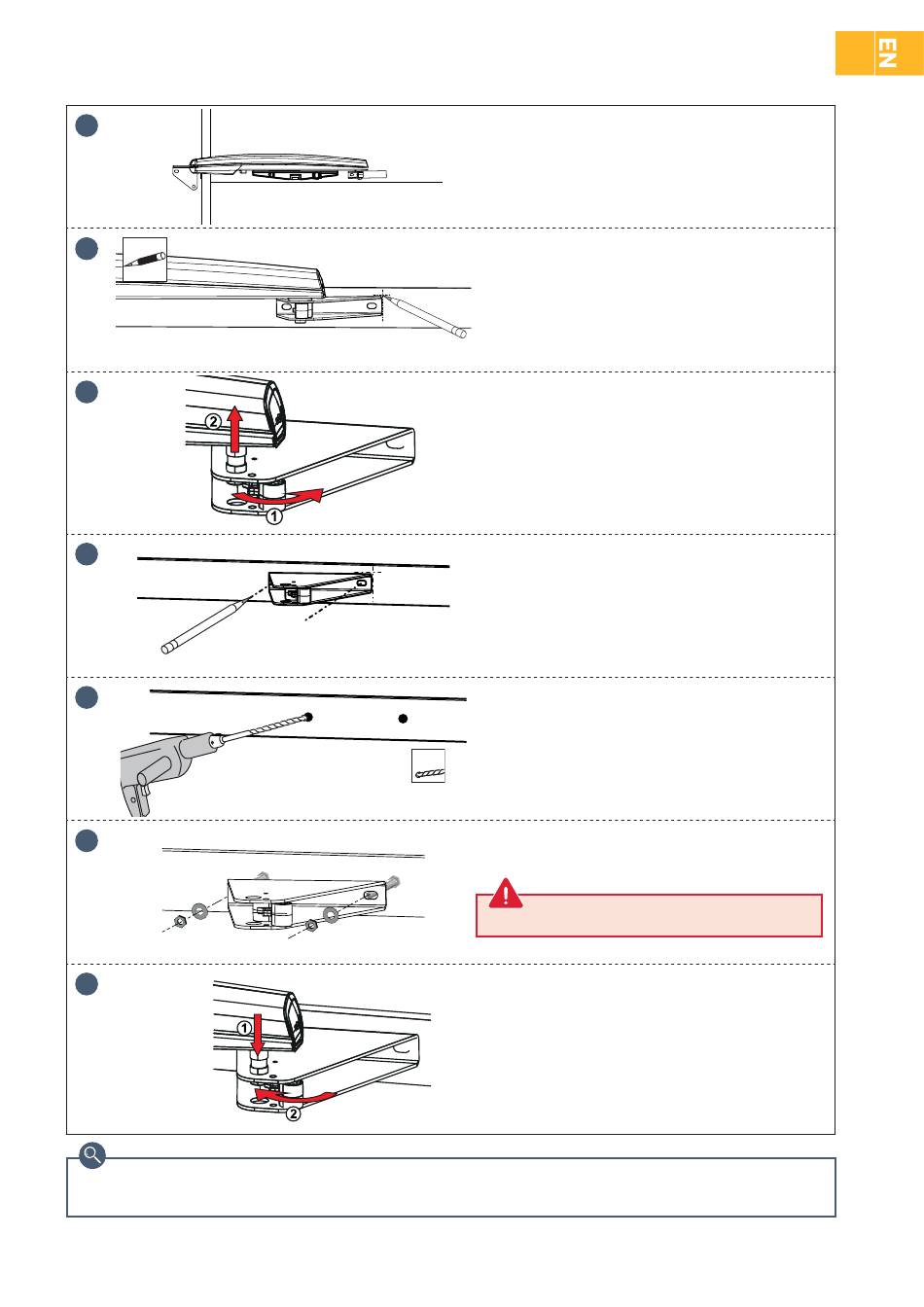

Check before proceeding to the next step
Have you checked that the cylinders are perfectly horizontal?
Push the gate leaf mounting bracket against the gate leaf
reinforcement. Check that the cylinder is level.
Make the markings on the sides of the gate leaf mounting
bracket.
Unclip that unlocking mechanism, then remove the cylinder
from the leaf mounting bracket.
Reposition the gate leaf mounting bracket then mark the
mounting holes in the centre of the oblong holes.
Drill the gate leaves with a diameter of 8.
8
Fasten the gate leaf mounting bracket using screws suited to
the reinforcement material and the washers (k) supplied.
The washers (k) provided must be fitted.
Fit the cylinder. Clip the unlocking mechanism on the catch to
secure it.
