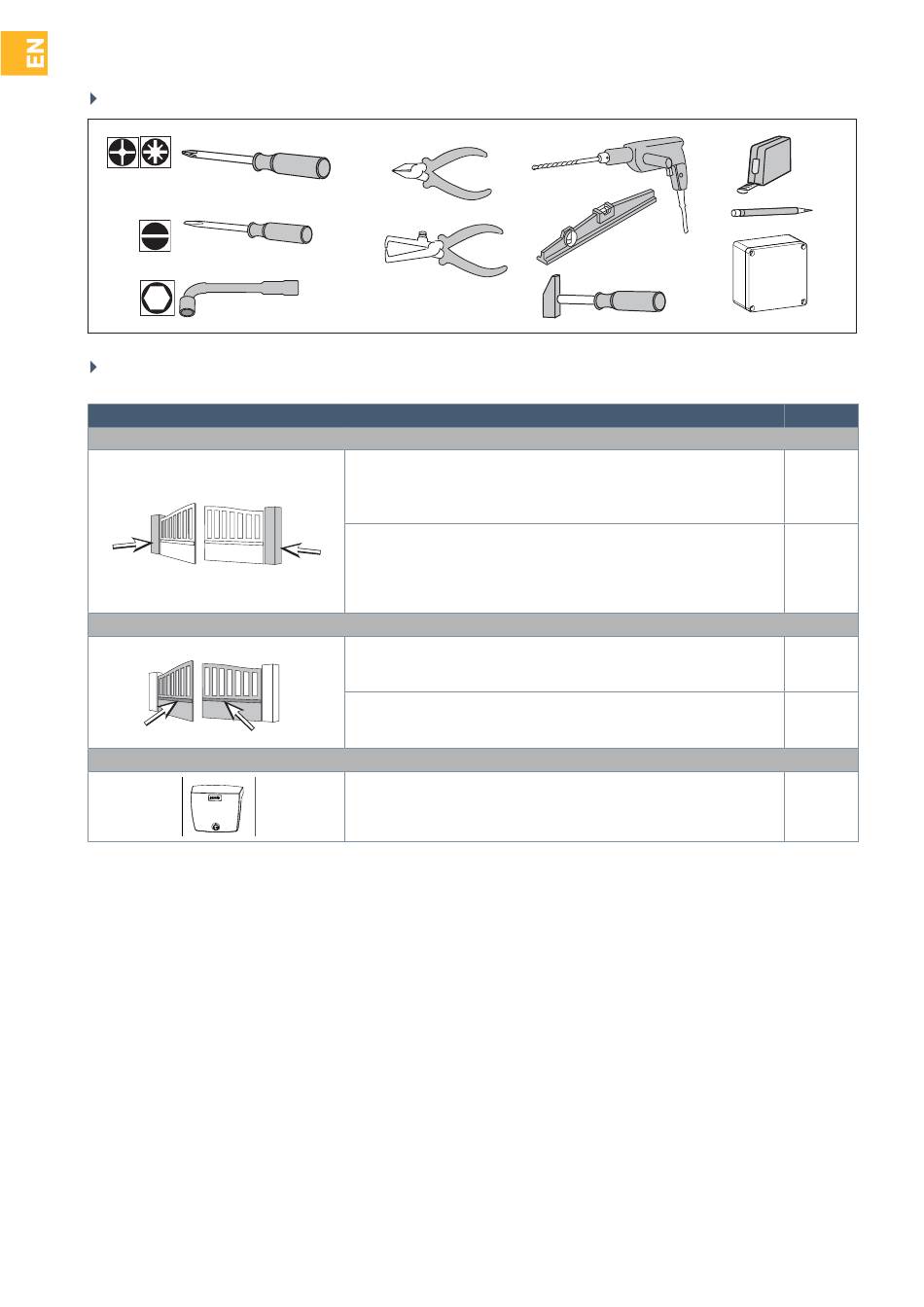

Tools required for installation (not provided)

PH
PZ2
13

Hardware required for installation (not provided)

This information is provided for information purposes.
For securing the...
BRACKETS TO THE PILLARS/WALLS
BRACKETS TO THE GATE LEAVES
CONTROL UNIT
11
EN - EXAVIA installation and operating guide - SOMFY
Hardware adapted to the material of the pillar/wall (screws, studs,
chemical seals, etc.):
- diameter: 8 to 10 mm
- hex head
Washers:
- internal diameter: 8 to 10 mm
- external diameter: 16 to 20 mm
Nuts:
- diameter: 17 mm
Hardware adapted to the material of the gate leaf reinforcement:
- diameter: 8 mm
- length adapted to the thickness of the gate leaf reinforcement
Washers supplied
- internal diameter: 8 mm
- external diameter: 22 mm
Hardware adapted to the material of the pillar/wall
- screw diameter: 3.5 to 4.5 mm - raised or flat-head screws
- Type "S" rawl plug for concrete: S5, S6 or S8
Quantity
6
6
6
6
4
