10. Specifications

Weight
Pan Movement
Tilt Movement
Heater Power

11. Customer Electrical Connections

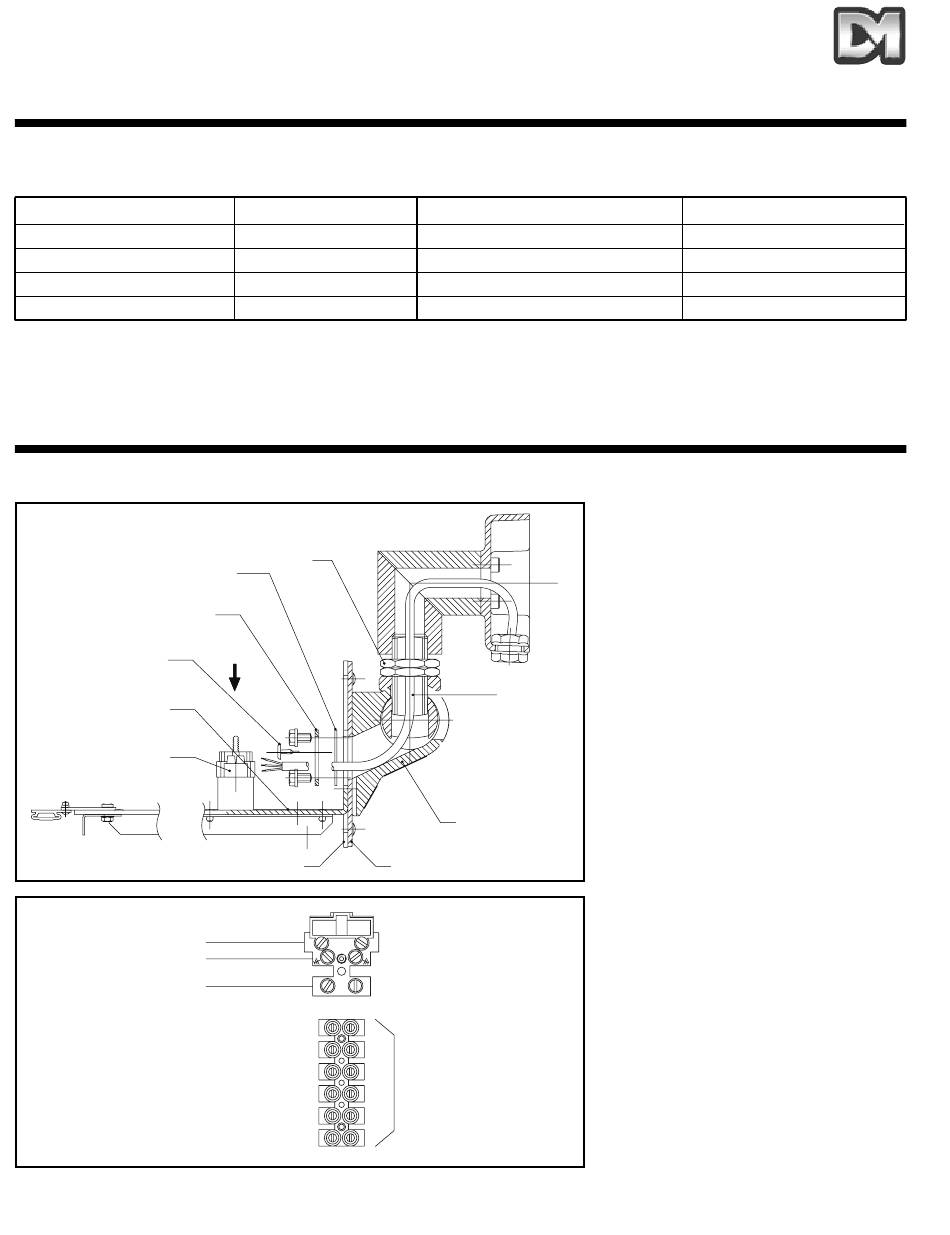

Housing Wiring Layout
Arrow 'B'
8.
1.
10.
From heater
View on Rear T.B.'s
Arrow 'B'
Type 508 Installation Manual
4.0kg
+/- 90°
- 90°
9 Watts
6.
7.
9.
2.
Heater Voltage
Weatherproofing Standard
5.
4.
3.
L
E
N
1 to 6
240V
24V
110V
12V
BS.EN.60529 IP66
Components
1. Platform
2. Gasket
3. Housing Back
4. Plate
5. 423 Bracket Assembly
6. Cable Run
7. Locking Nut
8. Rubber Diaphragm
Ref Function
L Line
E Earth
N Neutral
1 Spare
2 Spare
3 Spare
4 Spare
5 Spare
6 Spare
