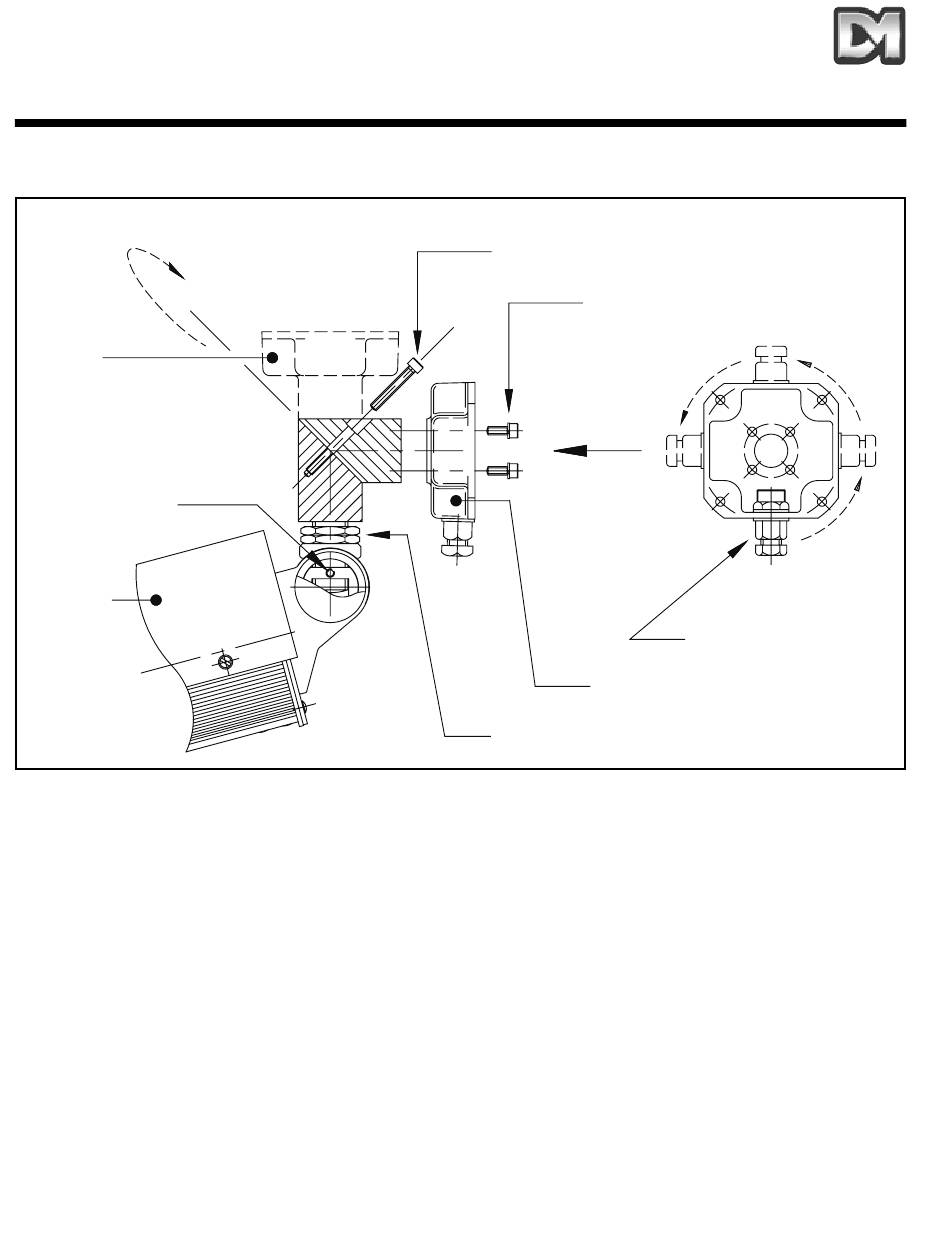

8. Mounting Instructions

180°
Ceiling
mounted configuration
2 x M6 Grub
Screws
Housing
body &
sunsheild
Remove 4 x M6 x 16 Soc. Hd. screws from rear bracket and rotate cast base until desired position
of M20 cable gland is acheived. Replace M6 screws and tighten firmly.
To convert the housing from wall mounted to ceiling mounted orientation. Remove 2 off fixings
(item1), rotate bracket arm (item2) through 180° and refit item 1. Loosen locking nut (item 3) &
position the housing to the desired orientation and re-lock.
For additional security 2 x M6 grub screws are provided. To gain access to these grub screws,
gently prise out the two plastic stop plugs. Then using the 3mm A/F ball allen key (supplied) either
one or both of the grub screws can be tightened with the housing. in the desired orientation. To
re-orientate the hsg. at any time these grub screws must be loosened first.
Type 508 Installation Manual
1.(2 x M6 x40 Soc. Cap hd screws)
4 x M6 x 16 Soc. Hd. Screws
Arrow 'A'
Wall
mounted configuration
3.
View on arrow 'A'
M20 Cable Gland
Page. 6
