3. Unpacking

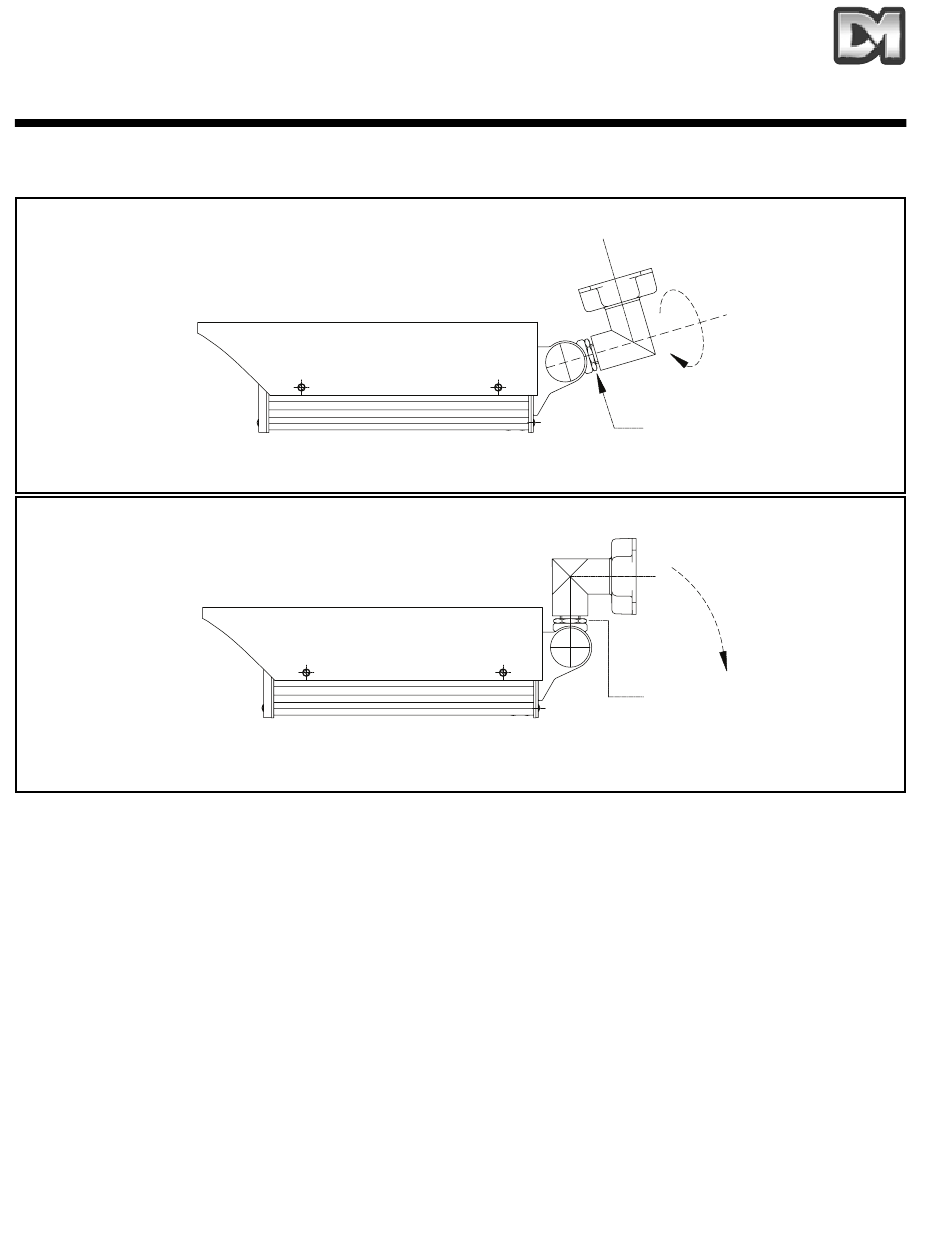

Fig.1
Fig.2
Method
The type 508 housing comes packed in the orientation shown in (fig.1)
To bring the 508 into operational service follow the following procedure.
1. Using the spanner (supplied) loosen the locking nut.
2. Rotate the extruded bracket arm and cast base through 180°
3. Retighten the locking nut, ensuring the extruded bracket arm is in the desired position. (fig2)
The 508 housing is now ready to mount. (Refer to mounting Instructions Section)
Type 508 Installation Manual
Rotate 180°
Locking nut
Locking nut
Page. 2
