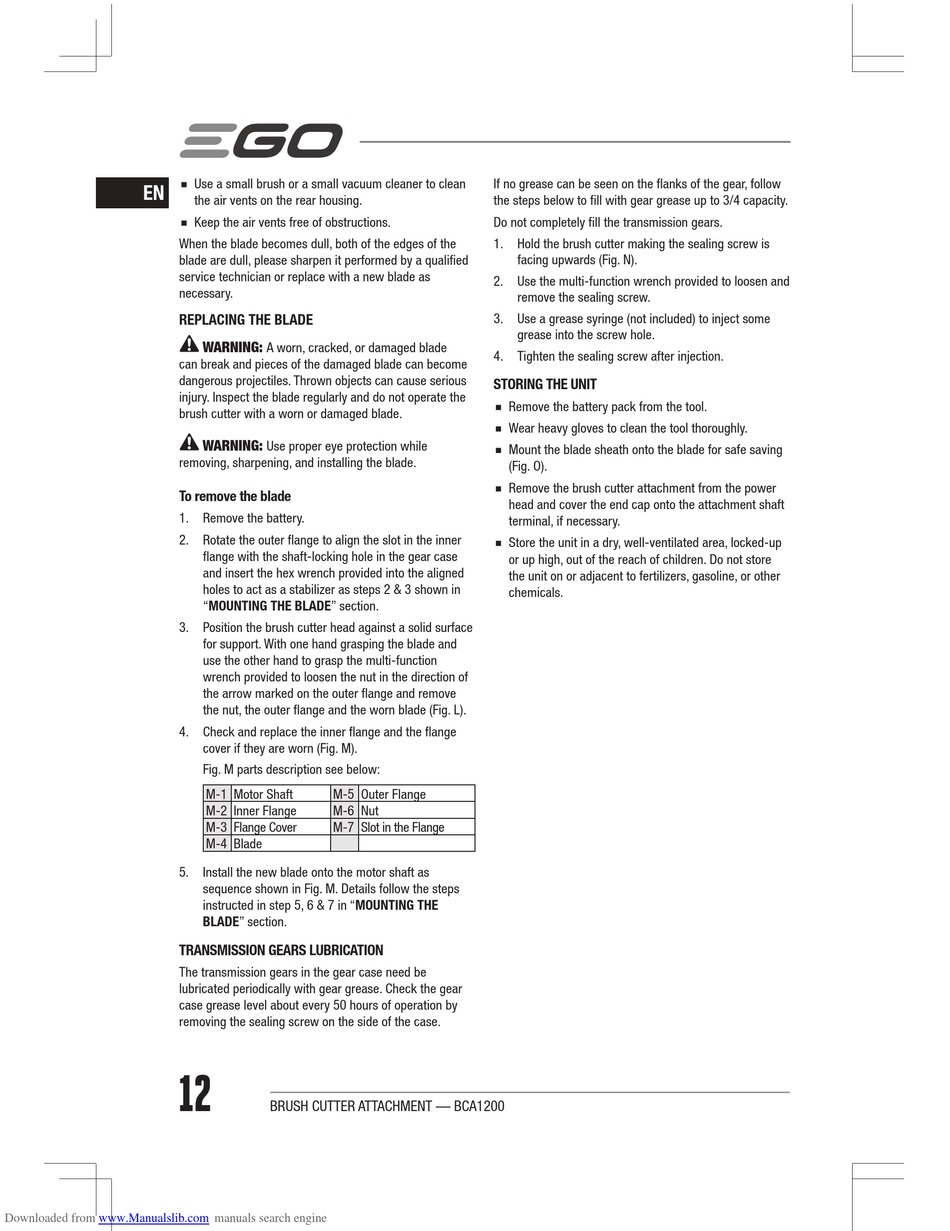

EN
◾
When the blade becomes dull, both of the edges of the
blade are dull, please sharpen it performed by a qualified
service technician or replace with a new blade as
necessary.

REPLACING THE BLADE

can break and pieces of the damaged blade can become
dangerous projectiles. Thrown objects can cause serious
injury. Inspect the blade regularly and do not operate the
brush cutter with a worn or damaged blade.
removing, sharpening, and installing the blade.
To remove the blade
1. Remove the battery.
2. Rotate the outer flange to align the slot in the inner
3. Position the brush cutter head against a solid surface
4. Check and replace the inner flange and the flange
5. Install the new blade onto the motor shaft as
TRANSMISSION GEARS LUBRICATION
The transmission gears in the gear case need be
lubricated periodically with gear grease. Check the gear
case grease level about every 50 hours of operation by
removing the sealing screw on the side of the case.
12
Downloaded from www.Manualslib.com
Use a small brush or a small vacuum cleaner to clean
the air vents on the rear housing.
Keep the air vents free of obstructions.
WARNING:
A worn, cracked, or damaged blade
WARNING:
Use proper eye protection while
flange with the shaft-locking hole in the gear case
and insert the hex wrench provided into the aligned
holes to act as a stabilizer as steps 2 & 3 shown in
"MOUNTING THE BLADE" section.
for support. With one hand grasping the blade and
use the other hand to grasp the multi-function
wrench provided to loosen the nut in the direction of
the arrow marked on the outer flange and remove
the nut, the outer flange and the worn blade (Fig. L).
cover if they are worn (Fig. M).
Fig. M parts description see below:
M-1 Motor Shaft M-5 Outer Flange
M-2 Inner Flange M-6 Nut
M-3 Flange Cover M-7 Slot in the Flange
M-4 Blade
sequence shown in Fig. M. Details follow the steps
instructed in step 5, 6 & 7 in "MOUNTING THE
BLADE" section.
BRUSH CUTTER ATTACHMENT — BCA1200
manuals search engine
If no grease can be seen on the flanks of the gear, follow
the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gears.
1. Hold the brush cutter making the sealing screw is
facing upwards (Fig. N).
2. Use the multi-function wrench provided to loosen and
remove the sealing screw.
3. Use a grease syringe (not included) to inject some
grease into the screw hole.
4. Tighten the sealing screw after injection.

STORING THE UNIT

◾
Remove the battery pack from the tool.
◾
Wear heavy gloves to clean the tool thoroughly.
◾
Mount the blade sheath onto the blade for safe saving
(Fig. O).
◾
Remove the brush cutter attachment from the power
head and cover the end cap onto the attachment shaft
terminal, if necessary.
◾
Store the unit in a dry, well-ventilated area, locked-up
or up high, out of the reach of children. Do not store
the unit on or adjacent to fertilizers, gasoline, or other
chemicals.
