5. Commissioning, operation

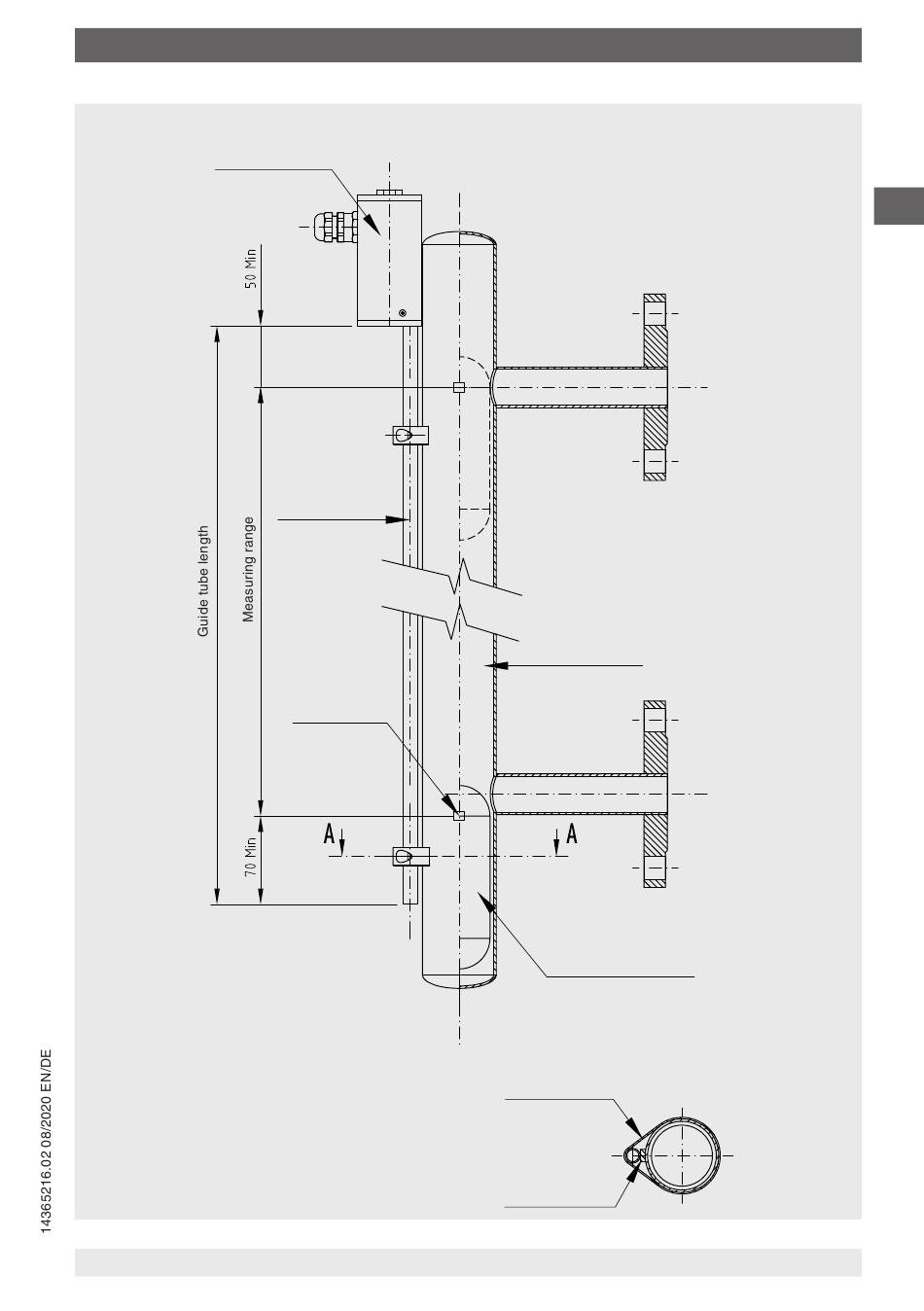

Mounting with bypass
BLM for bypass
Operating instructions magnetostrictive level transmitter, models FLM-CA, FLM-CM
min. magnet
position
Guide tube,
mounted free
of tension (not
deformed)
Magnet position
min. magnet
position
Distance from guide tube to centre of float:
max. distance depending on bypass float
Bypass tube
Bypass float
Probe fixing
(un-magnetic)
Spacer
EN
Section A-A
13
