Status displays

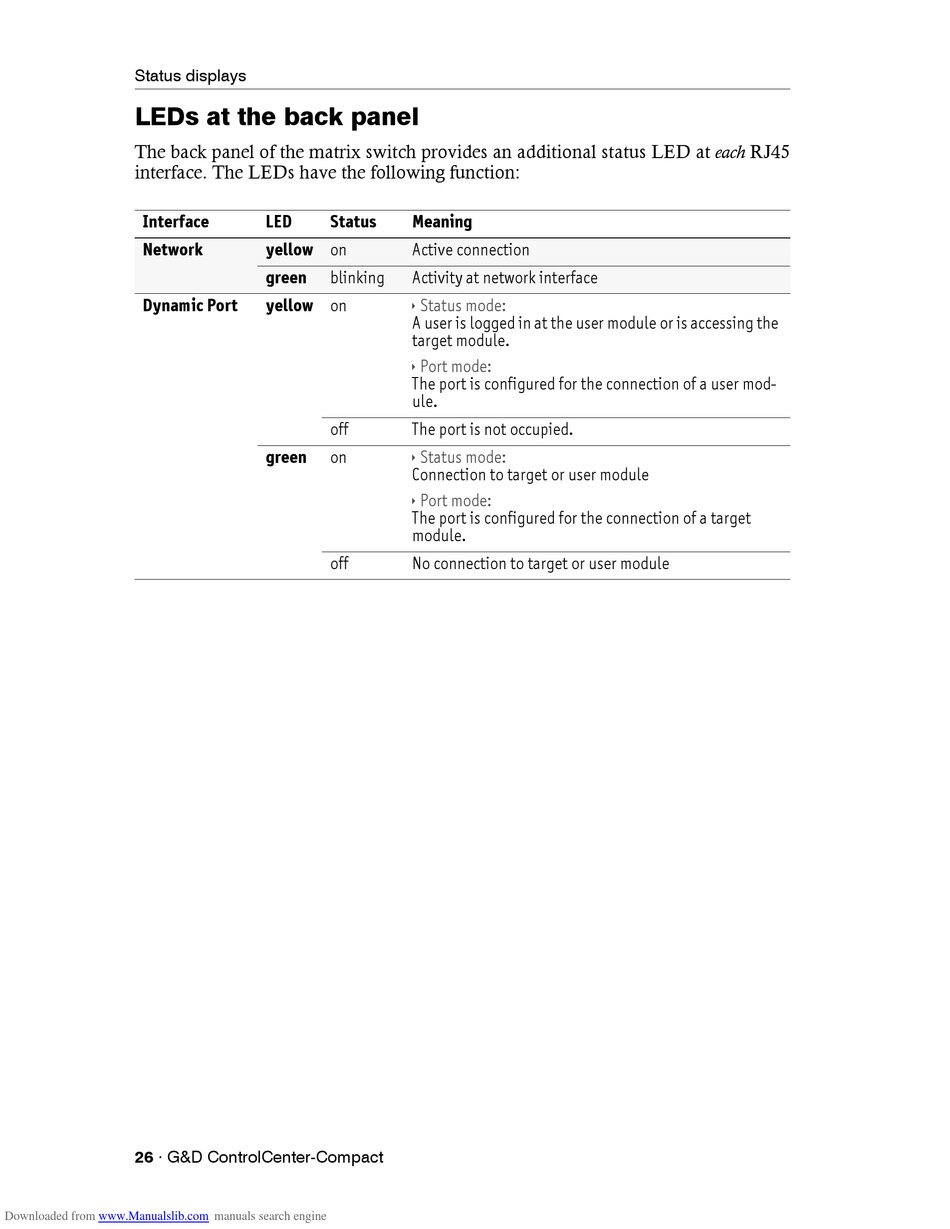

LEDs at the back panel
The back panel of the matrix switch provides an additional status LED at each RJ45
interface. The LEDs have the following function:
Interface
Network
Dynamic Port
26 · G&D ControlCenter-Compact
Downloaded from www.Manualslib.com
LED Status
yellow on
green blinking
yellow on
off
green on
off
manuals search engine
Meaning
Active connection
Activity at network interface
 Status mode:
A user is logged in at the user module or is accessing the
target module.
 Port mode:
The port is configured for the connection of a user mod-
ule.
The port is not occupied.
 Status mode:
Connection to target or user module
 Port mode:
The port is configured for the connection of a target
module.
No connection to target or user module
