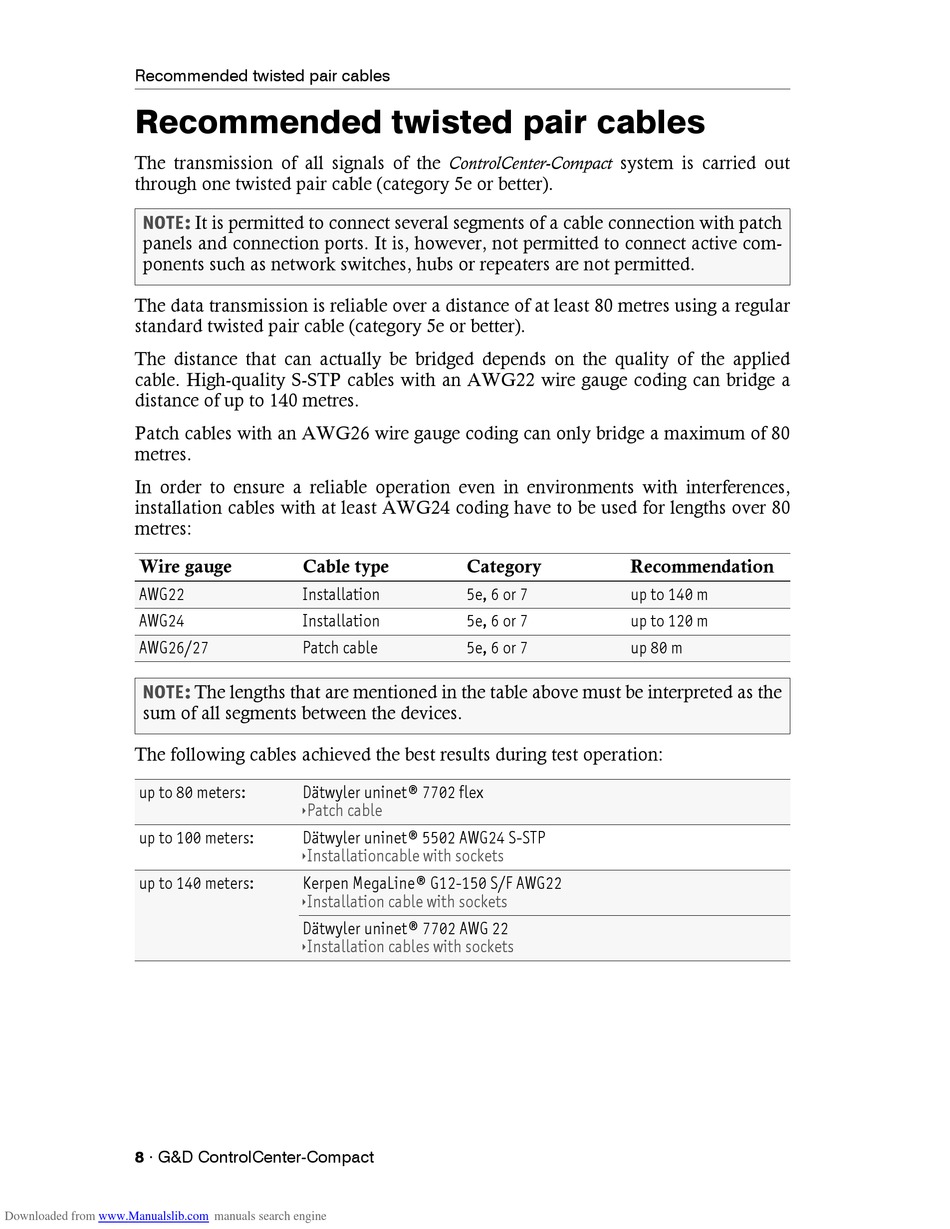

Recommended twisted pair cables

Recommended twisted pair cables
The transmission of all signals of the ControlCenter-Compact system is carried out
through one twisted pair cable (category 5e or better).
NOTE:
panels and connection ports. It is, however, not permitted to connect active com-
ponents such as network switches, hubs or repeaters are not permitted.
The data transmission is reliable over a distance of at least 80 metres using a regular
standard twisted pair cable (category 5e or better).
The distance that can actually be bridged depends on the quality of the applied
cable. High-quality S-STP cables with an AWG22 wire gauge coding can bridge a
distance of up to 140 metres.
Patch cables with an AWG26 wire gauge coding can only bridge a maximum of 80
metres.
In order to ensure a reliable operation even in environments with interferences,
installation cables with at least AWG24 coding have to be used for lengths over 80
metres:
Wire gauge
AWG22
AWG24
AWG26/27
NOTE:
sum of all segments between the devices.
The following cables achieved the best results during test operation:
up to 80 meters:
up to 100 meters:
up to 140 meters:
8 · G&D ControlCenter-Compact
Downloaded from www.Manualslib.com
It is permitted to connect several segments of a cable connection with patch
Cable type
Installation
Installation
Patch cable
The lengths that are mentioned in the table above must be interpreted as the
Dätwyler uninet® 7702 flex
Patch cable
Dätwyler uninet® 5502 AWG24 S-STP
Installationcable with sockets
Kerpen MegaLine® G12-150 S/F AWG22
Installation cable with sockets
Dätwyler uninet® 7702 AWG 22
Installation cables with sockets
manuals search engine
Category Recommendation
5e, 6 or 7 up to 140 m
5e, 6 or 7 up to 120 m
5e, 6 or 7 up 80 m
