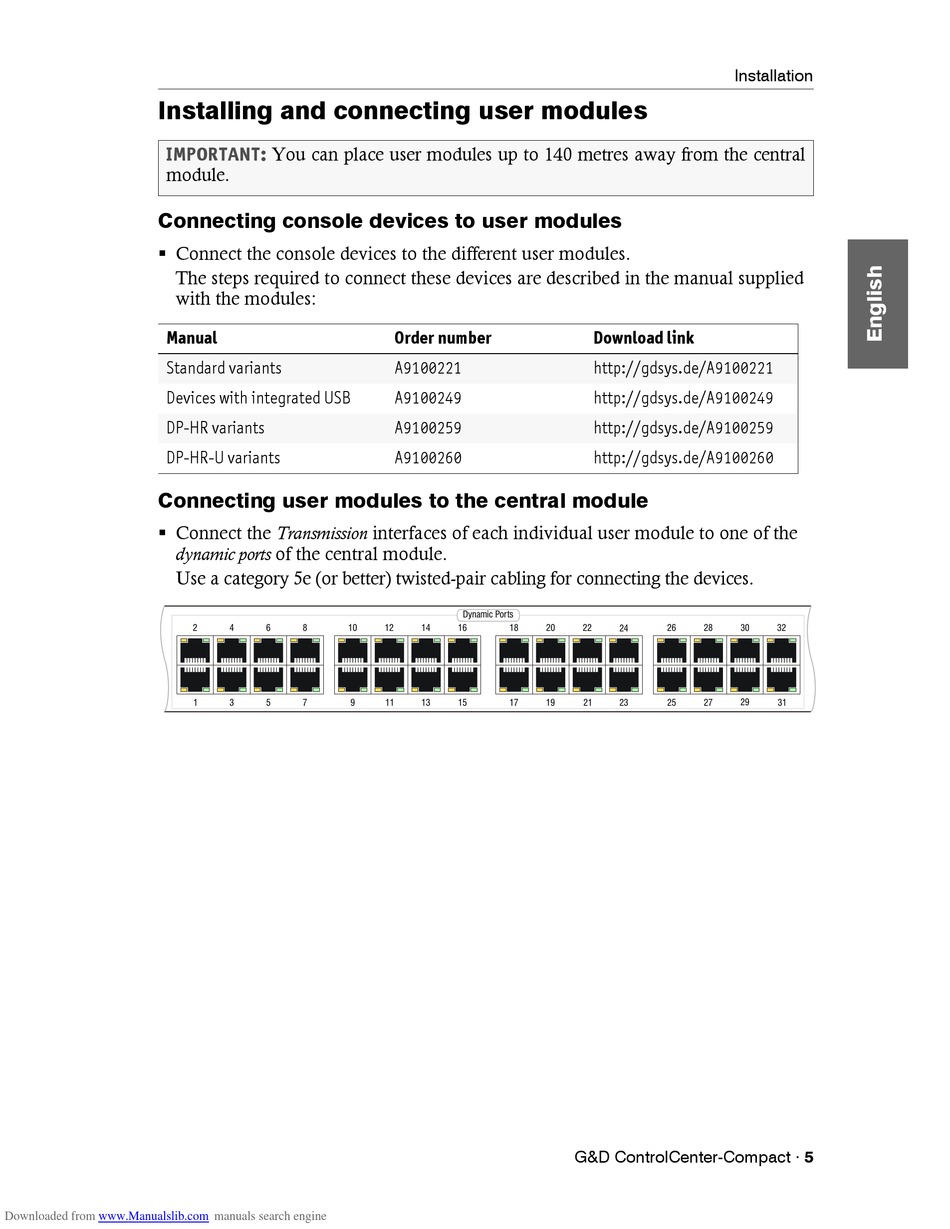

Installing and connecting user modules

IMPORTANT:
module.

Connecting console devices to user modules

 Connect the console devices to the different user modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
Standard variants
Devices with integrated USB
DP-HR variants
DP-HR-U variants

Connecting user modules to the central module

 Connect the Transmission interfaces of each individual user module to one of the
dynamic ports of the central module.
Use a category 5e (or better) twisted-pair cabling for connecting the devices.
Downloaded from www.Manualslib.com
You can place user modules up to 140 metres away from the central
2 4 6 8 10
1 3 5 7 9
manuals search engine
Order number
A9100221
A9100249
A9100259
A9100260
Dynamic Ports
12 14 16 18 20
11 13 15 17 19
Installation
Download link
http://gdsys.de/A9100221
http://gdsys.de/A9100249
http://gdsys.de/A9100259
http://gdsys.de/A9100260
22 24 26 28 30
21 23 25 27 29
G&D ControlCenter-Compact · 5
32
31
