Installation

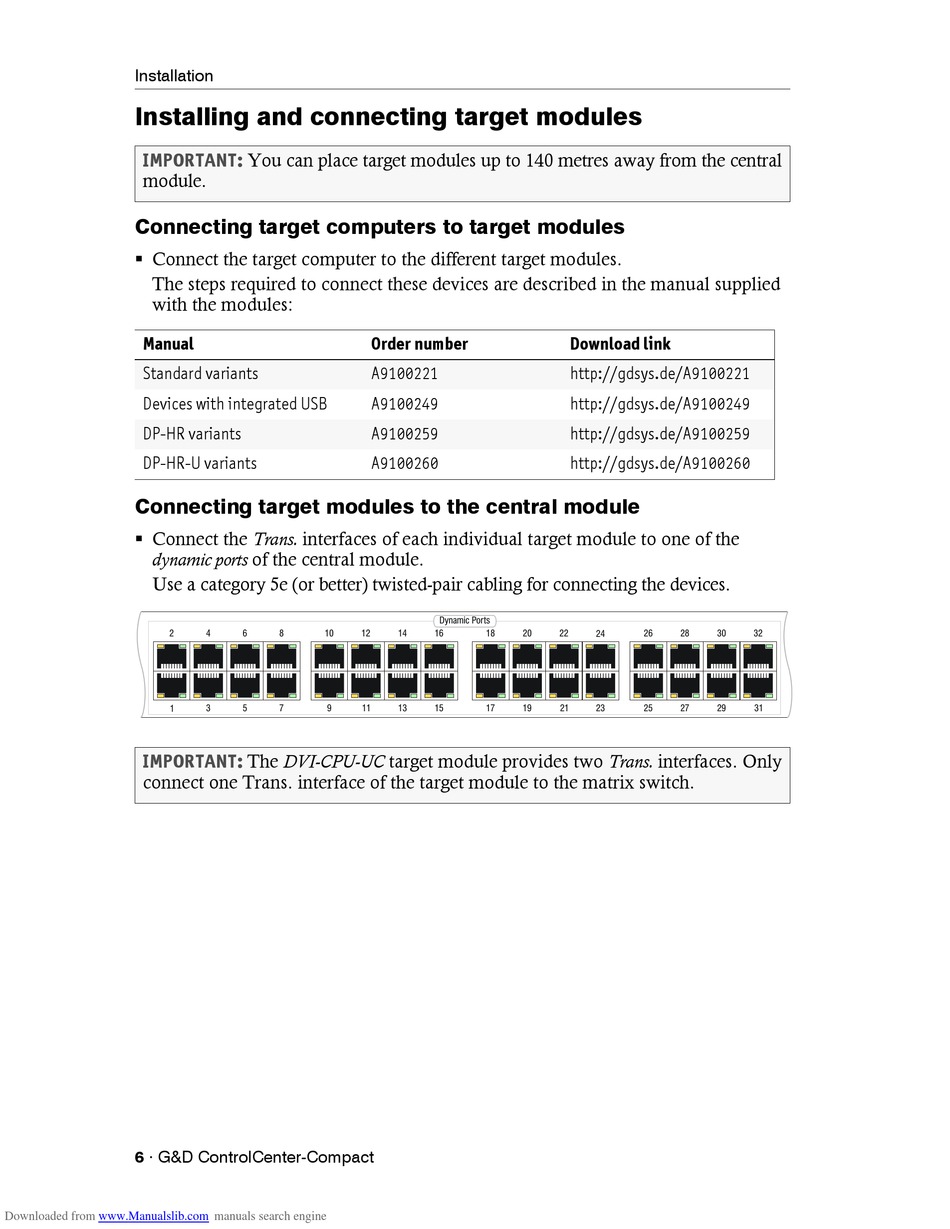

Installing and connecting target modules

IMPORTANT:
module.

Connecting target computers to target modules

 Connect the target computer to the different target modules.
The steps required to connect these devices are described in the manual supplied
with the modules:
Manual
Standard variants
Devices with integrated USB
DP-HR variants
DP-HR-U variants

Connecting target modules to the central module

 Connect the Trans. interfaces of each individual target module to one of the
dynamic ports of the central module.
Use a category 5e (or better) twisted-pair cabling for connecting the devices.
2
1
IMPORTANT:
connect one Trans. interface of the target module to the matrix switch.
6 · G&D ControlCenter-Compact
Downloaded from www.Manualslib.com
You can place target modules up to 140 metres away from the central
Order number
A9100221
A9100249
A9100259
A9100260
4 6 8 10 12
3 5 7 9 11
The DVI-CPU-UC target module provides two Trans. interfaces. Only
manuals search engine
Download link
http://gdsys.de/A9100221
http://gdsys.de/A9100249
http://gdsys.de/A9100259
http://gdsys.de/A9100260
Dynamic Ports
14 16 18 20 22
13 15 17 19 21
24 26 28 30 32
23 25 27 29 31
