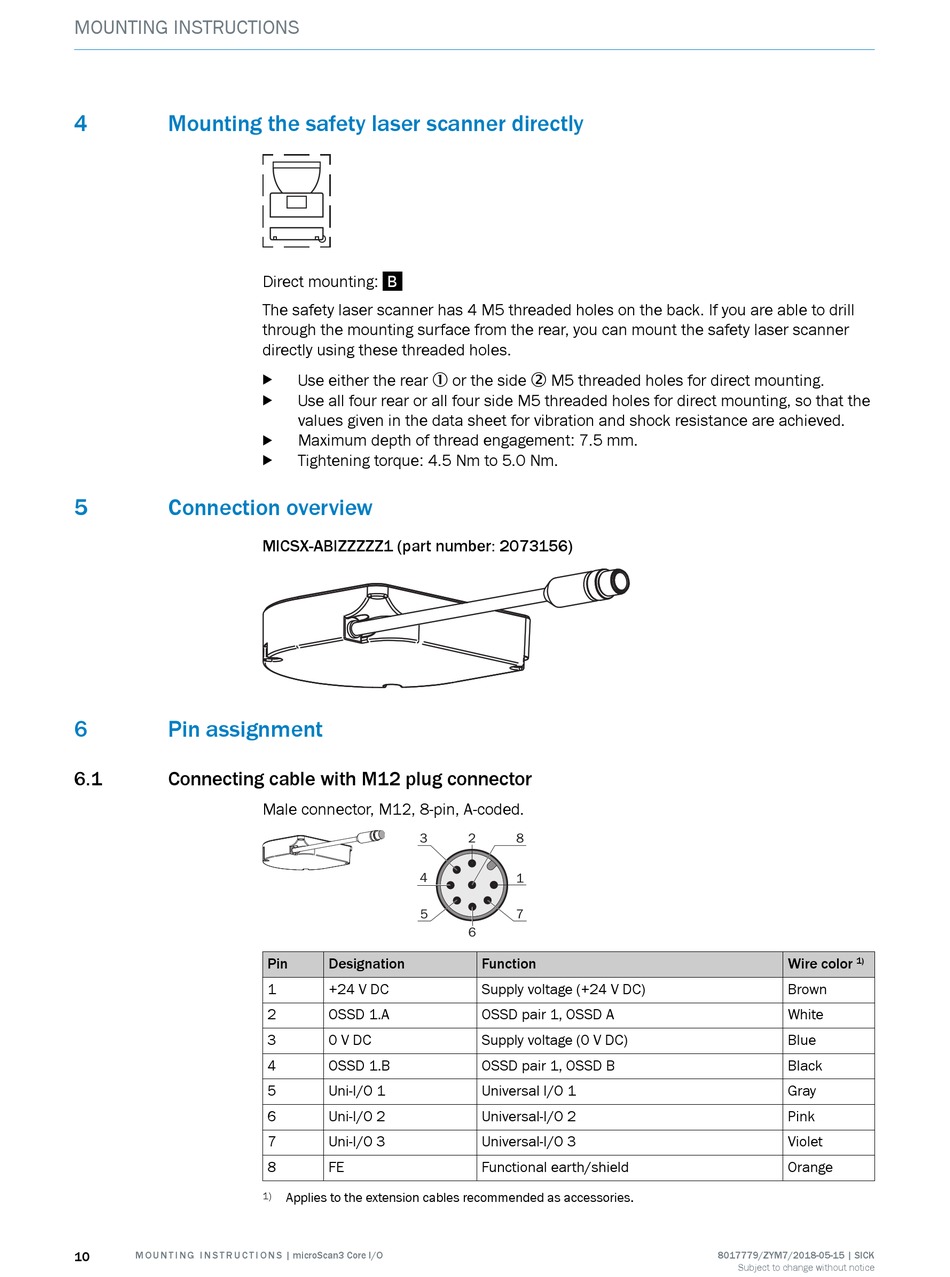

4 Mounting the safety laser scanner directly
5

Connection overview

6

Pin assignment

6.1 Connecting cable with M12 plug connector
10 M O U N T I N G I N S T R U C T I O N S | microScan3 Core I/O
Direct mounting: B
The safety laser scanner has 4 M5 threaded holes on the back. If you are able to drill
through the mounting surface from the rear, you can mount the safety laser scanner
directly using these threaded holes.
Use either the rear 1 or the side 2 M5 threaded holes for direct mounting.
b
Use all four rear or all four side M5 threaded holes for direct mounting, so that the
b
values given in the data sheet for vibration and shock resistance are achieved.
Maximum depth of thread engagement: 7.5 mm.
b
Tightening torque: 4.5 Nm to 5.0 Nm.
b
MICSX-ABIZZZZZ1 (part number: 2073156)
Male connector, M12, 8-pin, A-coded.
3
4
5
Pin Designation
1 +24 V DC
2 OSSD 1.A
3 0 V DC
4 OSSD 1.B
5 Uni-I/O 1
6 Uni-I/O 2
7 Uni-I/O 3
8 FE
Applies to the extension cables recommended as accessories.
1)
2
8
1
7
6
Function
Supply voltage (+24 V DC)
OSSD pair 1, OSSD A
Supply voltage (0 V DC)
OSSD pair 1, OSSD B
Universal I/O 1
Universal-I/O 2
Universal-I/O 3
Functional earth/shield
Wire color
1)
Brown
White
Blue
Black
Gray
Pink
Violet
Orange
