1
2

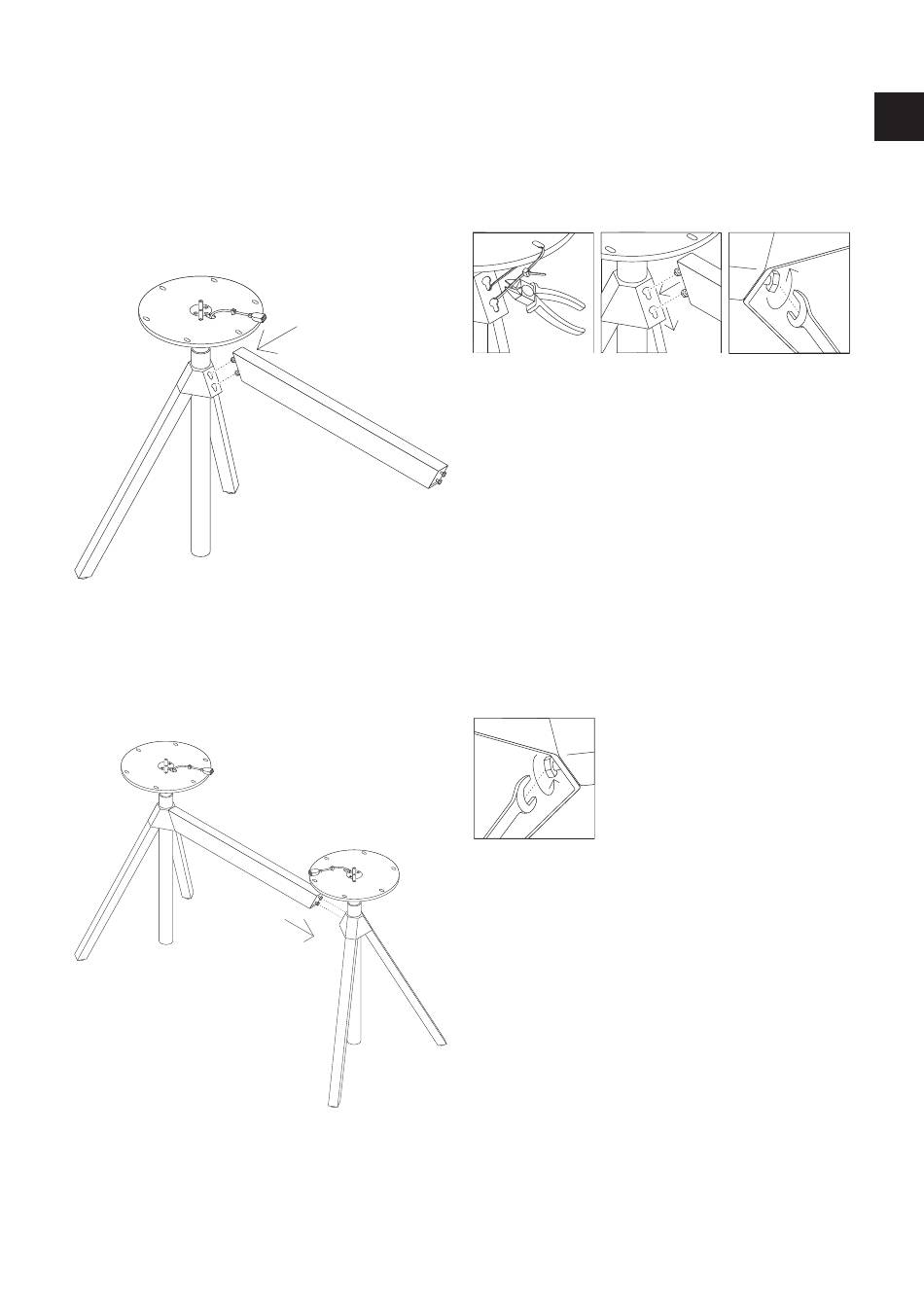

Assembly of the under frame
Before you begin with the assembly of the
underframe, cut the transport lock (cable tie)
on both bases. Make sure that the motor cable
is always pointing in the direction of the sus-
pension opening. Do not rotate the table plate
holders and thereby change the height level of
the bases. Now hook one side of the crossbar
into the suspension openings of a base using
the pre-assembled screws. Tighten both screws.
Hook the other side of the cross beam
into the suspension openings of the second
base using the pre-assembled screws. Tighten
the two screws firmly. Using the levelling glides
under each foot, you can then adjust the table
to any unevenness in the floor.
GB
5 3
