4.5.2 Relay

A changeover relay is provided on terminal X6.
Table 4-10: Relay output pinouts
Terminal Abbreviation
X6 / Pin 1
X6 / Pin 2
X6 / Pin 3

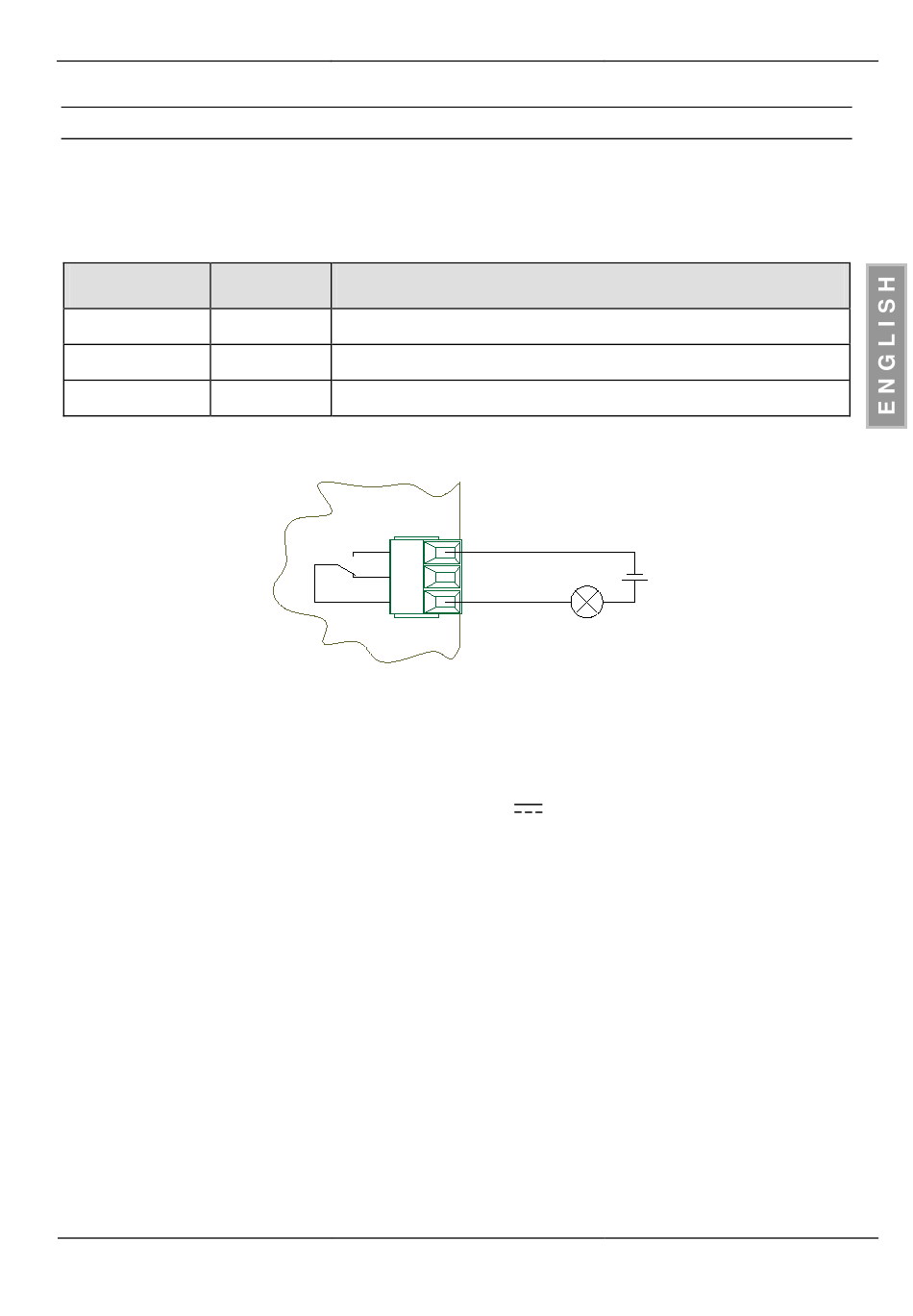

Fig. 4-9: Internal and possible external wiring of the relay output
Notes:
• The relay outputs are configured for max. 24 VDC
•
The relay outputs are intended for switching resistive loads only. If an inductive load is
used, the relay contacts must be protected by means of an external protection circuit.
FEIG ELECTRONIC GmbH
Installation
COM Working contact
NC Normally closed
NO Normally open
X6
N0
NC
COM
