4.2 Antenna Connections

The external antennas are connected to the SMA jacks ANT1 and ANT2. The SWR of the con-
nected antennas with the cables should not be worse than 1.5:1.
Table 4-2: Antenna Connections ANT1 and ANT2
Connections
SMA jacks for antenna connections
ANT1, ANT2
(input impedance 50 Ω)
Note:
The maximum tightening torque of the SMA sockets is 0,45 Nm (4.0 lbf in).
FEIG ELECTRONIC GmbH
Installation
ANT1

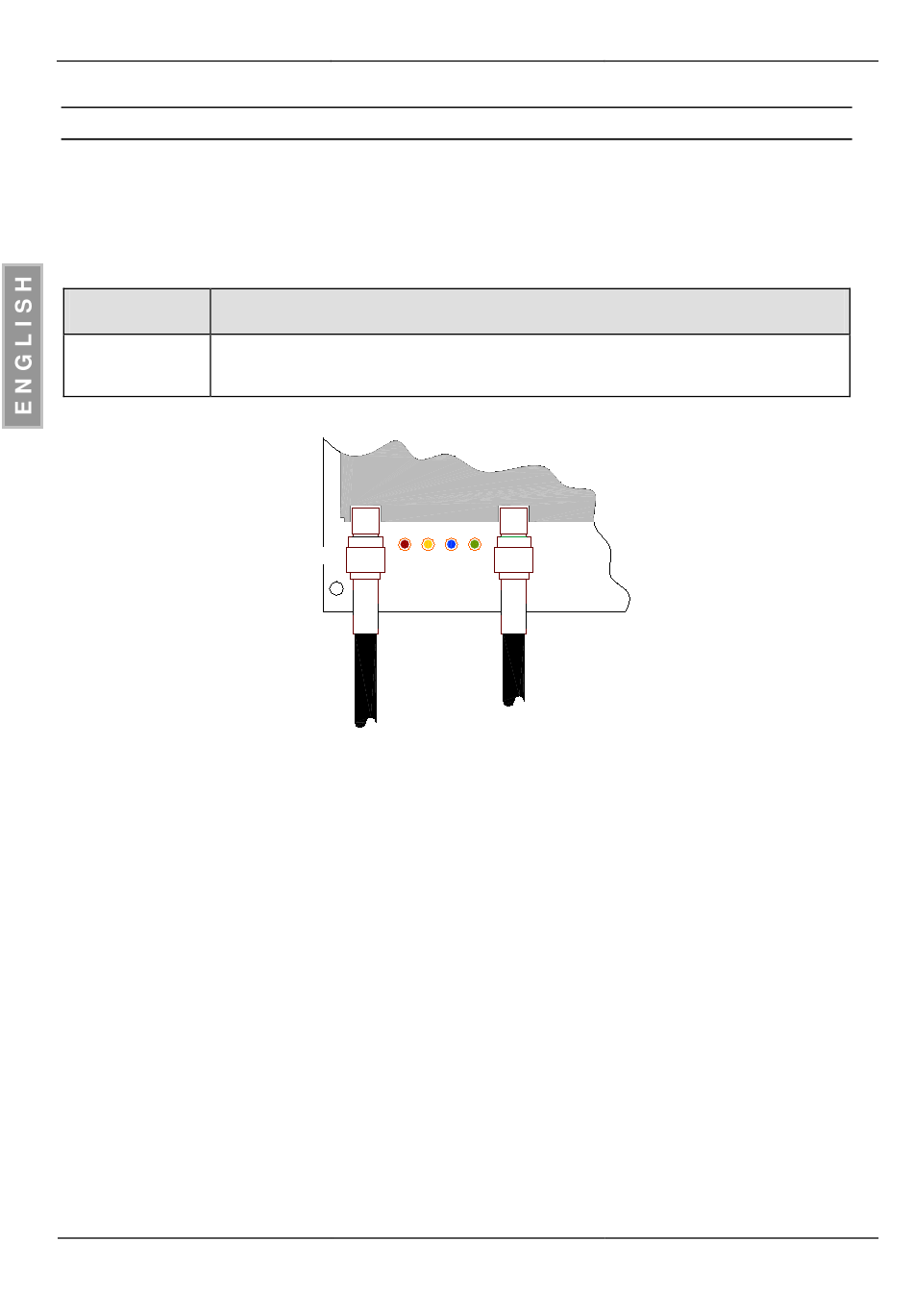

Fig. 4-4: Antenna Connections ANT1 and ANT2
Page 38 of 52
Description
ANT2
