4.3 Interfaces

4.3.1 RS232 Interface

The RS232 interface is connected on X2. The transmission parameters can be configured by
means of software protocol.
Table 4-3: RS232 interface pinouts
Terminal Abbreviation
X2 / Pin 1
X2 / Pin 2
X2 / Pin 3

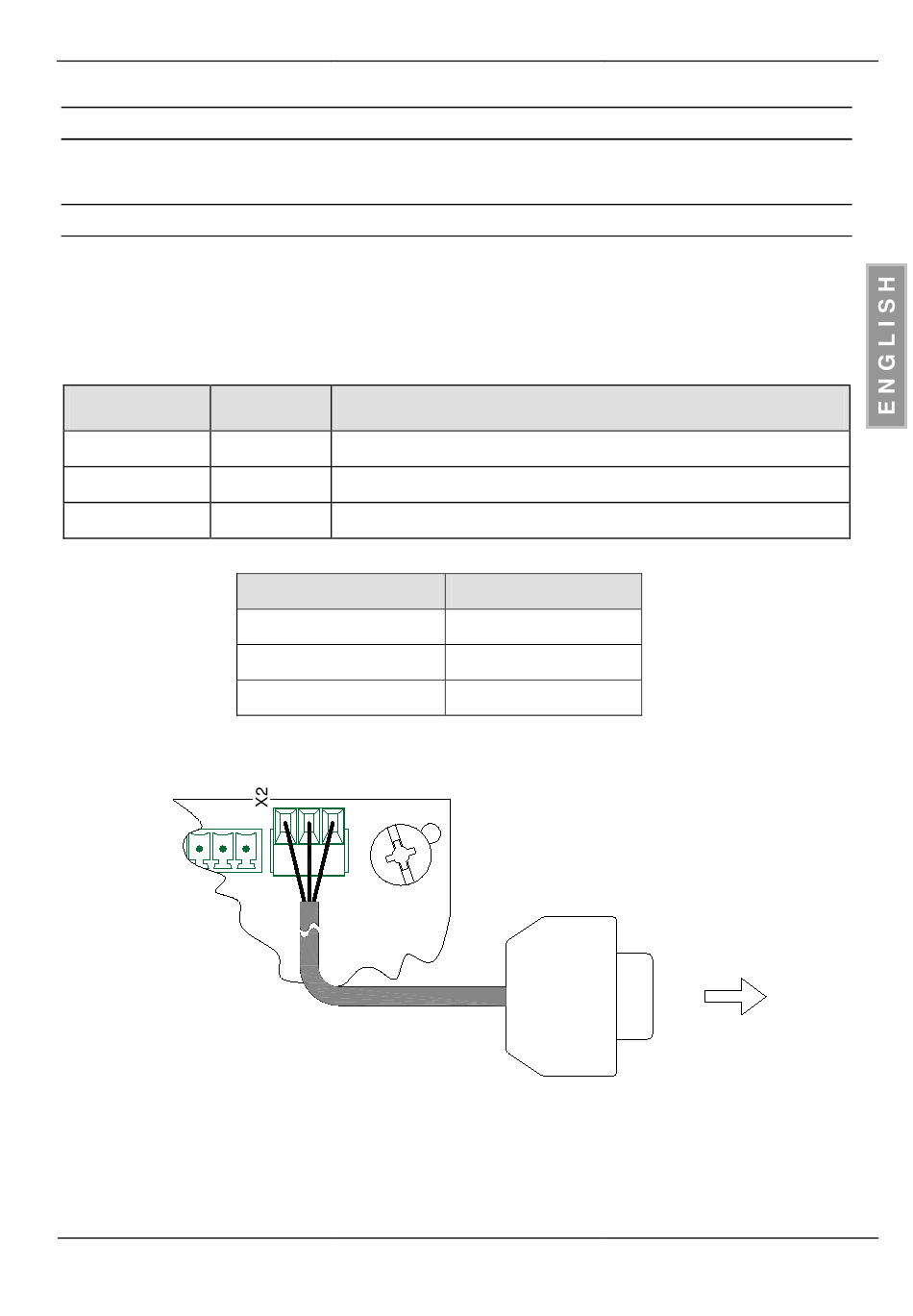

Fig. 4-5: Wiring example for connecting the RS232 interface
FEIG ELECTRONIC GmbH
Installation
GND RS232 – GND
RxD RS232 – RxD
TxD RS232 – TxD
Reader
X2 / Pin 1 (GND)
X2 / Pin 2 (RxD)
X2 / Pin 3 (TxD)
TxD RxD GND
Page 39 of 52
Description
PC
Pin 5
Pin 3
Pin 2
9-pol. DUB-D-Buchse
M70201-4de-ID-B.doc
ID ISC.MRU200
