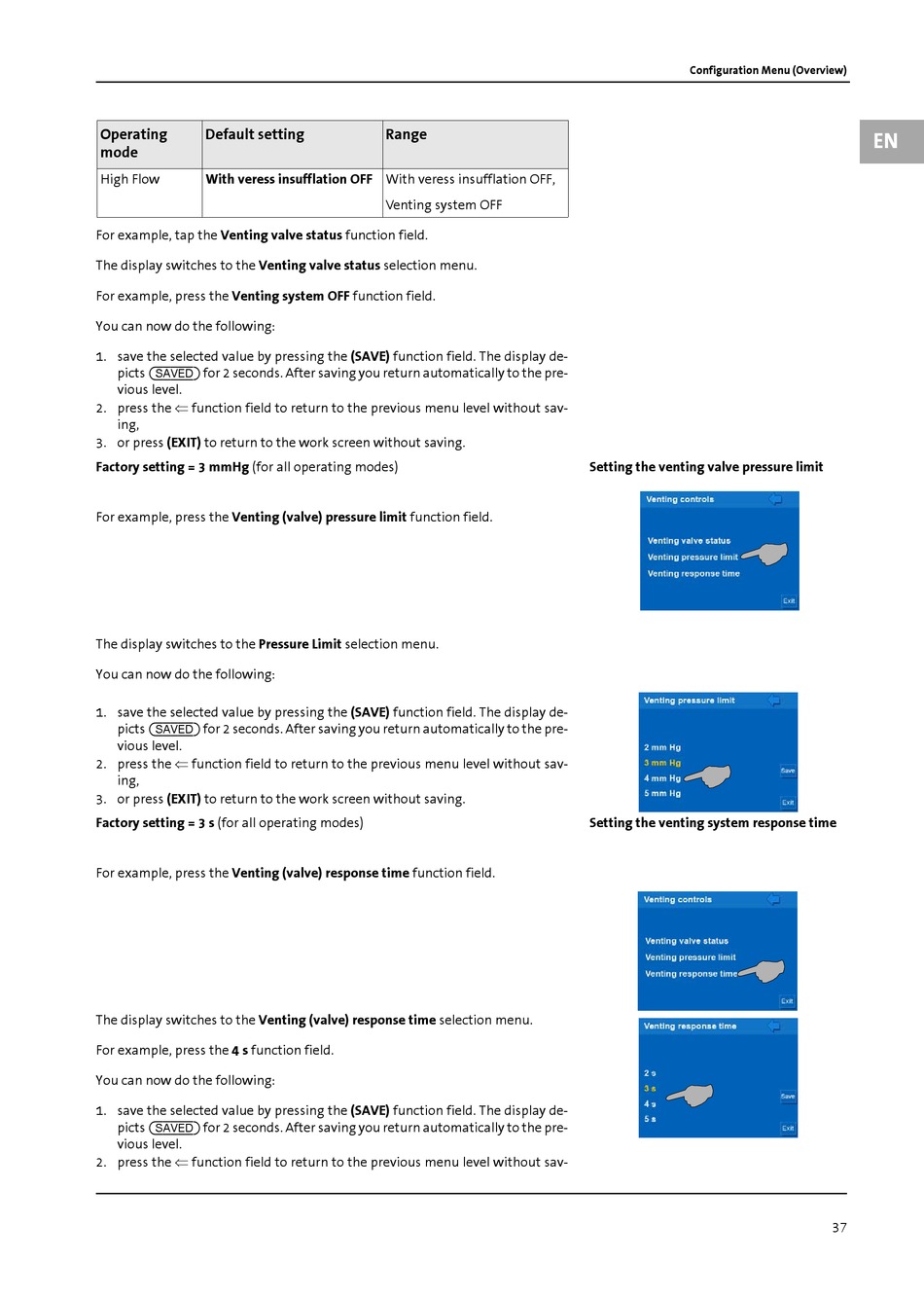

Arthrex Synergy Insufflation Gebrauchsanweisung Seite 41

Operating Default setting
mode
High Flow With veress insufflation OFF With veress insufflation OFF,
For example, tap the Venting valve status function field.
The display switches to the Venting valve status selection menu.
For example, press the Venting system OFF function field.
You can now do the following:
1. save the selected value by pressing the (SAVE) function field. The display de-
picts (SAVED) for 2 seconds. After saving you return automatically to the pre-
vious level.
2. press the  function field to return to the previous menu level without sav-
ing,
3. or press (EXIT) to return to the work screen without saving.
Factory setting = 3 mmHg (for all operating modes)
For example, press the Venting (valve) pressure limit function field.
The display switches to the Pressure Limit selection menu.
You can now do the following:
1. save the selected value by pressing the (SAVE) function field. The display de-
picts (SAVED) for 2 seconds. After saving you return automatically to the pre-
vious level.
2. press the  function field to return to the previous menu level without sav-
ing,
3. or press (EXIT) to return to the work screen without saving.
Factory setting = 3 s (for all operating modes)
For example, press the Venting (valve) response time function field.
The display switches to the Venting (valve) response time selection menu.
For example, press the 4 s function field.
You can now do the following:
1. save the selected value by pressing the (SAVE) function field. The display de-
picts (SAVED) for 2 seconds. After saving you return automatically to the pre-
vious level.
2. press the  function field to return to the previous menu level without sav-
Range
Venting system OFF
Configuration Menu (Overview)
Setting the venting valve pressure limit
Setting the venting system response time
