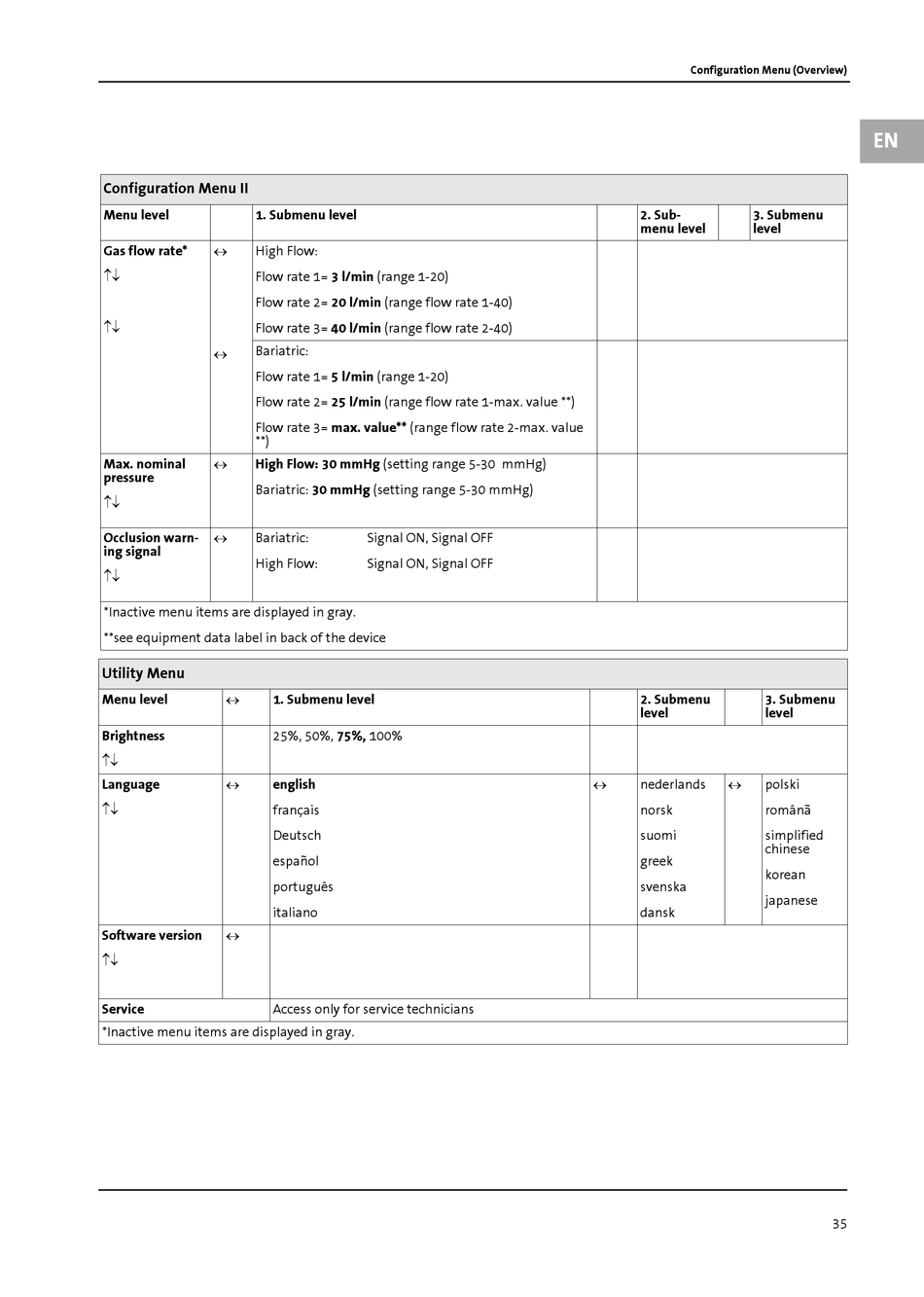

Configuration Menu II
Menu level 1. Submenu level

Gas flow rate* High Flow:

Flow rate 1= 3 l/min (range 1-20)
Flow rate 2= 20 l/min (range flow rate 1-40)

Flow rate 3= 40 l/min (range flow rate 2-40)
Bariatric:

Flow rate 1= 5 l/min (range 1-20)
Flow rate 2= 25 l/min (range flow rate 1-max. value **)
Flow rate 3= max. value** (range flow rate 2-max. value
**)

Max. nominal High Flow: 30 mmHg (setting range 5-30 mmHg)
pressure
Bariatric: 30 mmHg (setting range 5-30 mmHg)


Occlusion warn- Bariatric:
ing signal
High Flow:

*Inactive menu items are displayed in gray.
**see equipment data label in back of the device

Utility Menu


Menu level 1. Submenu level
Brightness 25%, 50%, 75%, 100%


Language english

français
Deutsch
español
português
italiano

Software version

Service Access only for service technicians
*Inactive menu items are displayed in gray.
Signal ON, Signal OFF
Signal ON, Signal OFF
Configuration Menu (Overview)
2. Sub- 3. Submenu
menu level level
2. Submenu 3. Submenu
level level
 
nederlands polski
norsk românã
suomi simplified
chinese
greek
korean
svenska
japanese
dansk
EN
35
