Non-abrasive surface
Figure R.2
Figure R.3
100 mm
Specifications
4-SCREWS (M4)
MAX depth: 8.5mm
If use other screw,
check length of screw.
Weight of LCD assembly: 5.9 kg (MAX) (LCD205WNXM)
6.3 kg (MAX) (LCD225WNXM/LCD225WNX)
Controls
OSD (On-Screen-Display) control buttons on the front of the monitor function as follows:
1. Basic function at pressing each key
SELECT
Button
At No OSD Showing OSD.
showing
At OSD showing Go to Adjustment stage.
(Icon selection stage)
At OSD showing Go to Icon selection stage.
(Adjustment stage)
2. OSD structure
Main Menu
(Icon Select, Analog Input)
Press
"SELECT"
key
01_English
Figure R.4
Thickness of Bracket
(Arm) 2.0 ~ 3.2 mm
Tighten all screws
100 mm
–
Shortcut to Brightness adjust
Menu.
Cursor goes to left.
Adjust value decrease or
Cursor for adjust goes to
left.
Main Menu (Adjust)
Press
"SELECT"
key
Press "SELECT" key
Adjust by using
"–" or "+"
English-3
3

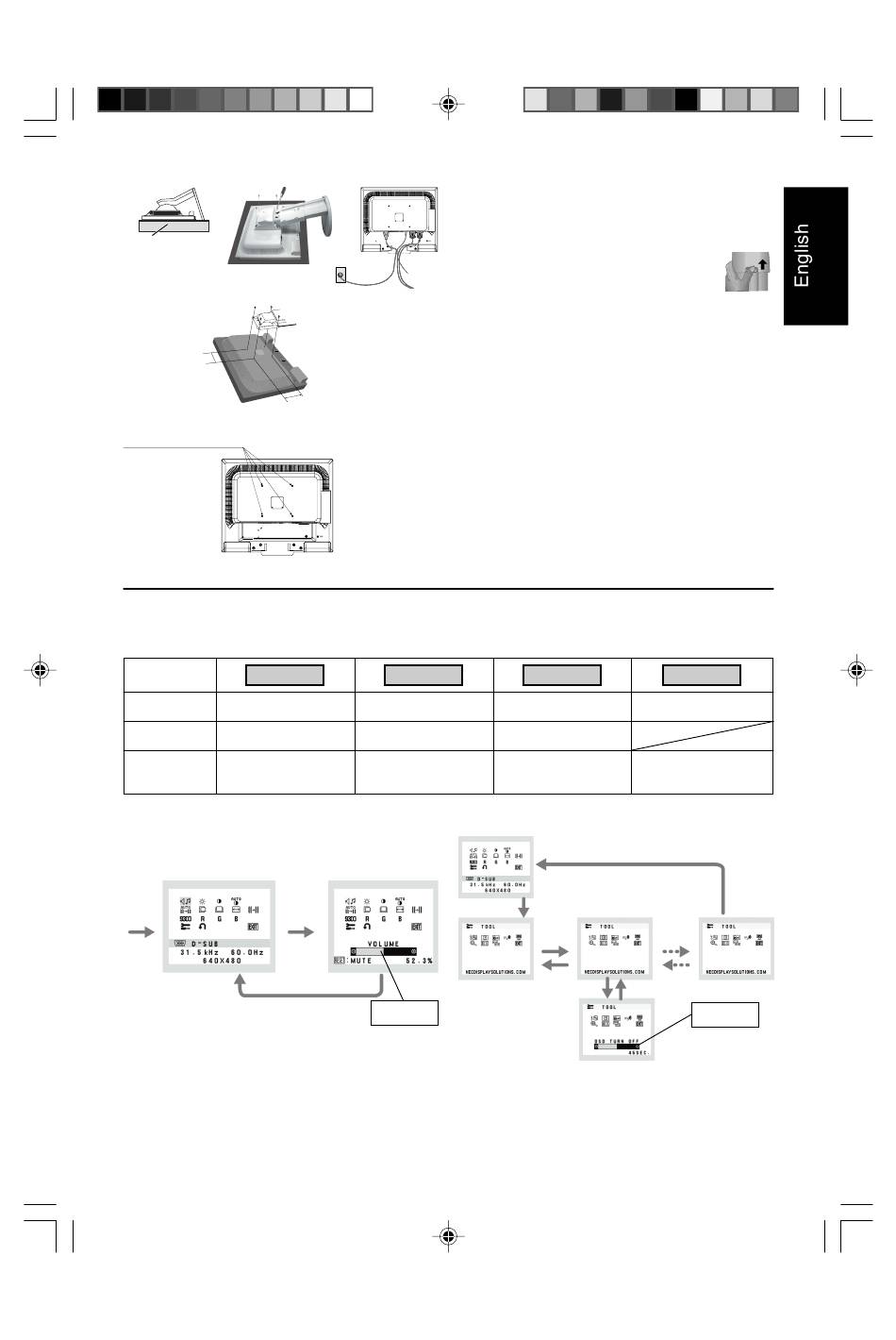

Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Place hands on each side of the monitor and lift up to the highest
position. Remove the cable cover.
NOTE: If you have difficulty removing the cable cover,
please push the lower opening upward to
remove it, as shown in the figure beside.
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure R.2).
4. Remove the 4 screws connecting the monitor to the stand and
remove the stand (Figure R.3).
The monitor is now ready for mounting in an alternative manner.
5. Connect all cables to the back of the monitor (Figure R.4).
6. Reverse this process to re-attach stand.
NOTE: Use only VESA-compatible alternative mounting method.
NOTE: Handle with care in order to avoid damage or dropping the
stand.
Connecting a Flexible Arm
This LCD monitor is designed for use with a flexible arm.
Please use the attached screws (4pcs) as shown in the picture when
installing. To meet the safety requirements, the monitor must be
mounted to an arm which guaranties the necessary stability under
consideration of the weight of the monitor. The LCD monitor shall only
be used with an approved arm (e.g. GS mark).
+
Shortcut to Volume adjust
Menu.
Cursor goes to right.
Adjust value increase or
Cursor for adjust goes to
right.
Example Tool:
Press "SELECT" key
Press "SELECT" key
Press
"–" or "+"
Sub Menu
(Icon Select)
Sub Menu (Adjust)
9/10/07, 6:43 PM
1<->2 / RESET
Input signal select.
Reset operation.
Mute off/on switch on
Volume adjustment Menu.
Press
"–" or "+"
Press "SELECT" key
Adjust by using
"–" or "+"
