30° Tilt
Highest
Stand
Position
Audio Input
Input1 (DVI)
Power cord
Figure B.1
A Type
A Type
B Type
Figure C.1
DVI Cable
Power cord
Figure C.2
D-Sub Cable
Figure C.4
Figure D.1
Figure D.2
Figure RL.1
Figure TS.1
01_English
DVI Cable
Input2 (D-Sub)
USB (LCD205WNXM/
LCD225WNXM only)
Headphone
A Type
B Type
USB Device
Figure C.3
USB Cable
(LCD205WNXM/
LCD225WNXM only)
Flat
Power
button
Figure D.3
Figure R.1
English-2
2

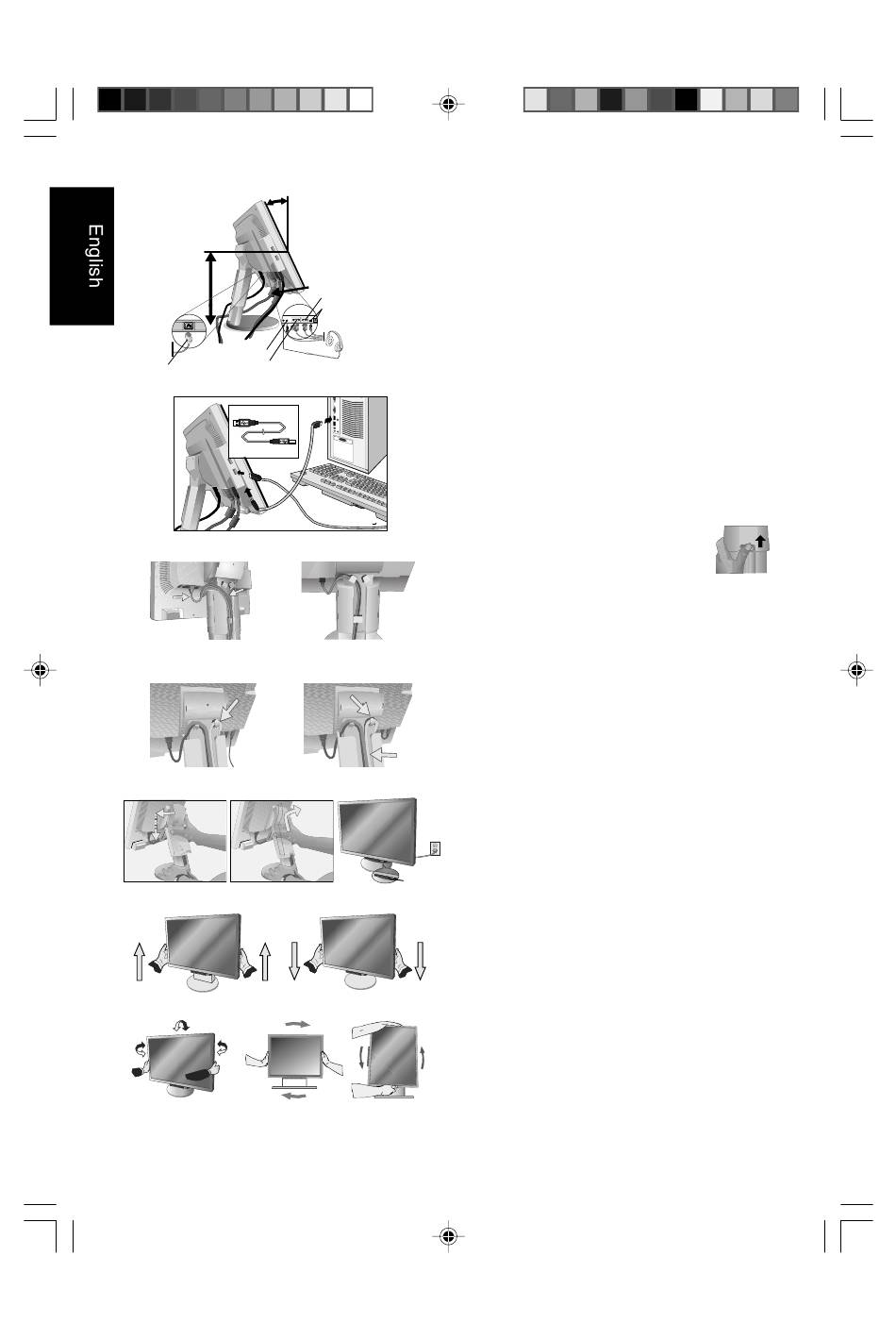

3. Place hands on each side of the monitor to tilt the LCD panel 30-
degree angle and lift up to the highest position (Figure B.1).
4. Connect all cables to the appropriate connector on the back of the
monitor (Figure B.1). Using the USB cable, connect the B type
connector to the USB upstream port on the bottom of the monitor
and A type connector to the downstream port on the computer
(Figure C.1). If you can use the cord from the USB device, use
one of the downstream ports on the side or bottom of the monitor.
Connect Headphones (not included) to the appropriate connector
at the rear side of the monitor, if desired (Figure B.1).
NOTE:
If connecting both DVI and D-Sub cables, the DVI cable
must be connected along side the rib on the power cord
side (Figure C.2).
5. For successful cable management, place the cables in this order
into the cable management: power cable and DVI cable.
6. Place DVI cable and power cable into the specific hooks as
indicated in Figure C.3.
7. Place the D-Sub and the USB cables (LCD205WNXM/
LCD225WNXM only) into the specific hooks indicated in Figure C.4.
8. Make sure all cables are resting flat against the stand (Figure C.4).
9. Hold all the cables firmly and place the cable cover onto the
stand (Figure D.1). To remove the cable cover, lift the cover off
as shown in Figure D.2.
NOTE:
Handle with care when placing the cable cover and avoid
pinching your fingers.
10. Connect the power cord to the power outlet (Figure D.3).
NOTE:
If you have difficulty removing the cable cover,
please push the lower opening upward to
remove it, as show in Figure E.1.
NOTE:
Please refer to the Caution section of this
manual for proper selection of power cord.
11. Turn on the monitor with the front power button and the computer
(Figure D.3).
12. No-touch Auto Adjust automatically adjusts the monitor to optimal
settings upon initial setup for most timings (Analog input only).
For further adjustments, use the following OSD controls:
•
Auto Contrast
•
Auto Adjust
Refer to the Controls section of this User's Manual for a full
description of these OSD controls.
NOTE:
If you have any problem, please refer to the
Troubleshooting section (CD-ROM).
Raise and Lower Monitor Screen
The monitor may be raised or lowered. To raise or lower screen,
place hands on each side of the monitor and lift or lower to the
desired height (Figure RL.1).
NOTE:
Handle with care when raising or lowering the monitor
screen.
Tilt and Swivel
Grasp both sides of the monitor screen with your hands and adjust
the tilt and swivel as desired (Figure TS.1).
NOTE:
Handle with care when tilting and swivelling the monitor screen.
Screen Rotation
Before rotating, the screen must be raised to the highest level to
avoid knocking the screen on the desk or pinching with your fingers.
To raise the screen, place hands on each side of the monitor and lift
up to the highest position (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and
turn clockwise from Landscape to Portrait or counter-clockwise from
Portrait to Landscape (Figure R.1).
9/10/07, 6:42 PM
Figure E.1
