24.6.2

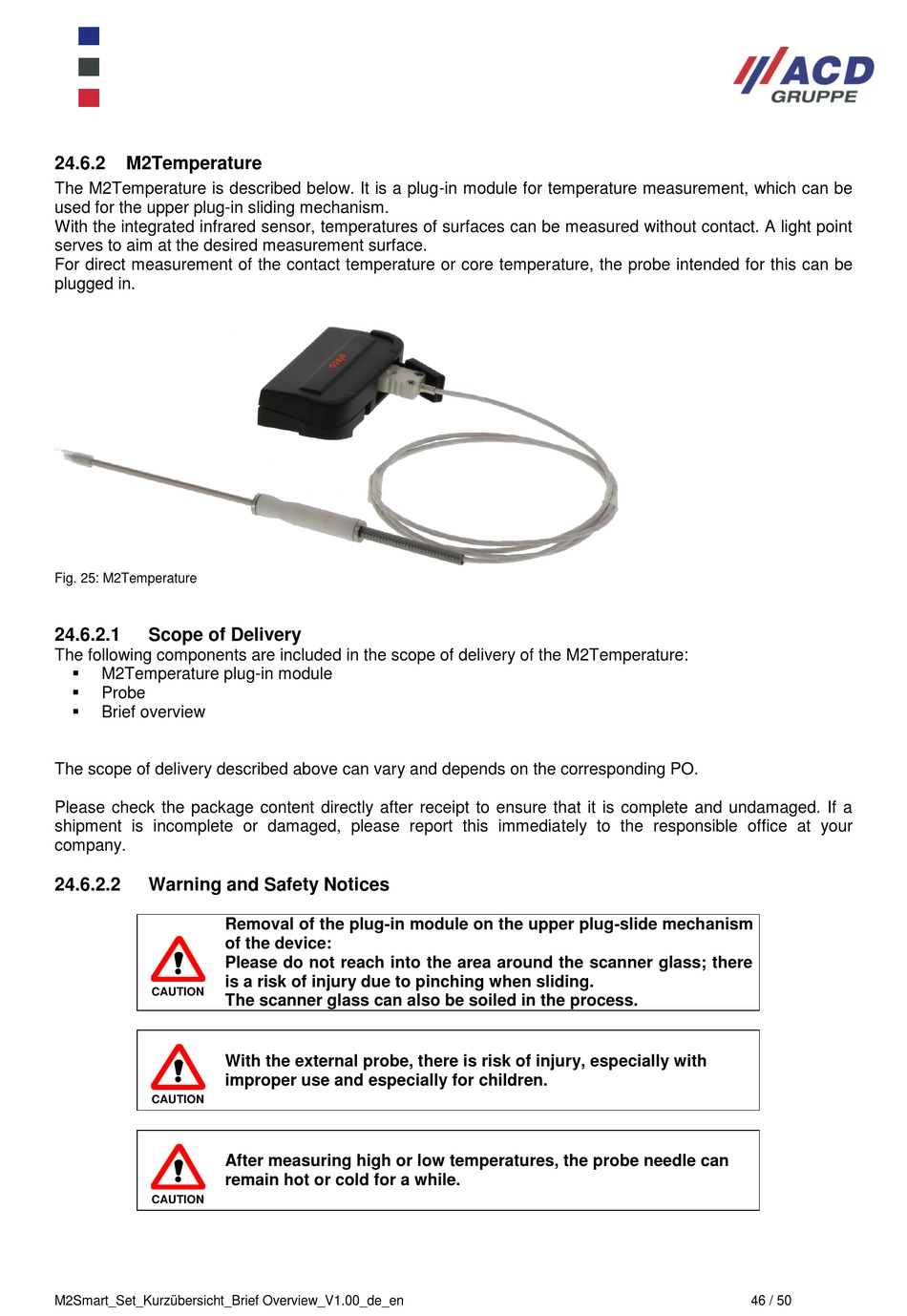

M2Temperature

The M2Temperature is described below. It is a plug-in module for temperature measurement, which can be
used for the upper plug-in sliding mechanism.
With the integrated infrared sensor, temperatures of surfaces can be measured without contact. A light point
serves to aim at the desired measurement surface.
For direct measurement of the contact temperature or core temperature, the probe intended for this can be
plugged in.
Fig. 25: M2Temperature
24.6.2.1

Scope of Delivery

The following components are included in the scope of delivery of the M2Temperature:

M2Temperature plug-in module

Probe

Brief overview
The scope of delivery described above can vary and depends on the corresponding PO.
Please check the package content directly after receipt to ensure that it is complete and undamaged. If a
shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
24.6.2.2

Warning and Safety Notices

Removal of the plug-in module on the upper plug-slide mechanism
of the device:
Please do not reach into the area around the scanner glass; there
is a risk of injury due to pinching when sliding.
CAUTION
The scanner glass can also be soiled in the process.
With the external probe, there is risk of injury, especially with
improper use and especially for children.
CAUTION
After measuring high or low temperatures, the probe needle can
remain hot or cold for a while.
CAUTION
