Programming - Agilent Technologies Turbo-V 701 Bedienungshandbuch

17 Technical Information

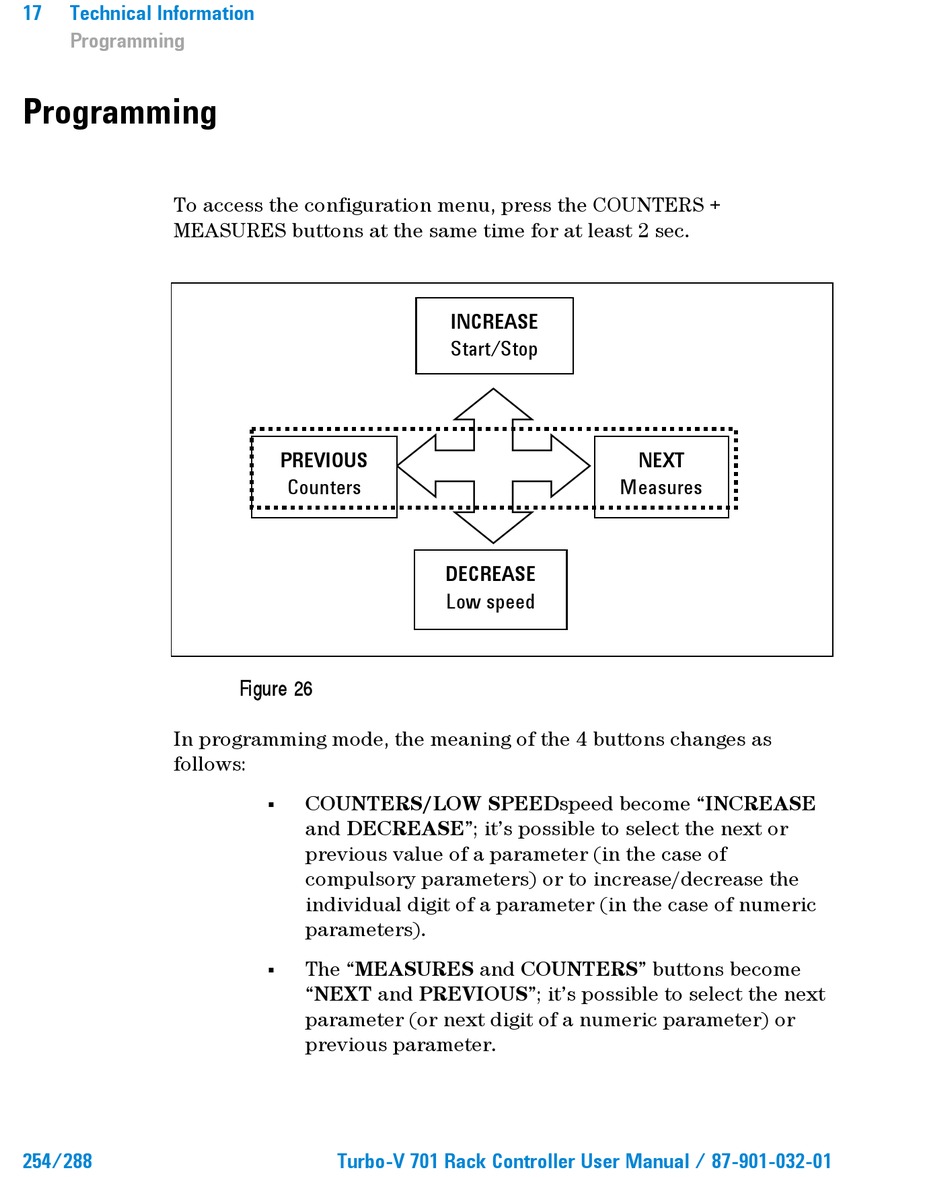

Programming

Programming
To access the configuration menu, press the COUNTERS +
MEASURES buttons at the same time for at least 2 sec.
In programming mode, the meaning of the 4 buttons changes as
follows:
254/288
PREVIOUS
Counters
Figure 26
COUNTERS/LOW SPEEDspeed become "INCREASE

and DECREASE"; it's possible to select the next or
previous value of a parameter (in the case of
compulsory parameters) or to increase/decrease the
individual digit of a parameter (in the case of numeric
parameters).
The "MEASURES and COUNTERS" buttons become

"NEXT and PREVIOUS"; it's possible to select the next
parameter (or next digit of a numeric parameter) or
previous parameter.
Turbo-V 701 Rack Controller User Manual / 87-901-032-01
INCREASE
Start/Stop
Measures
DECREASE
Low speed
NEXT
