Fuse Holder Assembly

Fuse Holder Assembly

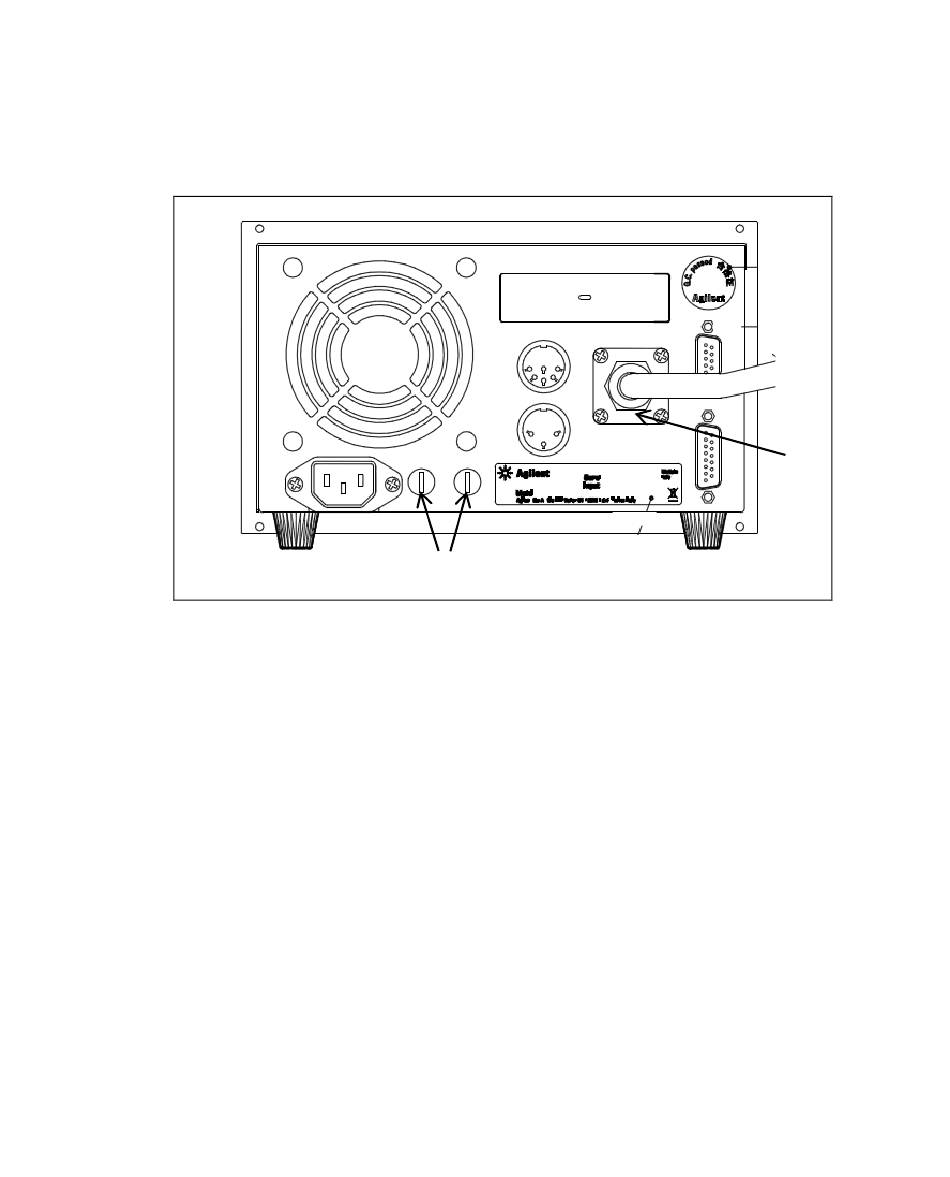

The following figure shows the location of this assembly.
Figure 6
Proceed as follows to replace one or both fuses:
1. Remove the fuse holders (position A) with a small screwdriver.
2. Replace the fuse.
3. Use only T-type fuses of the following characteristics:
214/288
Rear panel
- 250 Vac 10 A (5x20 mm) High breaking capacity
Turbo-V 701 Rack Controller User Manual / 87-901-032-01
