2. Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Please keep the original package in a safe place for future use.
NOTE: There are two different types of online UPS: standard and long‐run models. Please refer to the
following model table.

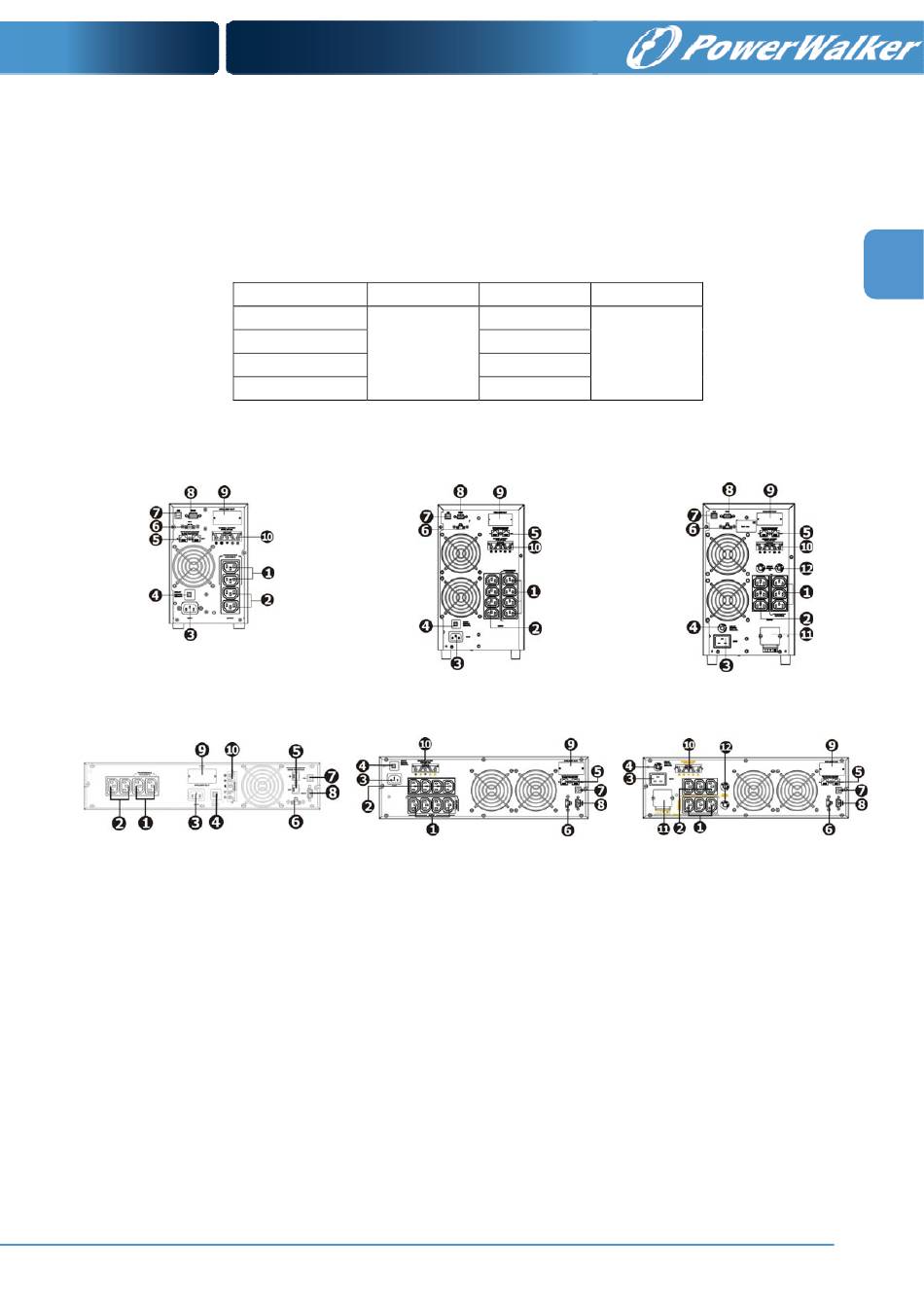

2‐1. Rear panel view
1000(L) / 1500(L) TOWER
1000(L)/1500(L) RACK
1. Programmable outlets: connect to non‐critical loads.
2. Output receptacles: connect to mission‐critical loads.
3. AC input
4. Input circuit breaker
5. Network/Fax/Modem surge protection
6. Emergency power off function connector (EPO)
7. USB communication port
8. RS‐232 communication port
9. SNMP intelligent slot
10. External battery connection (only available for L model)
11. Output terminal
12. Output circuit breaker
