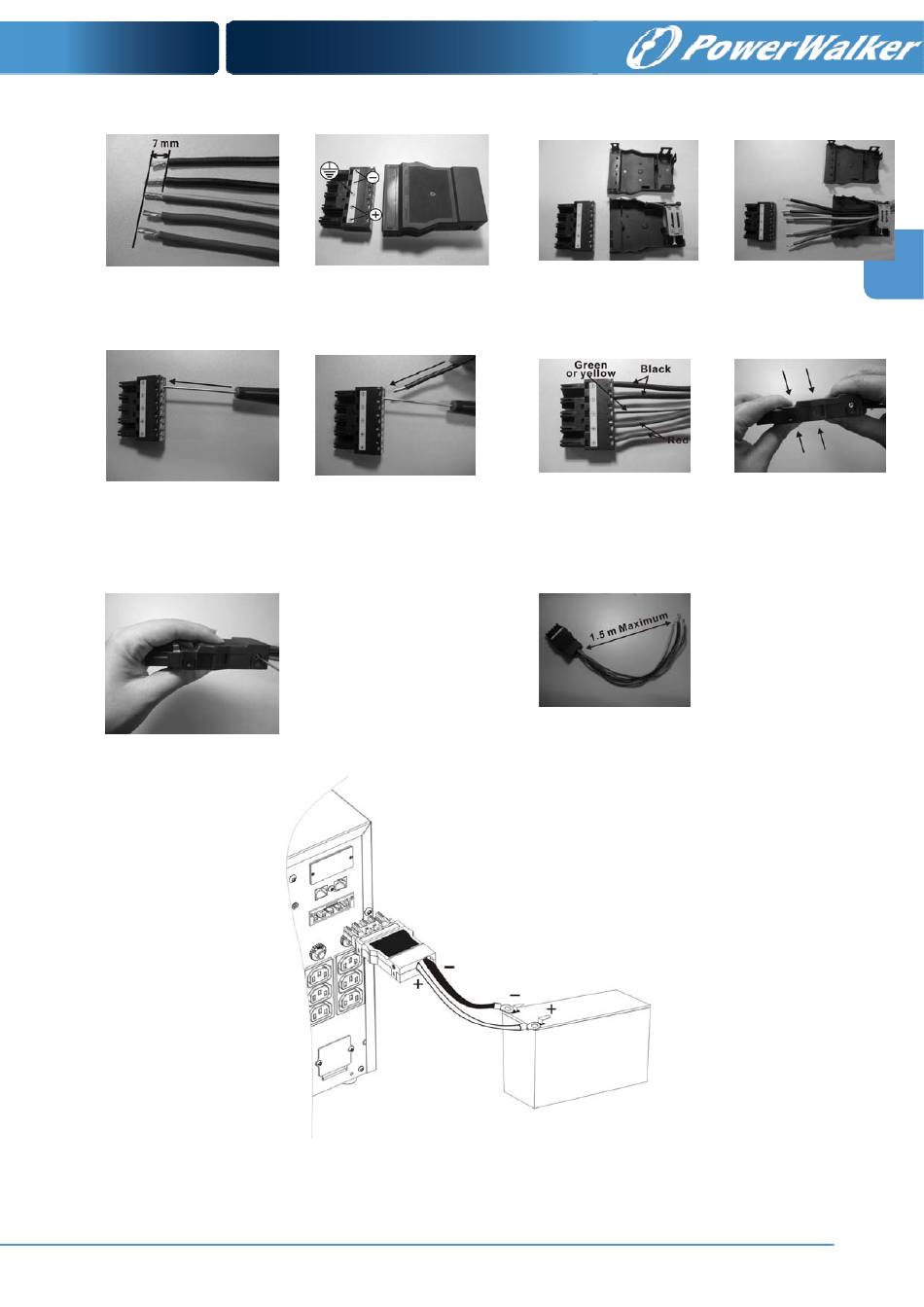

Step 8: External battery connection (for long‐run models only)
Before making external battery connection, please follow below steps to assemble battery cable.
1
Suggest using AWG12 or 3
2
mm fine‐stranded, tip
bonded copper wires.
5
There is a clamp in each
square hole of connector.
Push and hold the clamps in
connector with screwdrivers
(blade with 2.5mm).
9
Follow below chart to make external battery connection.
www.powerwalker.com
2
Supplied external battery
connector includes one
connector and one connector
housing
6
After inserting stripped wire
as far as possible, release the
clamp. Then the wire will be
perfect locked in connector.
Screw the housing to fasten
wires by screwdriver.
Page 7
3
Open the connector housing.
7
Recommend to use 2 red
wires as "+", 2 black wires as
"‐", and one green or yellow
wire as "GND".
10
4
Put copper wires in cable tie
of housing.
8
Clip the housing until latch
clicks.
Suggest using rounded
terminal for external
battery wires.
