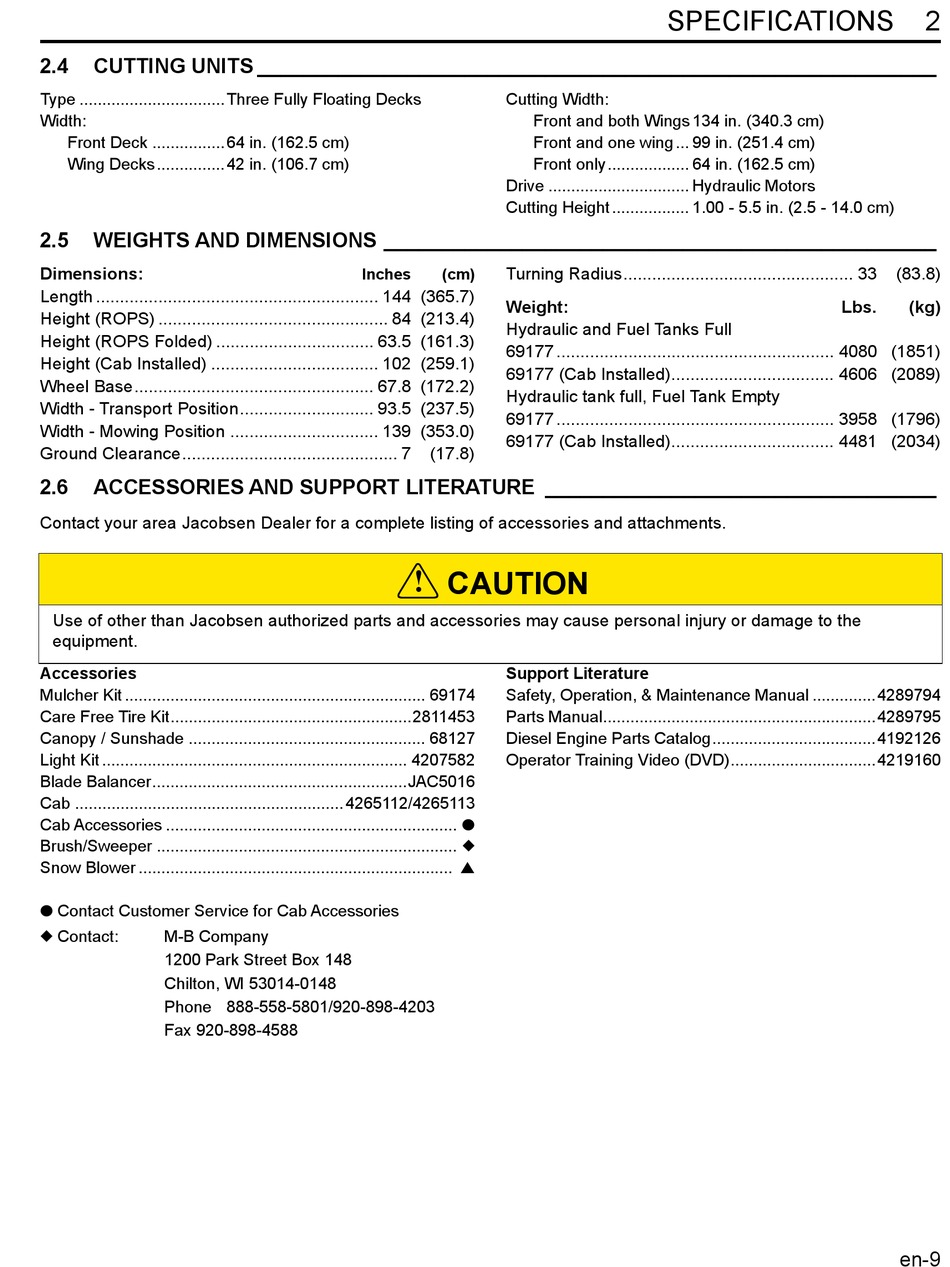

2.4

CUTTING UNITS ___________________________________________________________

Type ................................ Three Fully Floating Decks
Width:
Front Deck ................ 64 in. (162.5 cm)
Wing Decks............... 42 in. (106.7 cm)
2.5

WEIGHTS AND DIMENSIONS ________________________________________________

Dimensions:
Length ........................................................... 144 (365.7)
Height (ROPS) ................................................ 84 (213.4)
Height (ROPS Folded) ................................. 63.5 (161.3)
Height (Cab Installed) ................................... 102 (259.1)
Wheel Base.................................................. 67.8 (172.2)
Width - Transport Position............................ 93.5 (237.5)
Width - Mowing Position ............................... 139 (353.0)
Ground Clearance............................................. 7
2.6

ACCESSORIES AND SUPPORT LITERATURE __________________________________

Contact your area Jacobsen Dealer for a complete listing of accessories and attachments.
Use of other than Jacobsen authorized parts and accessories may cause personal injury or damage to the
equipment.
Accessories
Mulcher Kit .................................................................. 69174
Care Free Tire Kit.....................................................2811453
Canopy / Sunshade .................................................... 68127
Light Kit ................................................................... 4207582
Blade Balancer........................................................JAC5016
Cab ........................................................... 4265112/4265113
Cab Accessories ................................................................ 
Brush/Sweeper .................................................................. 
Snow Blower ..................................................................... 
 Contact Customer Service for Cab Accessories
 Contact: M-B Company
1200 Park Street Box 148
Chilton, WI 53014-0148
Phone 888-558-5801/920-898-4203
Fax 920-898-4588
Cutting Width:
Front and both Wings 134 in. (340.3 cm)
Front and one wing ... 99 in. (251.4 cm)
Front only.................. 64 in. (162.5 cm)
Drive ............................... Hydraulic Motors
Cutting Height ................. 1.00 - 5.5 in. (2.5 - 14.0 cm)
Turning Radius................................................ 33
Inches (cm)
Weight:
Hydraulic and Fuel Tanks Full
69177 .......................................................... 4080 (1851)
69177 (Cab Installed).................................. 4606 (2089)
Hydraulic tank full, Fuel Tank Empty
69177 .......................................................... 3958 (1796)
69177 (Cab Installed).................................. 4481 (2034)
(17.8)
!
CAUTION
Support Literature
Safety, Operation, & Maintenance Manual ..............4289794
Parts Manual............................................................4289795
Diesel Engine Parts Catalog....................................4192126
Operator Training Video (DVD)................................4219160
SPECIFICATIONS
Lbs.
2
(83.8)
(kg)
en-9
