CleanSpace Respirators
CleanSpace Respirator also recalibrates its pressure sensor any time it is left undisturbed in Standby Mode for more than 20
STEP 3 – TEST FLOW RATE ON THE POWER UNIT
This test checks that the machine is able to deliver the Manufacturer's Minimum Design Flow of 120 litres/minute.

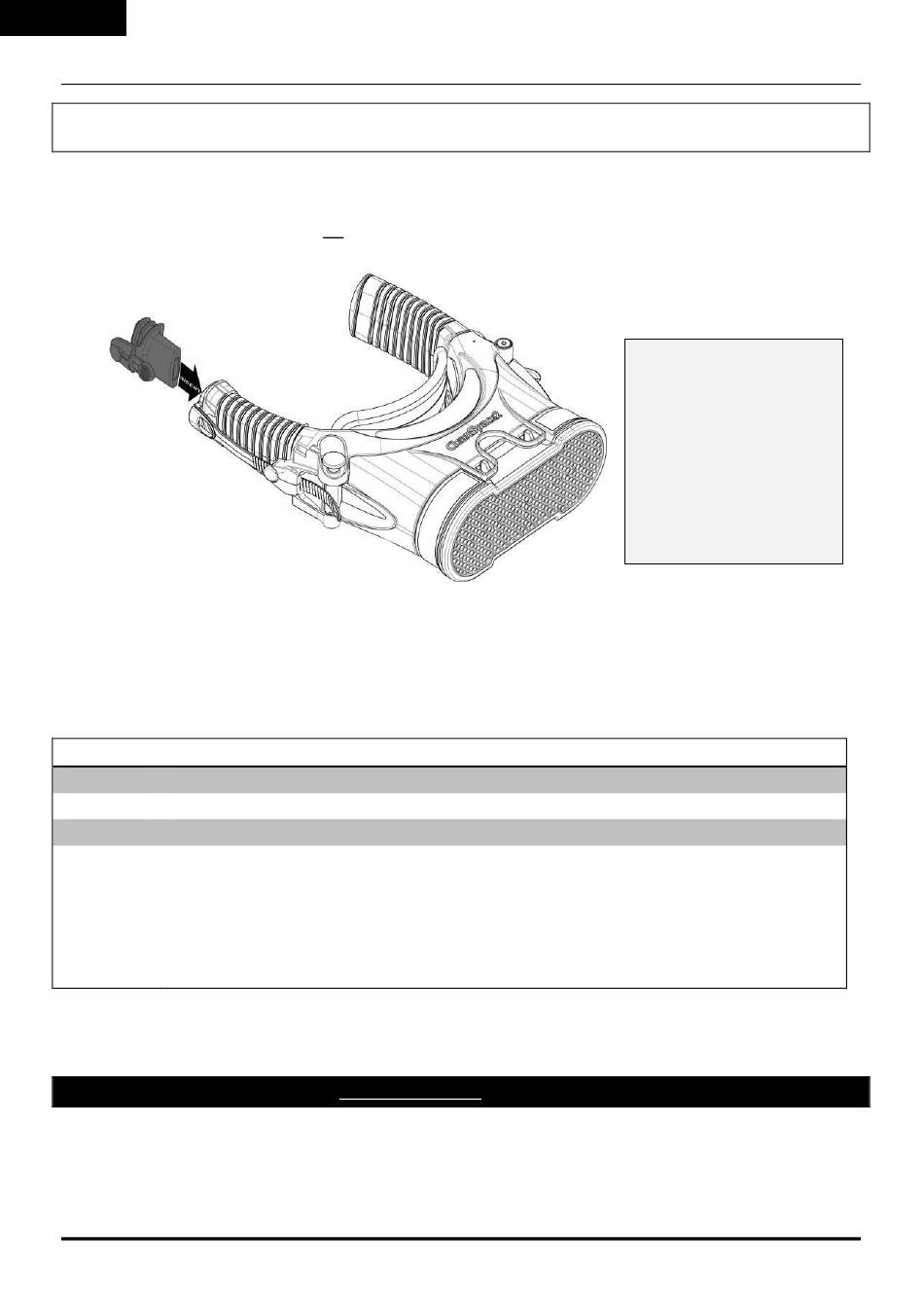

1. Fit the yellow Flow Test Cap to the left bellow. Note: The respirator shown here with Filter Adaptor fitted, but test is
the same regardless of respirator configuration.
2. Make sure nothing is blocking the Flow Test Cap or the filter inlet. Place CleanSpace Respirator flat on a table or other
support.
3. Press and release the button marked "Flow Test"
4. CleanSpace Respirator automatically runs the Flow Test. The motor will run fast and air will be discharged from the Flow
Test Cap.
5. After 2 seconds CleanSpace Respirator reports the result of the test using the LEDs on the keypad. Use the table below to
interpret the LEDs.
LIGHTS Meaning
3 LEDs: PASS (Excellent: flow >180 l/min)
2 LEDs: PASS (Good)
1 LED: PASS (Acceptable)
ALL LEDs
FAIL (Flow <120 l/min)
FLASH
Do not use CleanSpace Respirator until a new filter has been fitted and / or battery charged and the
test has been repeated with a PASS result.
Reset the respirator by pressing the Power button. Fully charge the battery and / or replace the filter.
Repeat the flow test. If filter is new and battery fully charged but CleanSpace Respirator fails the test,
contact PAFtec and do not use until it has been evaluated
6. Remove the yellow Flow Test Cap and store for later use.
STEP 4 - DON THE RESPIRATOR AND HALF MASK
NOTE: Please read STEP 4 all the way through before beginning to don CleanSpace PAPR
Locate your blower, mask, neck support and harness. Make sure the mask and neck support are of the size that you used for
your last successful quantitative fit test. These sizes should be recorded in this manual (see Section 8 above).
seconds.
10
USER INSTRUCTIONS
To avoid unnecessary filter
changes, it is important to fit
the Flow Test Cap to the
LEFT bellow.
No air flows out of the right
bellow. Fitting the Flow Test
Cap to the right bellow will
result a FAIL result, even if
the filter is clean and battery
fully charged.
