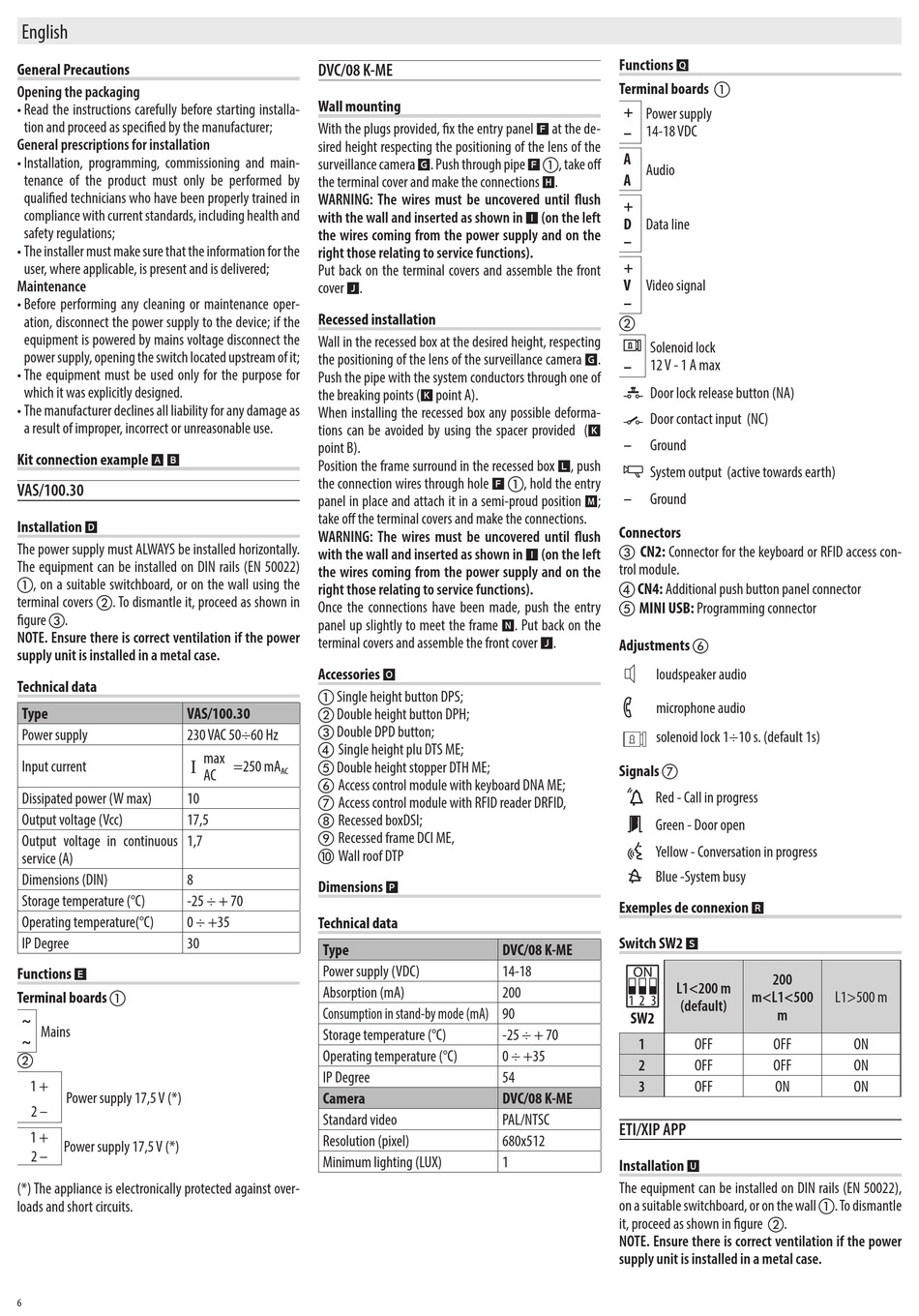

English
General Precautions
Opening the packaging
• Read the instructions carefully before starting installa-
tion and proceed as specified by the manufacturer;
General prescriptions for installation
• Installation, programming, commissioning and main-
tenance of the product must only be performed by
qualified technicians who have been properly trained in
compliance with current standards, including health and
safety regulations;
• The installer must make sure that the information for the
user, where applicable, is present and is delivered;
Maintenance
• Before performing any cleaning or maintenance oper-
ation, disconnect the power supply to the device; if the
equipment is powered by mains voltage disconnect the
power supply, opening the switch located upstream of it;
• The equipment must be used only for the purpose for
which it was explicitly designed.
• The manufacturer declines all liability for any damage as
a result of improper, incorrect or unreasonable use.
Kit connection example
A B
VAS/100.30
Installation
D
The power supply must ALWAYS be installed horizontally.
The equipment can be installed on DIN rails (EN 50022)
a, on a suitable switchboard, or on the wall using the
terminal covers . To dismantle it, proceed as shown in
figure c.
NOTE. Ensure there is correct ventilation if the power
supply unit is installed in a metal case.
Technical data
Type
VAS/100.30
Power supply
230 VAC 50÷60 Hz
Input current
Dissipated power (W max)
10
Output voltage (Vcc)
17,5
Output voltage in continuous
1,7
service (A)
Dimensions (DIN)
8
Storage temperature (°C)
-25 ÷ + 70
Operating temperature(°C)
0 ÷ +35
IP Degree
30
Functions
E
Terminal boards a
~
Mains
~
1 +
Power supply 17,5 V (*)
2 –
1 +
Power supply 17,5 V (*)
2 –
(*) The appliance is electronically protected against over-
loads and short circuits.
6
DVC/08 K-ME
Wall mounting
With the plugs provided, fix the entry panel
sired height respecting the positioning of the lens of the
surveillance camera
the terminal cover and make the connections
WARNING: The wires must be uncovered until flush
with the wall and inserted as shown in
the wires coming from the power supply and on the
right those relating to service functions).
Put back on the terminal covers and assemble the front
cover
.
J
Recessed installation
Wall in the recessed box at the desired height, respecting
the positioning of the lens of the surveillance camera
Push the pipe with the system conductors through one of
the breaking points (
When installing the recessed box any possible deforma-
tions can be avoided by using the spacer provided (
point B).
Position the frame surround in the recessed box
the connection wires through hole
panel in place and attach it in a semi-proud position
take off the terminal covers and make the connections.
WARNING: The wires must be uncovered until flush
with the wall and inserted as shown in
the wires coming from the power supply and on the
right those relating to service functions).
Once the connections have been made, push the entry
panel up slightly to meet the frame
terminal covers and assemble the front cover
Accessories
a Single height button DPS;
Double height button DPH;
c Double DPD button;
d Single height plu DTS ME;
I
max
=250 mA
e Double height stopper DTH ME;
AC
AC
f Access control module with keyboard DNA ME;
g Access control module with RFID reader DRFID,
h Recessed boxDSI;
i Recessed frame DCI ME,
Wall roof DTP
Dimensions
Technical data
Type
Power supply (VDC)
Absorption (mA)
Consumption in stand-by mode (mA) 90
Storage temperature (°C)
Operating temperature (°C)
IP Degree
Camera
Standard video
Resolution (pixel)
Minimum lighting (LUX)
at the de-
F
. Push through pipe
G
F
a, take off
.
H
(on the left
I
point A).
K
F
a, hold the entry
(on the left
I
. Put back on the
N
.
J
O
P
DVC/08 K-ME
14-18
200
-25 ÷ + 70
0 ÷ +35
54
DVC/08 K-ME
PAL/NTSC
680x512
1
Functions
Q
Terminal boards a
+ Power supply
14-18 VDC
–
A
Audio
A
+
D
Data line
–
+
V
Video signal
–
Solenoid lock
.
G
12 V - 1 A max
–
Door lock release button (NA)
Door contact input (NC)
K
Ground
–
, push
L
System output (active towards earth)
Ground
–
;
M
Connectors
c CN2: Connector for the keyboard or RFID access con-
trol module.
d CN4: Additional push button panel connector
e MINI USB: Programming connector
Adjustments f
loudspeaker audio
microphone audio
solenoid lock 1÷10 s. (default 1s)
Signals g
Red - Call in progress
Green - Door open
Yellow - Conversation in progress
Blue -System busy
Exemples de connexion
Switch SW2
S
L1<200 m
(default)
SW2
OFF
1
OFF
2
OFF
3
ETI/XIP APP
Installation
U
The equipment can be installed on DIN rails (EN 50022),
on a suitable switchboard, or on the wall a. To dismantle
it, proceed as shown in figure .
NOTE. Ensure there is correct ventilation if the power
supply unit is installed in a metal case.
R
200
L1>500 m
m<L1<500
m
OFF
ON
OFF
ON
ON
ON
