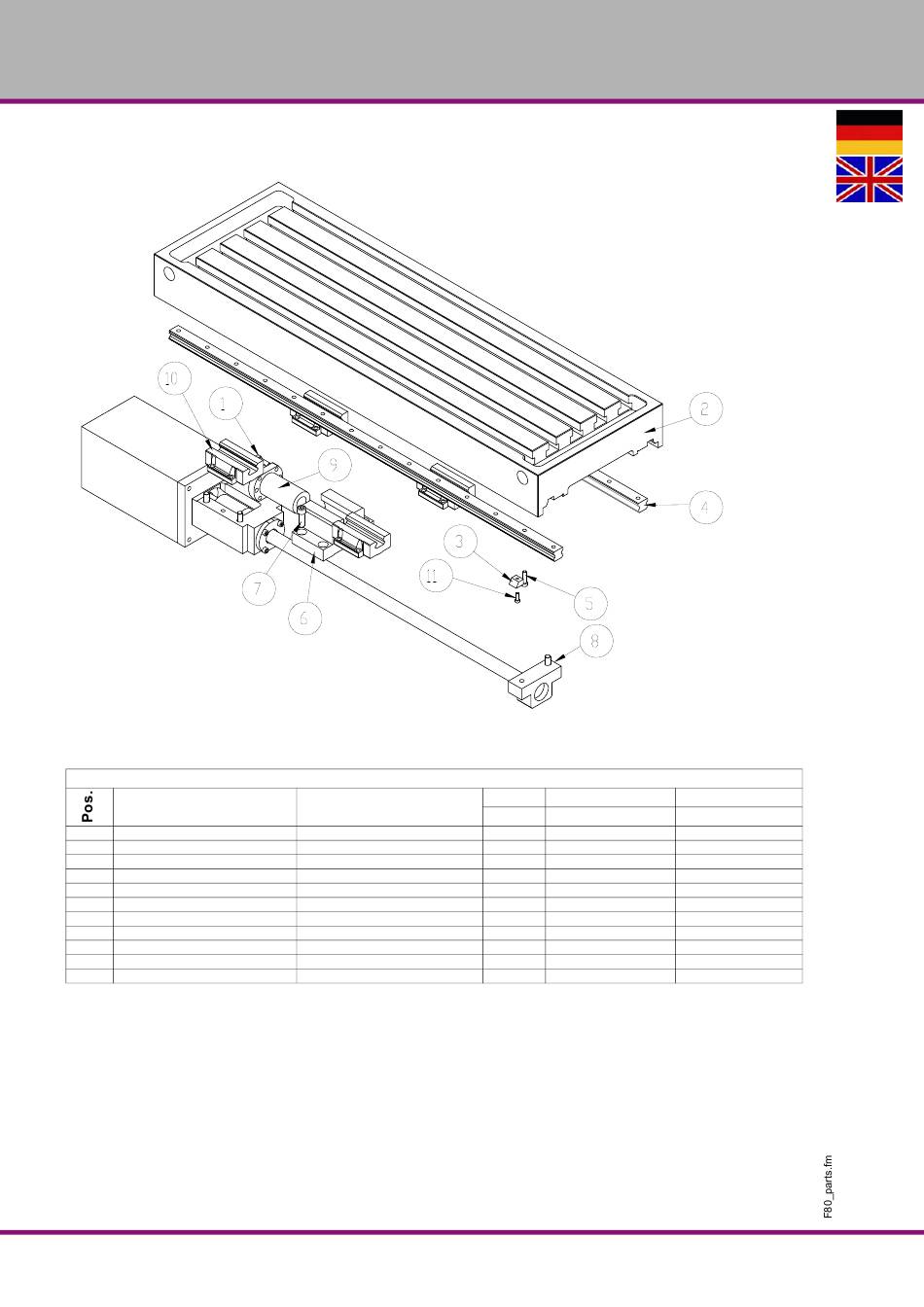

Frästisch - Milling table
12-3:
F80 milling table
Ersatzteilliste Frästisch - Spare parts list milling table

Bezeichnung

1
Innensechskantschraube
2
Frästisch
3
Platte
4
Linearführung
5
Innensechskantschraube
6
Halter
7
Innensechskantschraube
8
Halter
9
Spindelmutter
10
Schlitten Linearführung
11
Innensechskantschraube
DE | GB
F80
112
®
Description
Socket head screw
Milling table
Plate
Lineare guide
Socket head screw
Holder
Socket head screw
Holder
Spindle nut
Lineare guide slide
Socket head screw
Originalbetriebsanleitung
Menge
Grösse
Qty.
Size
6
M6x20
1
28
2
28
M5x20
1
4
M8x25
1
1
4
28
M4x12
F80 - Ersatzteile - Spare parts
Artikelnummer
Item no.
03501080302
03501080303
03501080304
03501080306
03501080308
03501080309
03501080310
Version 1.1.2 2019-05-07
