6. Commissioning, operation

6.5 SETUP settings (SETUP)

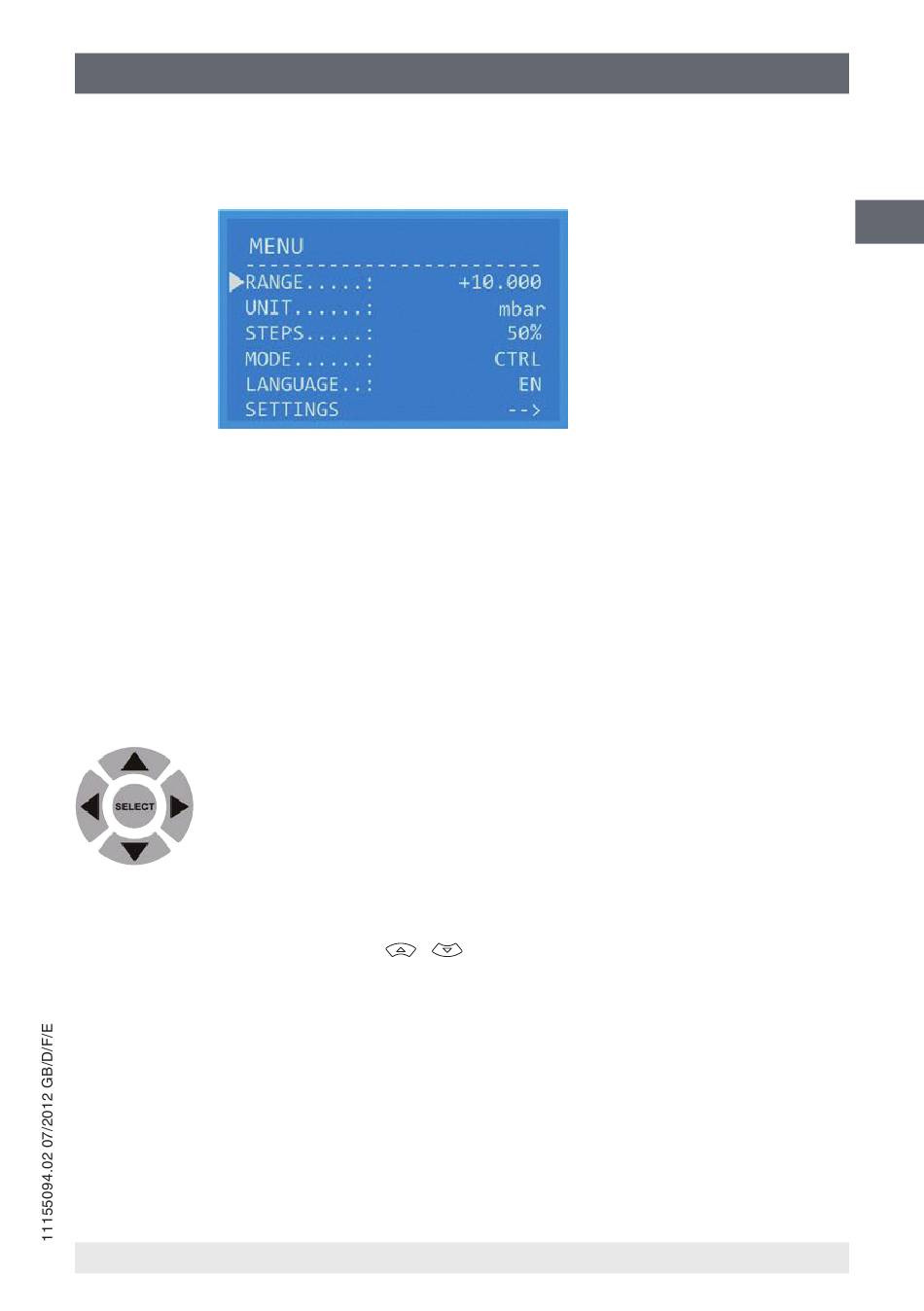

The SETUP menu items are made up of six submenus.
RANGE: Setting of the pressure range (max. 100 % of the measuring span)
■
UNIT: Selection of the pressure unit (Pa, kPa, hPa, bar, mbar, psi, inH
■
Torr)
STEPS: Setting of the step size in x %. Settable in the range 1 ... 50 %
■
MODE: Selection of the operating mode
■
Control (CTRL): Regulates to the given set point
■
Measure (MEAS): Measurement of diferential and relative pressure
■
Automatic (AUTO): Carries out a stored test routine
■
LANGUAGE: Selection of the displayed language
■
SETTINGS: Here additional instrument settings can be made
■
Navigation within the menu:
SELECT: Acts to confrm the relevant setting
Left/Right arrow: Setting of the active decimal point
Up/Down arrow: Change between the diferent submenu points.
6.5.1 The menu points
With the MENU button and with the
at the required menu point. With the SELECT button, one reaches the desired submenu.
The following items are available in the submenu:
6.5.1.1 Range
Under the RANGE menu point the controller's fnal control value can be changed for the
control.
