6. Commissioning, operation
Setting
CYCLES: Here the number of cycles to be carried out in AUTO mode will be set.
■
T START: Delay time to vent the sensor
■
T STOP: Delay time before reaching the maximum defned pressure
■
T HOLD: Hold time until a new pressure value is reached
■
T PAUSE: Delay time between two cycles
■
AUTO ZERO: Automatic zero point adjustment at the completion of each cycle
■
To exit the submenu, press the MENU button.
Operation
On leaving the menu, the calibrator will revert to 'Standby status'. All information about the
AUTO mode will be shown on the display.
Operating mode
First of ten cycles
Start
1 2 4 5 7
Next cycle
End of cycle

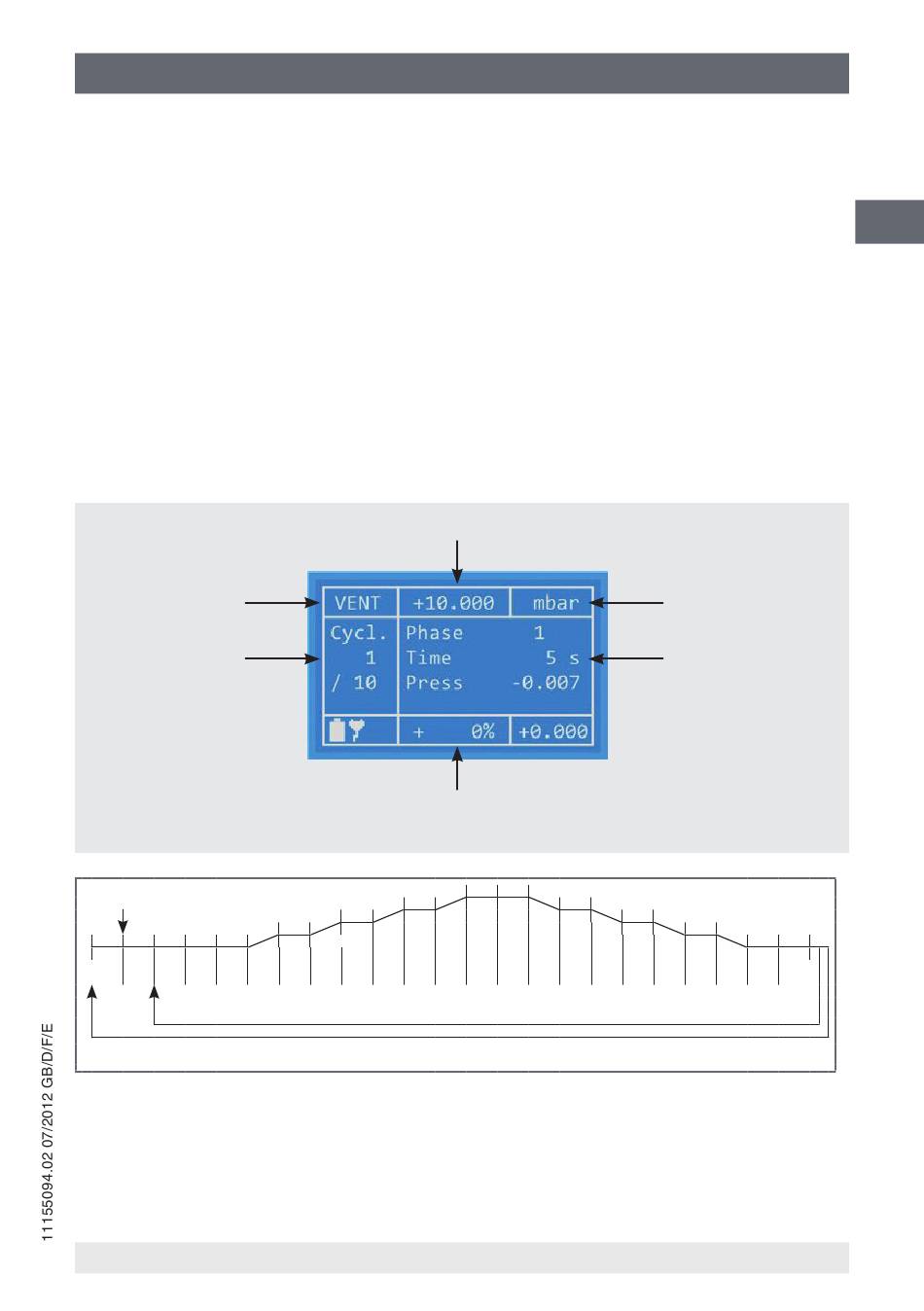

The fgure shows the fow chart for the AUTO mode. Based on the table, one will know
which cycles are being carried out and the meaning of each.
WIKA operating instructions, model CPC2000
Set pressure
percentage display of the current set
pressure
9 10 9 10 9 10 9 10 13 15 16 15 16 15 16 15 16 18
Pressure unit
Phase 1: It has been
vented (Pressure = 0)
