Operation

7. Operation
7.1

Menu structure

Proceed as follows to access the menu:
1. Press and hold the menu button for at least one second to access the
"MAIN MENU".
The "MAIN MENU" contains the following main areas: "TEMPERA-
TURES", ("TIME PROFILE"), "SETTINGS", "INFORMATION" (refer to
Illustr. 3 on page 28).
You can navigate within the "R-Tronic" menus and select the desired
functions via the menu button (refer to Illustr. 1 on page 26 (6)). You can
access all the sub-menus and functions by turning (navigating) and pressing
(confirming the selection and saving). You can press the Back button to go
back to the previous step.
Once the display has been activated, it returns to the default view
after several seconds if no additional operating steps are performed.

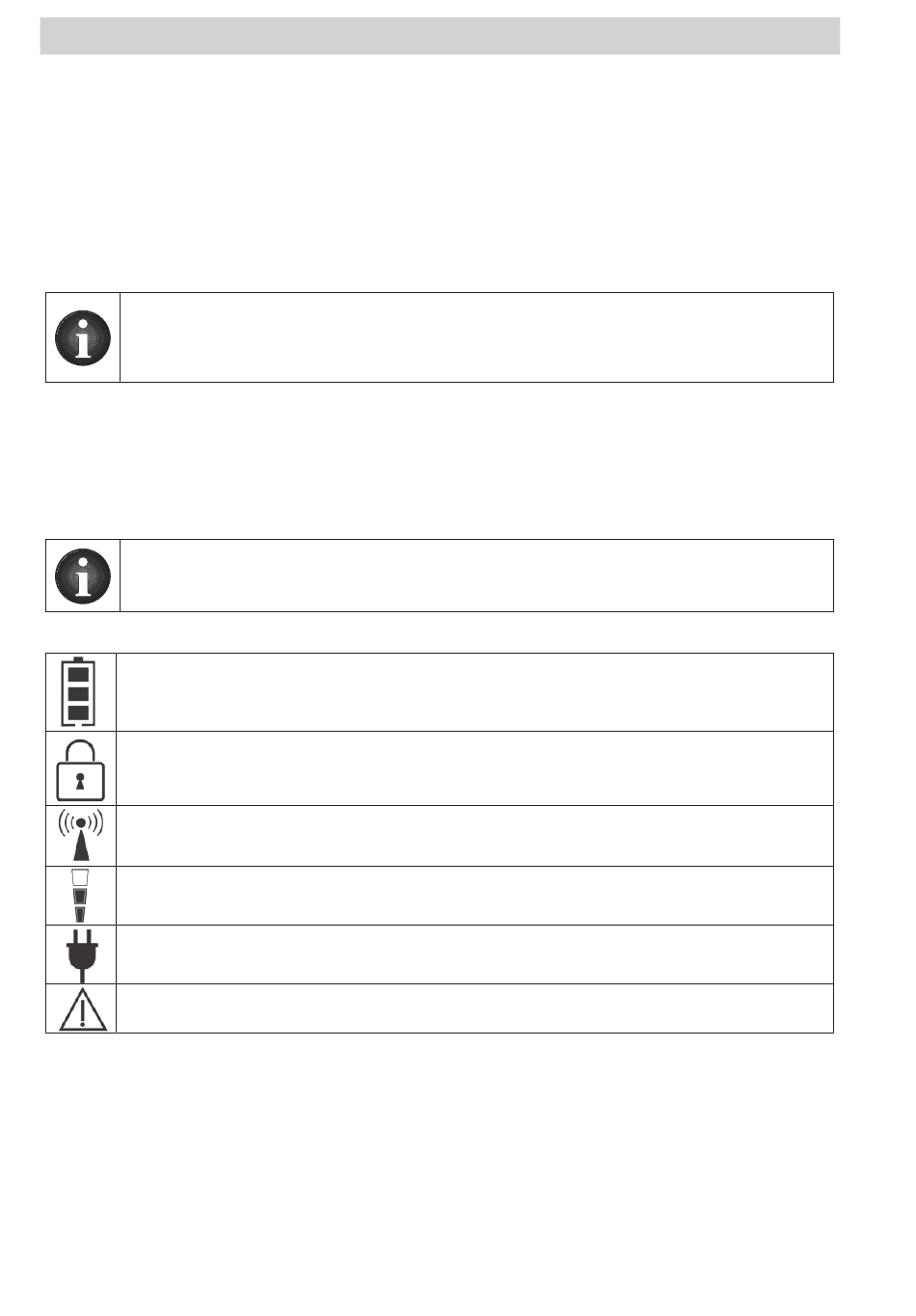

The following symbols are shown on the display of the wireless thermostat.
Battery status
Menu lock activated
Teach in telegram sent to the gateway
Fan speed
Power supplied via an external power pack
Warning symbol for information and error messages
7.2

Overview of the supported EnOcean equipment profiles (EEP)

The wireless thermostat supports a total of five EEP profiles, which, together
with a gateway, each control different and, in some cases, numerous
functions. Always ensure that only a single profile can be activated during
commissioning. The overview of user navigation controlled via the display
(refer to Illustr. 3 on page 28) shows the respective activation process for
each individual EEP profile.
"R-Tronic RTB":
