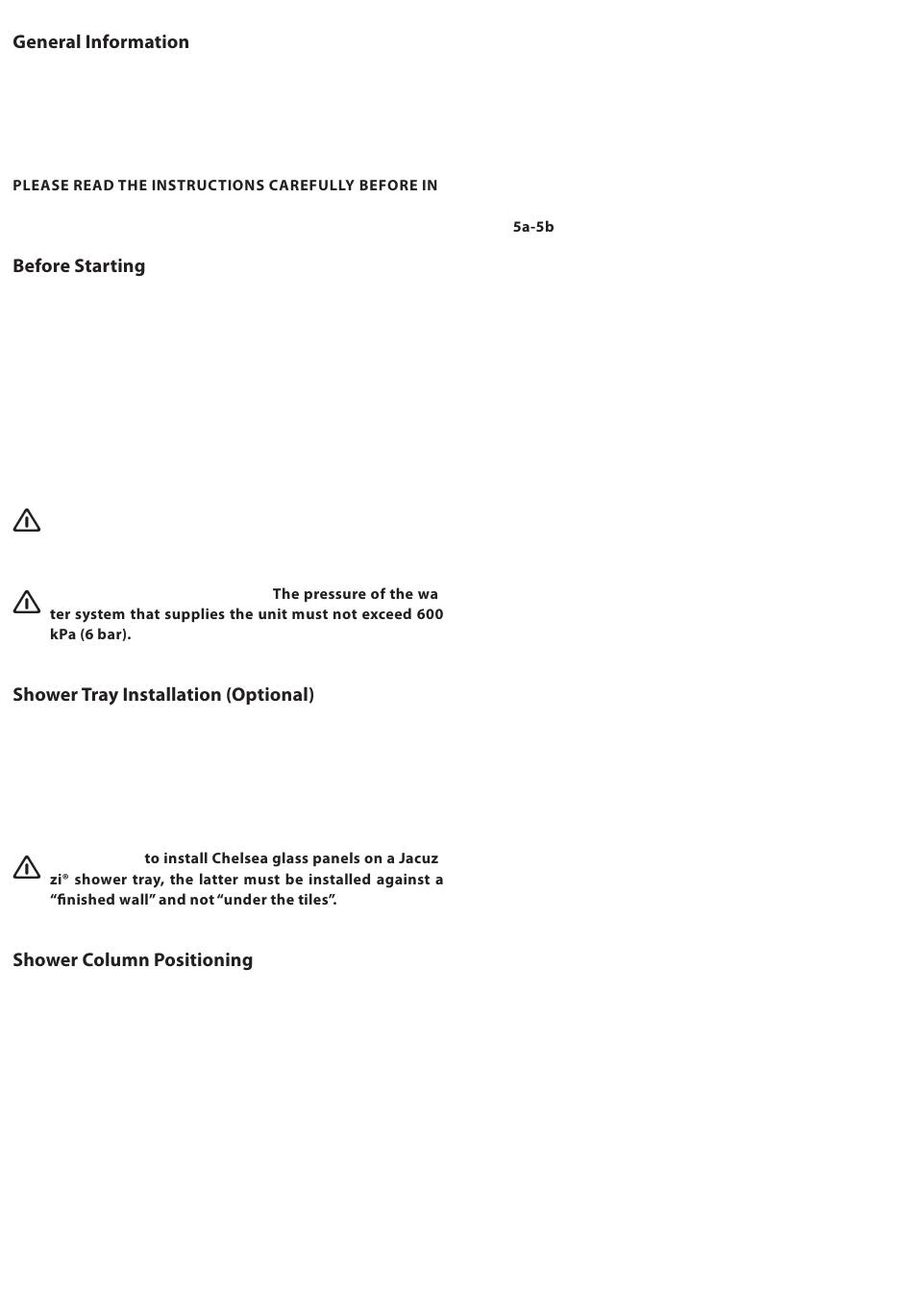

CHELSEA shower enclosures must always be installed in a corner, on
finished walls and floor (tiled) without baseboards.
CHELSEA shower enclosures can be installed on a Jacuzzi® shower
tray or on a shower tray with the same dimensions as the model
selected.
STALLING
Before carrying out installation make sure that:
The wall drain and connections to the water and electric (for
electronic models) systems are prepared.
During installation the mixer tap will need to be connected to the
water system using two high-capacity hoses (int. Ø 10 mm) 1/2"
M-F, 100 cm long (not included).
If you wish to connect the shower enclosure to an alarm circuit, a
bipolar cable must be used (see the chapter "Alarm Connection").
Balanced and sufficient water flow, as well as suitable diameter
hoses, must be guaranteed for proper operation of the shower
enclosure (please see the pre-installation instructions).
ATTENTION: (IEC 60335-1/A2)
If the shower enclosure is equipped with a Jacuzzi® tray, refer to the
instructions enclosed with the shower tray. In any case, the walls
above the shower tray must be perpendicular. Wall compensators
allow you to recover up to 10 mm. Greater distances can be cor-
rected using suitable spacers or by moving the shower tray away
from the wall.
ATTENTION:
1) Position the shower column on the shower tray accord-
(
ing to the measurements indicated.
Mark the position for the compensators.
2) Remove the column and the compensators (do not
(
throw away the screws).
Position the compensators as indicated and mark the position of
the wall fastening screws.
Glass Panel Installation
3) Mark the line for drilling for the glass panel compensa-
(
tors. Mark the positions for the holes according to the measure-
ments indicated.
Drill the holes and fasten the compensators.
-
4) Insert the glass panels indicated on the compensators.
(
(
) If you have to install the top, drill the upper profiles
according to the measurements indicated.
Note: the drilling points vary when the shower enclosure is installed
in a left or right corner.
6) Fasten the upper profiles to the glass panels.
(
For rectangular models, join the profiles with the corner bracket
indicated (detail 3).
7) Assemble the lower profiles.
(
For rectangular models, join the profiles with the corner bracket
indicated.
Then position the entire profile on the shower tray so that the
glass panels are inserted on the inside of the "t" end connector.
8) Check that:
(
- The "t" end connector is in contact with the glass panels
- The glass panels are perpendicular to the edge of the shower tray.
-
Check that they are level and adjust as indicated.
From inside the shower enclosure, apply the blocks indicated so
that the adhesive sides adhere perfectly to the glass panel and
the shower tray.
9) From inside the shower enclosure, drill the glass panel
(
profiles according the to the measurements indicated and fas-
ten them to the compensators.
Check that they are level and adjust as indicated.
10) Remove the profile and apply silicon to the lower part,
(
as shown. Then, replace it following the instructions in
fasten it temporarily using masking tape.
-
11) Remove the sliding glass panels and assemble:
(
- The handles (detail 1)
- The rollers (detail 2)
- The magnetic closing profiles (detail 3a/3b), pay careful atten-
tion to the direction they are inserted
- The upper gaskets (detail 4), pay careful attention to the direc-
tion they are inserted.
ONLY FOR RECTANGULAR MODELS
12) Based on the corner of installation, it may be neces-
(
sary to turn the roller pins so that the part indicated always faces
outwards (please see the detail).

ALL MODELS

13) Starting from the bottom, apply the gaskets shown to
(
the fixed glass panels so that the lip is facing inwards (detail 1).
Then assemble the sliding glass panels as shown (detail 2).
Starting from the bottom, apply the gaskets shown to the fixed
glass panels so that the lip is facing outwards (detail 3).
