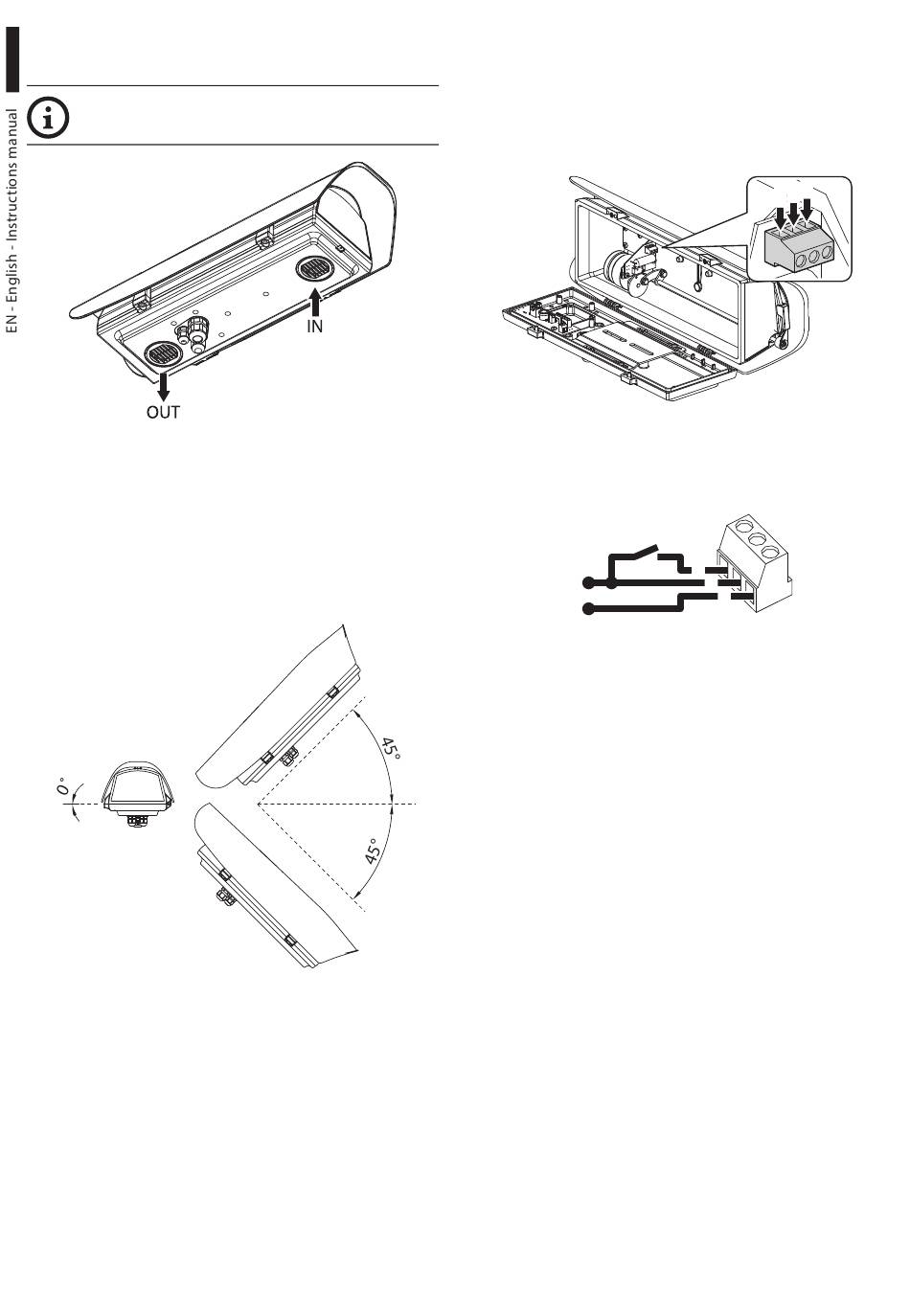

6.1.5 Installation of the version with
double filter for air renewal
During installation pay attention to the
orientation of the air inlet filter fins.
Fig. 4
Depending on the angle of inclination of the housing,
the orientation of the filter fins must prevent water
penetrating in case of rain:
To guarantee the weatherproof, install the housing
on the support following the inclination limits as
shown in the picture.
Fig. 5
Maximum tilt of the transversal axis: 0°.
Maximum tilt of the longitudinal axis: ±45°.
8
6.1.6 Installation of the version with
wiper
Open the housing as described previously (6.1.1 How
to open the housing, page 6).
Identify the terminal on the wiper board.
Fig. 6
Connect the wiper board to the power supply mains
as shown in the figure.
L
~
N
Fig. 7
Pressing the button activates the wiper. When the
button is released the wiper blade will return to the
rest position.
If you have a receiver with the Wiper control function,
connect the SW, PER and COM terminals respectively
to terminals S, P and C of the board.
Close the housing.

6.1.7 Desiccant bag

Take the dessicant salt bag out of its pack and insert it
into the product.
P
S
C
P
S
C
MNVCHOV32_1351_EN
