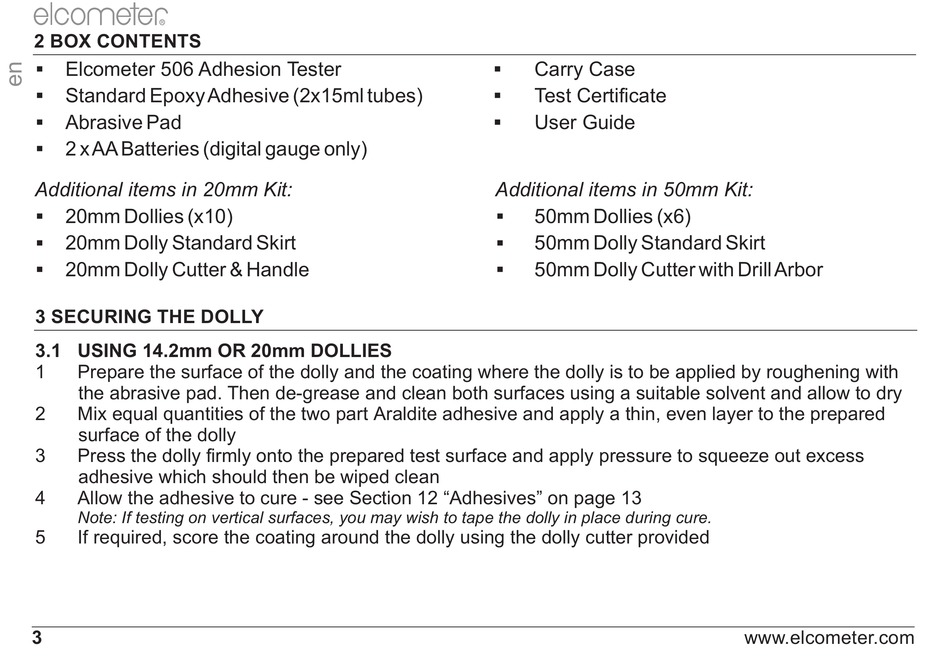

2 BOX CONTENTS

Elcometer 506 Adhesion Tester
<
Standard Epoxy Adhesive (2x15ml tubes)
<
Abrasive Pad
<
2 x AA Batteries (digital gauge only)
<
Additional items in 20mm Kit:
20mm Dollies (x10)
<
20mm Dolly Standard Skirt
<
20mm Dolly Cutter & Handle
<

3 SECURING THE DOLLY

3.1 USING 14.2mm OR 20mm DOLLIES
1 Prepare the surface of the dolly and the coating where the dolly is to be applied by roughening with
the abrasive pad. Then de-grease and clean both surfaces using a suitable solvent and allow to dry
2 Mix equal quantities of the two part Araldite adhesive and apply a thin, even layer to the prepared
surface of the dolly
3 Press the dolly firmly onto the prepared test surface and apply pressure to squeeze out excess
adhesive which should then be wiped clean
4 Allow the adhesive to cure - see Section 12 "Adhesives" on page 13
Note: If testing on vertical surfaces, you may wish to tape the dolly in place during cure.
5 If required, score the coating around the dolly using the dolly cutter provided
3
Carry Case
<
Test Certificate
<
User Guide
<
Additional items in 50mm Kit:
50mm Dollies (x6)
<
50mm Dolly Standard Skirt
<
50mm Dolly Cutter with Drill Arbor
<
