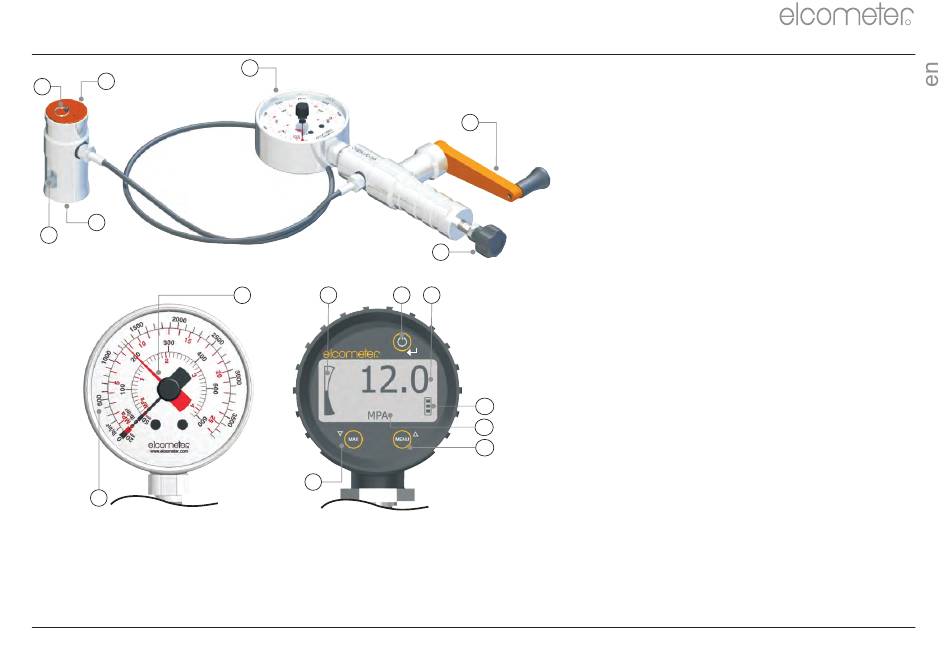

1 GAUGE OVERVIEW

2
1
6
7
a
†
The Standard Actuator Skirt for 20mm dollies is illustrated above. Skirts for other dolly sizes and thin substrates are also available - see Section 11
"Dolly Skirts" on page 12 for details.
www.elcometer.com
3
c
d
b
i
1 Lanyard Ring
2 Actuator
4 3 Pressure Gauge
(Analogue or Digital)
4 Crank Handle
5 Coarse Adjustment Screw
6 Actuator Skirt
7 Quick Connect Coupling
5
Analogue Pressure Gauge
e
a) Dual Scale (MPa & PSI) Dial for
20mm (outer scale) & 50mm (inner
scale) Dollies
b) Drag Max Indicator (Red)
Digital Pressure Gauge
f
g
c) Pressure Range Bar Graph
h
d) On/Off & Enter Key
e) Adhesion Reading
f) Battery Life Indicator
g) Units of Measurement (MPA or PSI)
h) Menu & Up Key
i) Zero/Max Hold & Down Key
†
