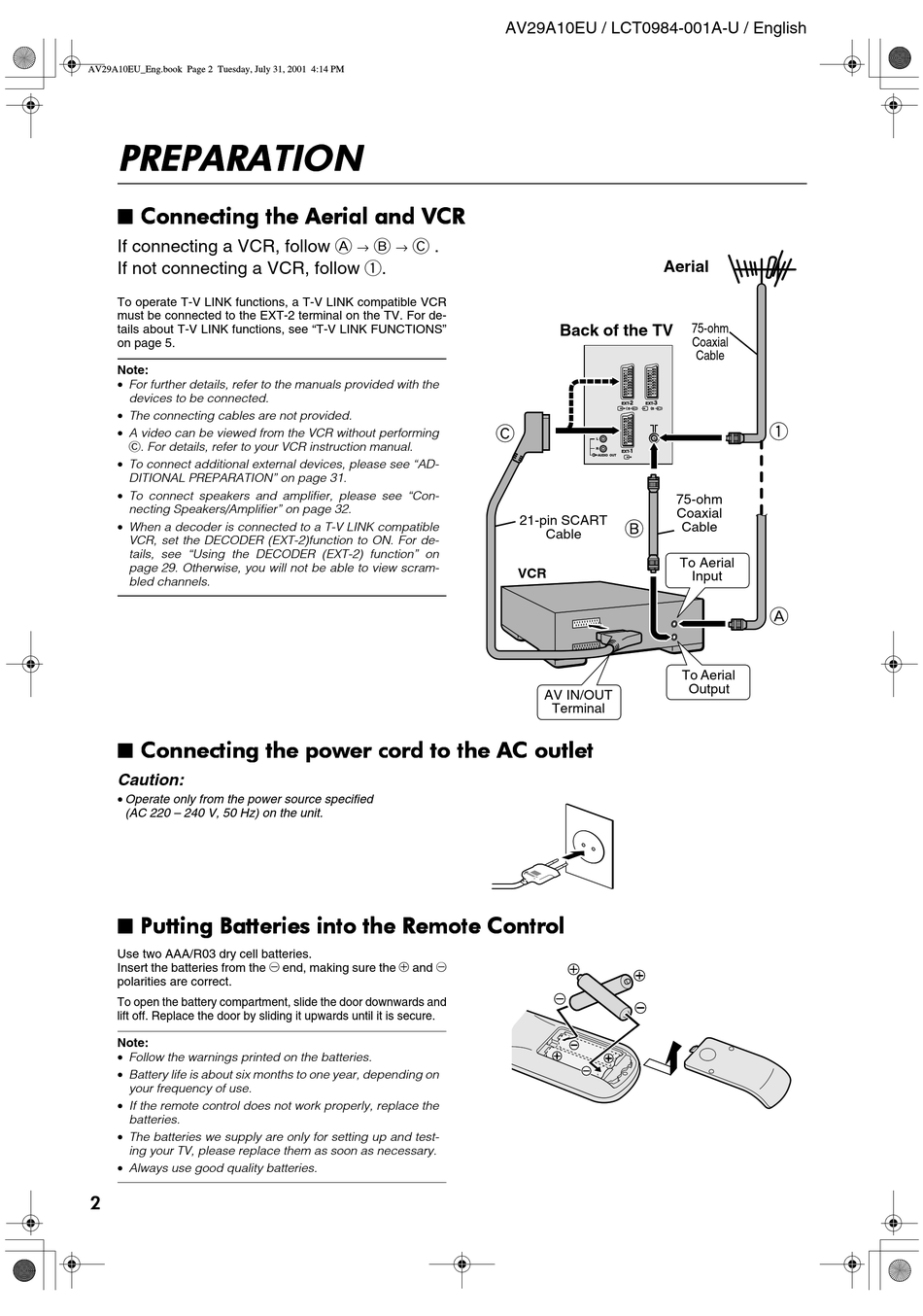

PREPARATION

PREPARATION PREPARATION PREPARATION
Connecting the Aerial and VCR Connecting the Aerial and VCR
Connecting the Aerial and VCR Connecting the Aerial and VCR
I I I I
If connecting a VCR, follow A
If not connecting a VCR, follow 1.
To operate T-V LINK functions, a T-V LINK compatible VCR
must be connected to the EXT-2 terminal on the TV. For de-
tails about T-V LINK functions, see "T-V LINK FUNCTIONS"
on page 5.
Note:
• For further details, refer to the manuals provided with the
devices to be connected.
• The connecting cables are not provided.
• A video can be viewed from the VCR without performing
C. For details, refer to your VCR instruction manual.
• To connect additional external devices, please see "AD-
DITIONAL PREPARATION" on page 31.
• To connect speakers and amplifier, please see "Con-
necting Speakers/Amplifier" on page 32.
• When a decoder is connected to a T-V LINK compatible
VCR, set the DECODER (EXT-2)function to ON. For de-
tails, see "Using the DECODER (EXT-2) function" on
page 29. Otherwise, you will not be able to view scram-
bled channels.
Connecting the power cord to the AC outlet Connecting the power cord to the AC outlet Connecting the power cord to the AC outlet Connecting the power cord to the AC outlet
I I I I
Caution:
• Operate only from the power source specified
(AC 220 – 240 V, 50 Hz) on the unit.
Putting Batteries into the Remote Control Putting Batteries into the Remote Control Putting Batteries into the Remote Control Putting Batteries into the Remote Control
I I I I
Use two AAA/R03 dry cell batteries.
Insert the batteries from the - end, making sure the + and -
polarities are correct.
To open the battery compartment, slide the door downwards and
lift off. Replace the door by sliding it upwards until it is secure.
Note:
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on
your frequency of use.
• If the remote control does not work properly, replace the
batteries.
• The batteries we supply are only for setting up and test-
ing your TV, please replace them as soon as necessary.
• Always use good quality batteries.
2
AV29A10EU / LCT0984-001A-U / English
B C .
→ →
21-pin SCART
VCR
Aerial
75-ohm
Back of the TV
Coaxial
Cable
2 3
EXT- EXT-
S S
L
R
1
EXT-
AUDIO OUT
75-ohm
Coaxial
Cable
Cable
To Aerial
Input
To Aerial
Output
AV IN/OUT
Terminal
